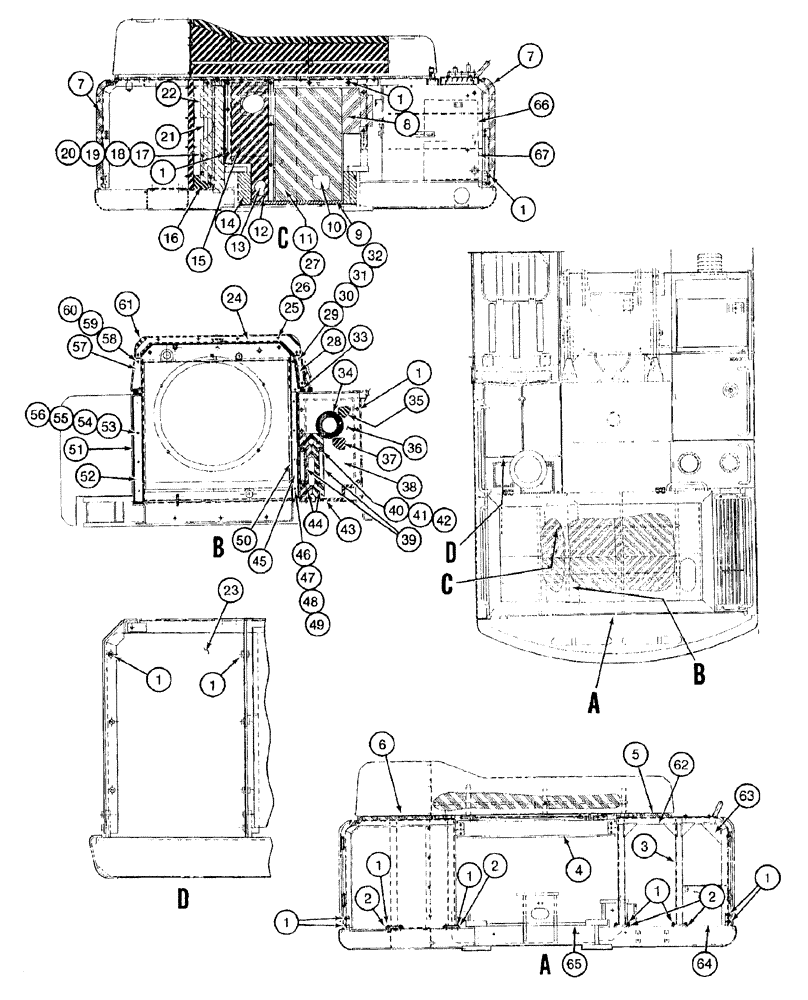

Запчасти Case 9050B (9-018) - UPPER STRUCTURE, COVERS AND INSULATION, P.I.N. EAC0501122 THRU EAC0501195 (09) - CHASSIS/ATTACHMENTS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

133шт.

2

162381A1

SHIM

plate

4шт.

3

173128A1

FRAME

upper structure, right-hand rear

1шт.

4

173126A1

FRAME

upper structure

1шт.

5

173149A1

FILLING STRIP

weather, rubber

1шт.

6

173148A1

FILLING STRIP

weather, rubber

2шт.

7

173165A1

FILLING STRIP

weather, rubber

2шт.

8

165120A1

VALVE

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

8

173279A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

9

165119A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

10

173142A1

COVER

upper structure

1шт.

11

165121A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

11

173278A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

12

173143A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

12

173274A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

13

173144A1

COVER

upper structure

1шт.

14

165118A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

15

173147A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

15

173275A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

16

173145A1

FILLING STRIP

weather, rubber

1шт.

17

173454A1

RETAINER

insulation

1шт.

18

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

19

892-11008

LOCK WASHER,8mm ID

2шт.

21

173146A1

COVER

upper structure

1шт.

22

165122A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

22

173692A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

23

173137A1

COVER

upper structure

1шт.

24

173173A1

RETAINER

insulation

1шт.

26

892-11008

LOCK WASHER,8mm ID

6шт.

28

173183A1

RETAINER

insulation, Serial Range: EAC0501122-EAC0501125

1шт.

28

173177A1

RETAINER

insulation, Serial Range: EAC0501126-EAC0501195

1шт.

29

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

30

171034A1

SPACER

special, Serial Range: EAC0501122-EAC0501125

2шт.

31

892-11012

LOCK WASHER,M12

2шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

33

173135A1

FILLING STRIP

weather, rubber

1шт.

34

157911A1

SEALING STRIP

weather, rubber

1шт.

35

173167A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

35

173271A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

36

173168A1

COVER

upper structure

1шт.

37

173170A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

37

173270A1

NOISE PROTECTION

INSULATION - acoustic5, Serial Range: EAC0501126-EAC0501195

1шт.

38

173169A1

COVER

upper structure

1шт.

39

165123A1

RETAINER

seal

2шт.

40

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

41

892-11012

LOCK WASHER,M12

4шт.

42

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

43

165124A1

FILLING STRIP

weather, rubber

1шт.

44

173171A1

FILLING STRIP

weather, rubber

2шт.

45

173181A1

RETAINER

insulation

1шт.

46

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

4шт.

47

173178A1

SPACER

special

4шт.

48

892-11008

LOCK WASHER,8mm ID

4шт.

50

173174A1

FILLING STRIP

weather, rubber

1шт.

51

173172A1

FILLING STRIP

weather, rubber

1шт.

52

173136A1

RETAINER

insulation

1шт.

53

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

4шт.

54

173178A1

SPACER

special

4шт.

55

892-11008

LOCK WASHER,8mm ID

4шт.

57

173179A1

RETAINER

insulation

1шт.

59

892-11008

LOCK WASHER,8mm ID

2шт.

61

173180A1

FILLING STRIP

weather, rubber, Serial Range: EAC0501126-EAC0501162

1шт.

61

173724A1

SEAL

STRIP - weather, rubber, Serial Range: EAC0501163-EAC0501195

1шт.

62

173285A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

63

173283A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

64

173284A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

65

173290A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

66

173288A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

67

173289A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

58

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

56

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

60

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
