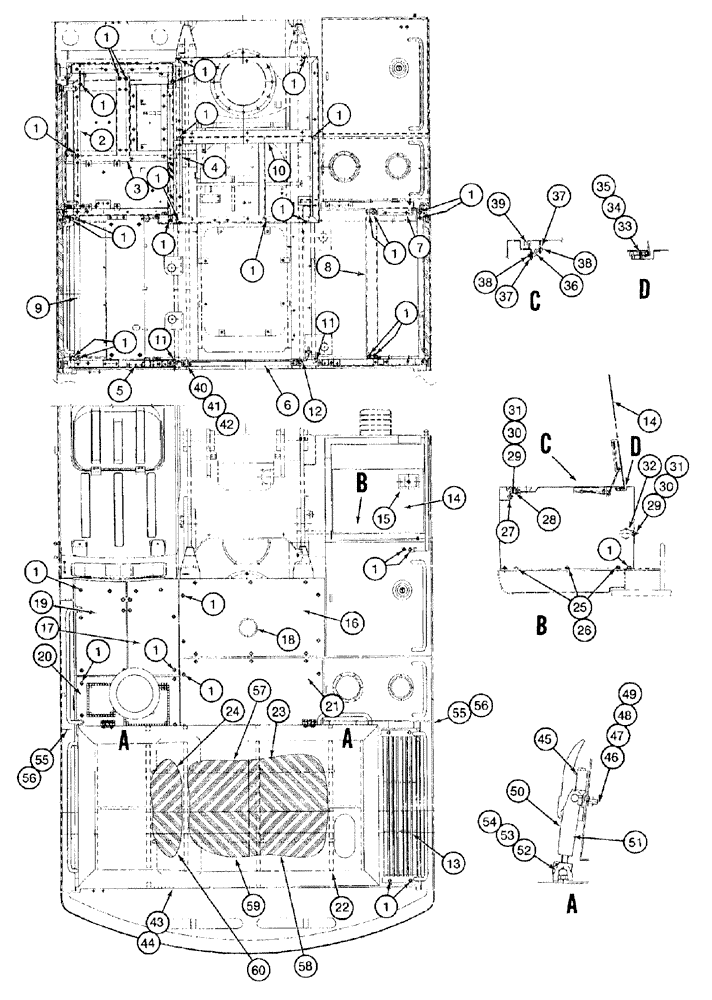

Запчасти Case 9050B (9-014) - UPPER STRUCTURE, FRAMES,COVERS AND INSULATION, P.I.N. EAC0501122 THRU EAC0501195 (09) - CHASSIS/ATTACHMENTS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

133шт.

2

173122A1

FRAME

upper structure, left-hand

1шт.

3

173123A1

FRAME

upper structure, left-hand front, Serial Range: EAC0501122-EAC0501125

1шт.

3

173690A1

FRAME

upper structure, left-hand front, Serial Range: EAC0501126-EAC0501195

1шт.

4

173124A1

FRAME

upper structure, center

1шт.

5

173125A1

FRAME

upper structure, left-hand rear, Serial Range: EAC0501122-EAC0501162

1шт.

5

173726A1

FRAME

upper structure, left-hand rear, Serial Range: EAC0501163-EAC0501195

1шт.

6

173126A1

FRAME

upper structure

1шт.

7

173127A1

FRAME

upper structure, right-hand front

1шт.

8

173130A1

FRAME

upper structure, right-hand center

1шт.

9

173160A1

FRAME

upper structure, left-hand center, Serial Range: EAC0501122-EAC0501162

1шт.

9

173727A1

FRAME

upper structure, left-hand center, Serial Range: EAC0501163-EAC0501195

1шт.

10

173129A1

FRAME

upper structure, center

1шт.

11

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

special, if used

4шт.

12

173494A1

SPRING

torsional bar, Serial Range: EAC0501122-EAC0501125

1шт.

12

170358A1

BAR

torsion, Serial Range: EAC0501126-EAC0501195

1шт.

13

173141A1

FRAME

upper structure, right-hand

1шт.

14

173156A1

DOOR

COVER - storage box

1шт.

15

162434A1

LOCK

door, if used

1шт.

16

173132A1

COVER

upper structure

1шт.

17

173133A1

COVER

upper structure

1шт.

18

152804A1

GROMMET

rubber, if used

1шт.

19

173134A1

COVER

upper structure

1шт.

20

173176A1

COVER

upper structure, Serial Range: EAC0501122-EAC0501125

1шт.

20

173691A1

COVER

upper structure EAC0501126 to EAC0501195

1шт.

21

173131A1

COVER

upper structure

1шт.

22

173140A1

HOOD

engine, Includes: Ref. 22A

1шт.

22a

152819A1

HINGE

hood, not shown

2шт.

23

173293A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

24

173294A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

25

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

3шт.

26

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

3шт.

27

159115A1

ADJUSTING PLATE

SHIM - plate

2шт.

28

173166A1

BRACKET

cover

1шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

30

892-11010

LOCK WASHER,M10

6шт.

32

152772A1

HOLDER

grease gun

2шт.

33

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

4шт.

34

892-11006

LOCK WASHER,M6

4шт.

35

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

36

159119A1

STAY

SUPPORT - cover, storage box

1шт.

38

732-2020

COTTER PIN,M2 x 20

2 x 20 mm

2шт.

39

165125A1

CUSHION

STRIP - weather, rubber, Serial Range: EAC0501122-EAC0501162

1шт.

39

173725A1

ORNAMENTAL STRIP

weather, rubber, Serial Range: EAC0501163-EAC0501195

1шт.

40

150928A1

BRACKET

mounting, Serial Range: EAC0501122-EAC0501125

2шт.

40

173676A1

BRACKET

mounting, Serial Range: EAC0501126-EAC0501195

3шт.

42

892-11010

LOCK WASHER,M10

4шт.

43

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

9шт.

44

150811A1

WASHER

flat, special, 12 mm

9шт.

45

150785A1

STOP LOCK

door assembly, hood

2шт.

47

892-11008

LOCK WASHER,8mm ID

4шт.

49

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

50

151356A1

LOCK ASSY

LATCH - hood, right-hand side, with key

1шт.

51

151361A1

HANDLE

LATCH - hood, left-hand side, without key

1шт.

53

892-11008

LOCK WASHER,8mm ID

4шт.

55

159091A1

STOP

rubber

3шт.

57

173297A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

58

173292A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

59

173296A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

60

173295A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

46

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

52

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

41

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

56

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

48

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

54

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
