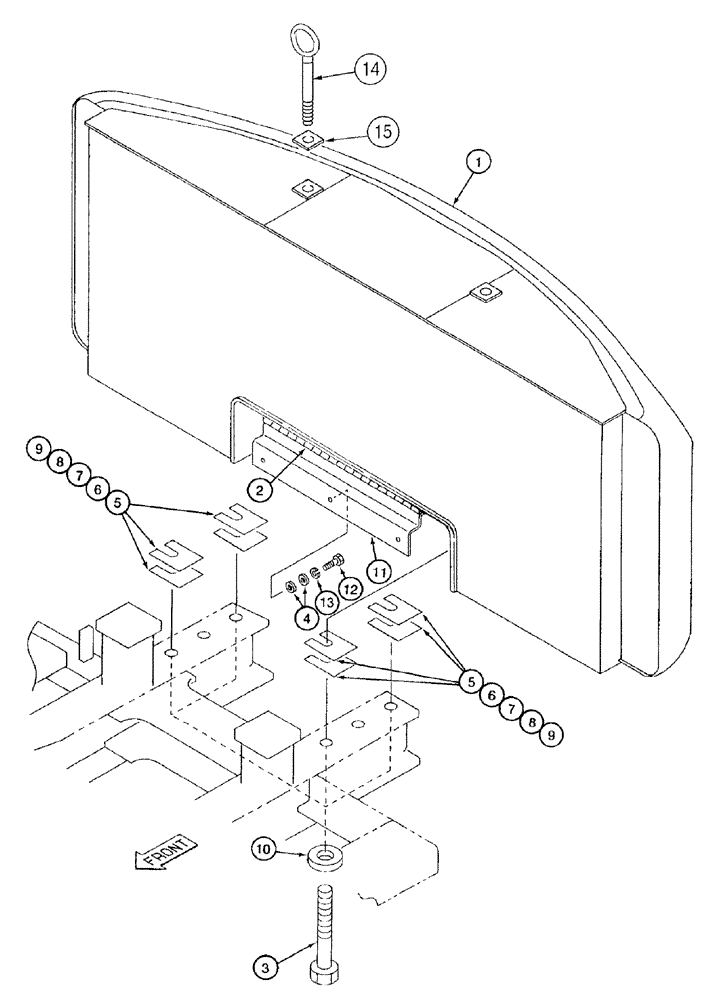

Запчасти Case 9050B (9-012) - COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

173683A1

WEIGHT PACKAGE

COUNTERWEIGHT - rear, 6048 kg (13,230 Ibs), models without Timber King, was 173039A1

1шт.

1

173755A1

WEIGHT

COUNTERWEIGHT - rear, 8410 kg (18,502 Ibs), models with Timber King

1шт.

2

162584A1

NOISE PROTECTION

INSULATION - acoustic, if used

1шт.

3

173238A1

BOLT

hex, special

4шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

162585A1

ADJUSTING PLATE

SHIM - counterweight, 0.77 mm (.03 inch) thick

1шт.

6

162586A1

ADJUSTING PLATE

SHIM - counterweight, 1.27 mm (.05 inch) thick

1шт.

7

162587A1

ADJUSTING PLATE

SHIM - counterweight, 2.29 mm (.09 inch) thick

1шт.

8

162588A1

ADJUSTING PLATE

SHIM - counterweight, 4.58 mm (.18 inch) thick

1шт.

9

162589A1

ADJUSTING PLATE

SHIM - counterweight, 6.35 mm (.25 inch) thick

1шт.

10

173233A1

WASHER

high strength, special

4шт.

11

162590A1

BRACKET

counterweight mounting, if used

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

3шт.

13

892-11012

LOCK WASHER,M12

3шт.

14

173684A1

EYEBOLT

BOLT, EYE type, if used

2шт.

15

157670A1

PLUG

rubber, if used

2шт.
