(9-010) - TURNTABLE ACCESS COVERS

Запчасти Case 9050B (9-010) - TURNTABLE ACCESS COVERS (09) - CHASSIS/ATTACHMENTS

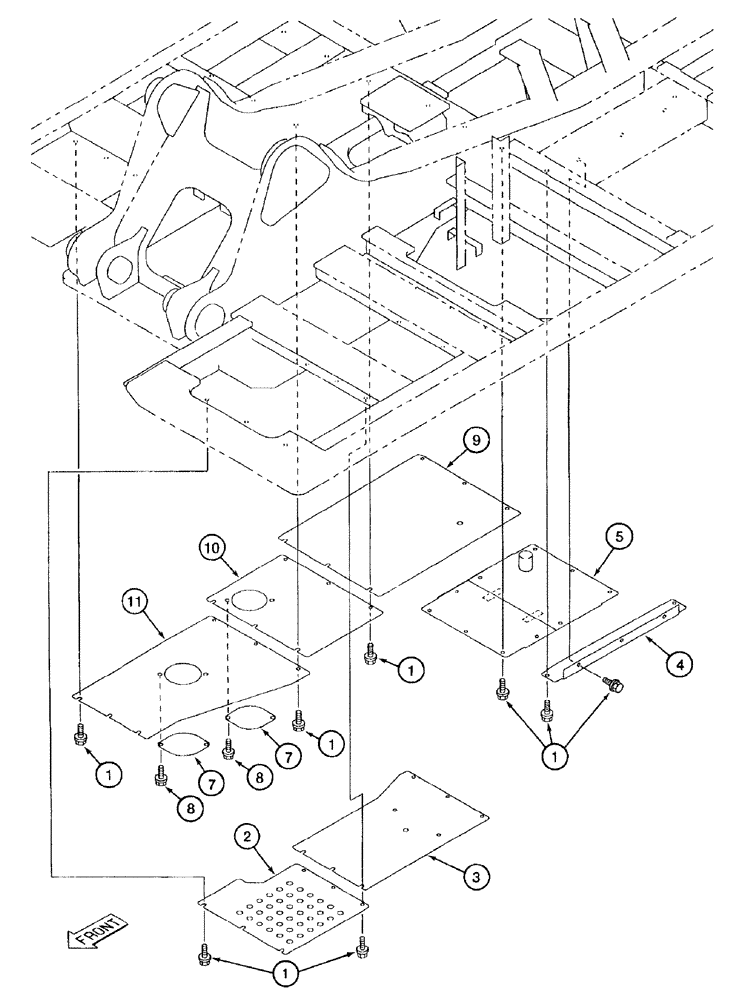

Схема запчастей Case 9050B - (9-010) - TURNTABLE ACCESS COVERS (09) - CHASSIS/ATTACHMENTS
11
7
3
10
2
5
1
1
8
4
8
9
1
1
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162278A1

BOLT

flange head, special

38шт.

2

173043A1

COVER

access, left-hand front

1шт.

3

173044A1

COVER

access, left-hand center

1шт.

4

173045A1

COVER

access, left-hand rear

1шт.

5

173046A1

COVER

hinged, center rear, Serial Range: -EAC0501196

1шт.

5

173756A1

COVER

hinged, center rear, Start Serial: EAC0501196

1шт.

7

170118A1

SHEET

COVER - access

2шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special, flange head

4шт.

9

173047A1

COVER

access, right-hand rear

1шт.

10

173050A1

COVER

access, right-hand center

1шт.

11

173049A1

COVER

access, right-hand front

1шт.
