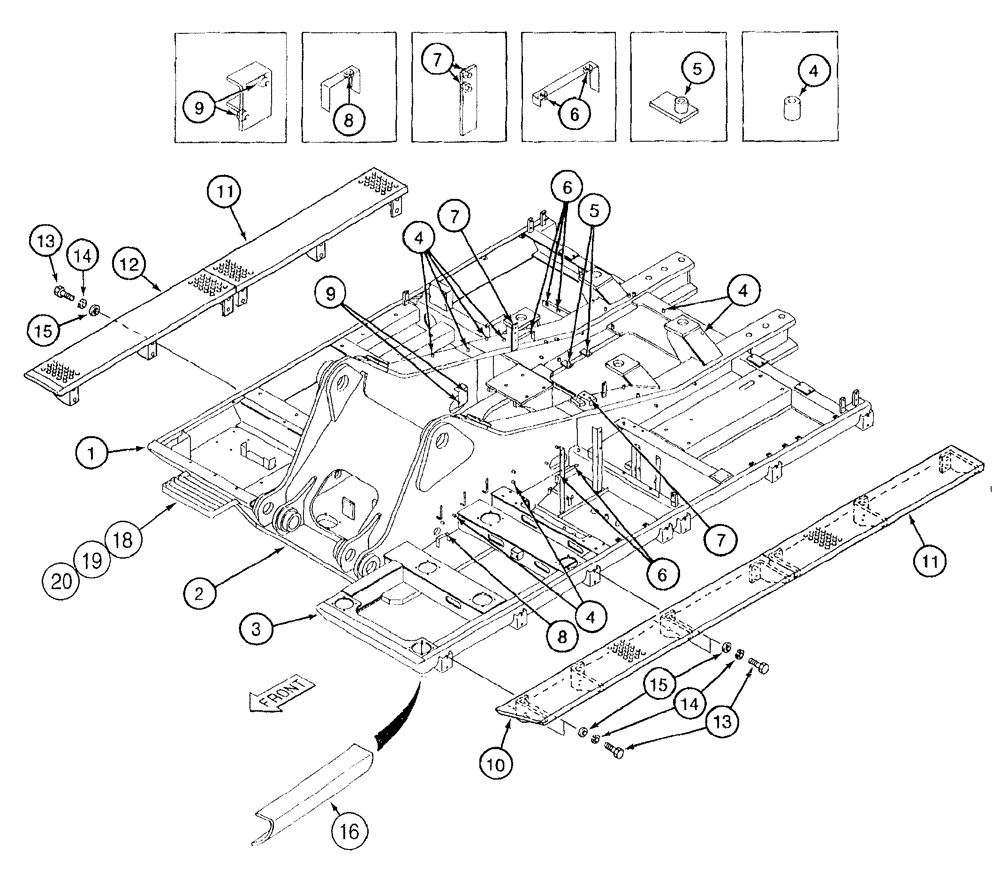

Запчасти Case 9050B (9-008) - TURNTABLE AND WALKWAYS (09) - CHASSIS/ATTACHMENTS

173509A1

FRAME ASSY

TURNTABLE ASSEMBLY - excavator, models without Timber King

1шт.

173689A1

FRAME ASSY

TURNTABLE ASSEMBLY - excavator, models with Timber King, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM - turntable, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - boom mounting

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM - turntable, left-hand

1шт.

4

158811A1

BOSS

special, weld on

44шт.

5

158918A1

SPECIAL NUT

special

4шт.

6

829-1308

NUT,M8, Cl 10

11шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

8

829-1306

NUT,M6, Cl 10

RH front

4шт.

9

829-1310

NUT,M10, Cl 10

Hex, Class 10.9, RH and LH rear

2шт.

10

173042A1

PLATFORM

WALKWAY - turntable, left-hand front

1шт.

11

173040A1

PLATFORM

WALKWAY - turntable, right-hand and left-hand rear

2шт.

12

173041A1

PLATFORM

WALKWAY - turntable, right-hand front

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

26шт.

14

892-11012

LOCK WASHER,M12

26шт.

15

150900A1

WASHER

flat, 12 mm

26шт.

16

173868A1

RAIL

GUARD - formed angle iron

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut to required length as required for the damaged side.

1шт.

17

173694A1

PLUG

hole, used on models without walkways, not shown

26шт.

18

171224A1

STEP

operators

1шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
