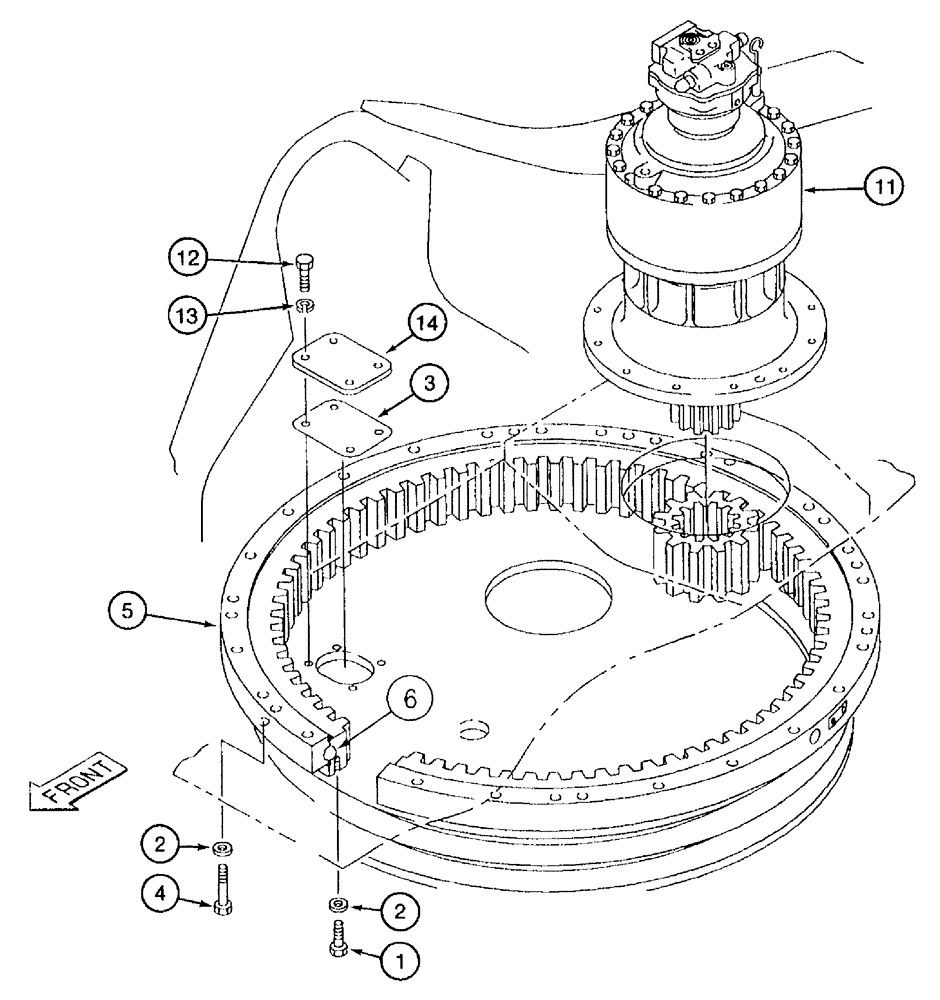

Запчасти Case 9050B (9-004) - TURNTABLE BEARING, TIMBER KING MODELS (09) - CHASSIS/ATTACHMENTS

1

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

41шт.

2

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

79шт.

3

151070A1

GASKET

access cover

1шт.

4

828-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

hex, 24 - 3.0 x 140 mm, class 10.9

38шт.

5

173441A1

BEARING

RING, GEAR BEARING ASSEMBLY - turntable, Includes: Ref. 6

1шт.

6

171745A1

SEAL

bearing, upper and lower

1шт.

11

REF

INSTRUCTION

MOTOR ASSEMBLY - swing drive, see figures 8-199 and 8-201 for correct motor and related parts

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

13

892-11012

LOCK WASHER,M12

4шт.

14

151068A1

LID

access

1шт.
