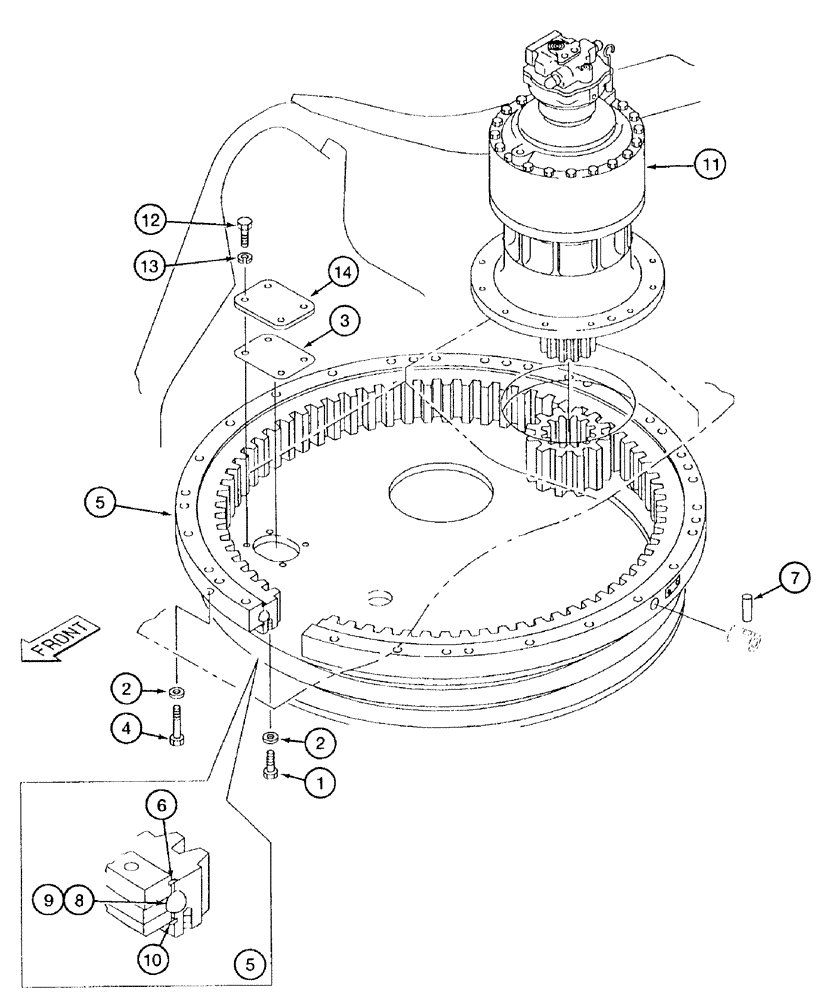

Запчасти Case 9050B (9-002) - TURNTABLE BEARING, MODELS WITHOUT TIMBER KING (09) - CHASSIS/ATTACHMENTS

1

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

42шт.

2

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

78шт.

3

151070A1

GASKET

access cover

1шт.

4

828-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

hex, 24 - 3.0 x 120 mm, class 10.9

36шт.

5

173004A1

BEARING

RING, GEAR BEARING ASSEMBLY - turntable, order 173884A1 bearing assembly for service, Serial Range: -EAC0501286

1шт.

5

173884A1

BEARING

BEARING - turntable, will service all models without Timber King, Includes: Ref. 6 - 10

1шт.

6

173887A1

SEAL

upper, and lower, for 173884A1 bearing assembly

1шт.

6

173889A1

SEAL

RING - seal, upper, and lower, for 173004A1 bearing assembly, Serial Range: -EAC0501286

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - special, stopper

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - ball, turntable

93шт.

9

NSS

NOT SOLD SEPARAT

SPACER - ball bearing

93шт.

10

NSS

NOT SOLD SEPARAT

RING - seal, lower, cut from ref 6

1шт.

11

REF

INSTRUCTION

MOTOR ASSEMBLY - swing drive, see figures 8-199 and 8-201 for correct motor and related parts

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

13

892-11012

LOCK WASHER,M12

4шт.

14

151068A1

LID

COVER - access

1шт.
