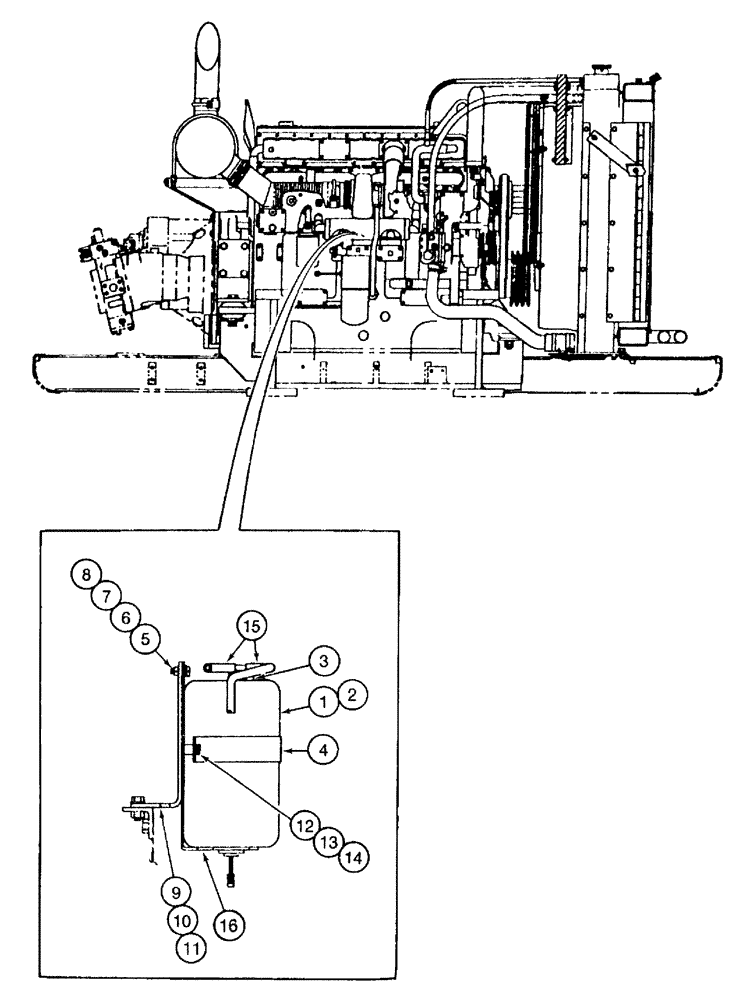

Запчасти Case 9050B (2-008) - RADIATOR OVERFLOW RESERVOIR AND HOSES (02) - ENGINE

160639A1

RESERVOIR, COOLANT E

coolant overflow, Includes: Ref. 1-3

1шт.

1

161847A1

RESERVOIR, COOLANT E

coolant overflow

1шт.

2

161740A1

SWITCH

sender, coolant level, not shown

1шт.

3

161848A1

PLUG

CAP - reservoir, removable

1шт.

4

170524A1

BRACKET

reserve tank

1шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

173059A1

BRACKET

reservoir mounting

1шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

15

170881A1

HOSE,7.94 mm ID x 1473.00 mm

1473 mm (58 inch) long, coolant overflow

2шт.

16

170268A1

HOLDER

BRACKET - special, reservoir mounting

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
