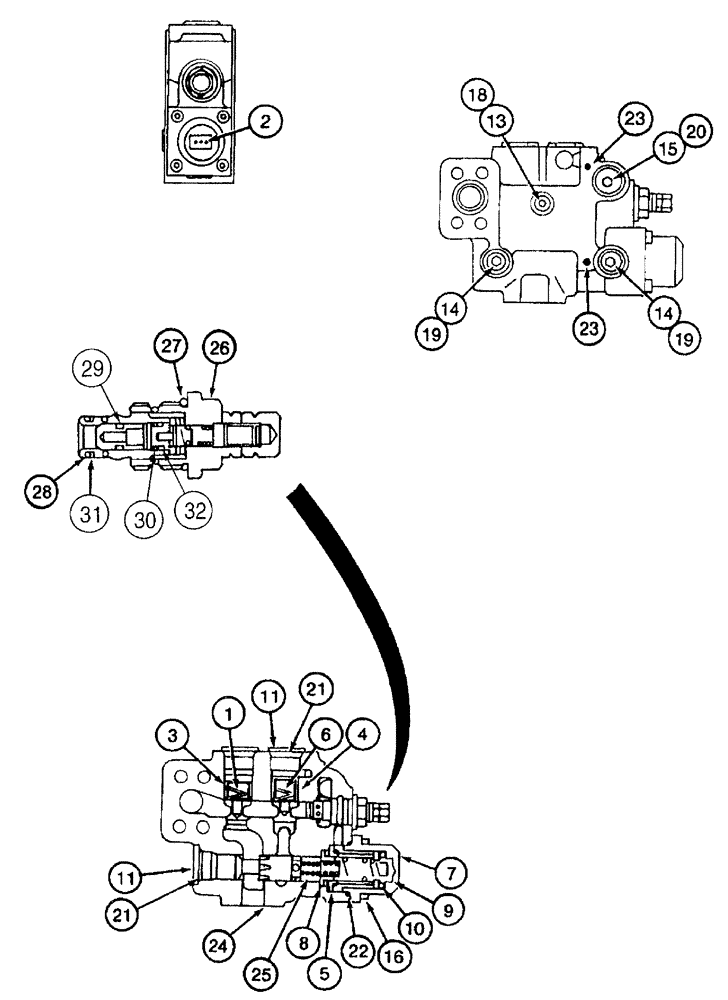

Запчасти Case 9050B (8-228) - LOAD HOLDING OPTION, BOOM CYLINDER HOLDING VALVE ASSEMBLY (08) - HYDRAULICS

164120A1

SAFETY VALVE

ASSEMBLY - boom cylinder holding, Includes: Ref. 1 - 32

1шт.

1

165003A1

SPRING

plunger return

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

3

165004A1

PLUNGER

valve

1шт.

4

165005A1

PLUNGER

valve

1шт.

5

165006A1

SPACER

spool return spring

1шт.

6

165007A1

SPRING

plunger return

1шт.

7

165008A1

COVER

spool end

1шт.

8

165009A1

HOLDER

GUIDE - spring

1шт.

9

165010A1

SPRING

spool return, inner

1шт.

10

164499A1

SPRING

compression, spool return, outer

1шт.

11

155509A1

PLUG

port

3шт.

13

160083A1

PLUG

port

1шт.

14

155515A1

PLUG

port

2шт.

15

163874A1

PLUG

port

1шт.

16

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

19

154475A1

O-RING

plug

2шт.

20

154487A1

O-RING

plug

1шт.

21

154523A1

O-RING

spool end port

3шт.

22

154625A1

O-RING

cover

1шт.

23

163873A1

PLUG

port

6шт.

165500A1

VALVE BODY

AND SPOOL ASSEMBLY - boom holding, Includes: Ref. 24 - 25

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

164997A1

VALVE

ASSEMBLY - relief, Includes: Ref. 26 - 32

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, less external seals

1шт.

27

154515A1

O-RING

relief valve outer seal

1шт.

28

154475A1

O-RING

relief valve inner seal

1шт.

29

154455A1

O-RING

relief valve inner seal

1шт.

30

154459A1

O-RING

relief valve inner seal

1шт.

31

153961A1

BACK-UP RING

relief valve inner seal

1шт.

32

153949A1

BACK-UP RING

relief valve inner seal

1шт.
