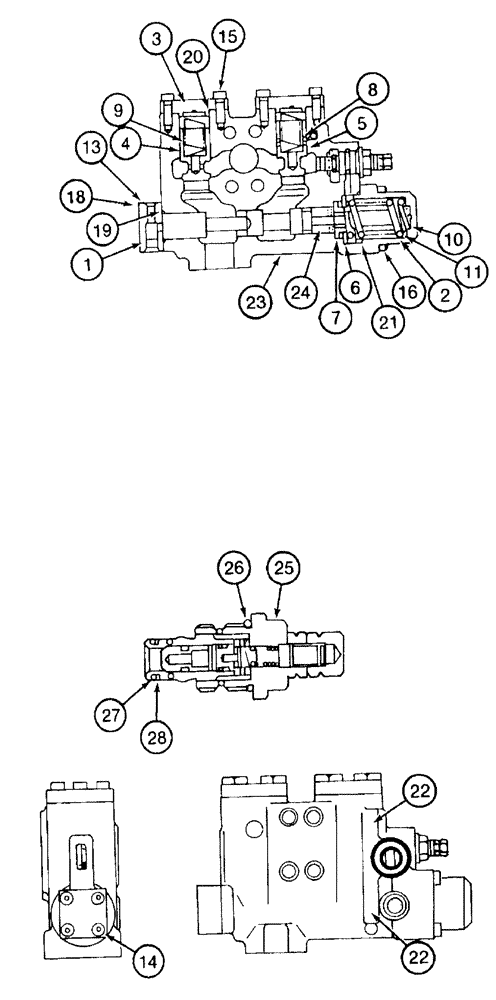

Запчасти Case 9050B (8-226) - LOAD HOLDING OPTION, ARM CYLINDER HOLDING VALVE ASSEMBLY (08) - HYDRAULICS

164126A1

SAFETY VALVE

ASSEMBLY - holding, arm cylinder, Includes: Ref. 1 - 28

1шт.

1

164985A1

COVER

spool end

1шт.

2

164986A1

COVER

spool, spring end

1шт.

3

164987A1

COVER

spring and plunger

2шт.

4

164988A1

PLUNGER

valve

1шт.

5

164989A1

PLUNGER

valve

1шт.

6

164990A1

SPACER

spring tension

1шт.

7

164991A1

HOLDER

GUIDE - spring

1шт.

8

164992A1

SPRING

plunger return

1шт.

9

164993A1

SPRING

plunger return

1шт.

10

164994A1

SPRING

spool return, inner

1шт.

11

164995A1

SPRING

spool return, outer

1шт.

13

155510A1

PLUG

port

1шт.

14

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

15

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

12шт.

16

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

18

154455A1

O-RING

plug

1шт.

19

154549A1

O-RING

spool end cover

1шт.

20

154569A1

O-RING

spring and plunger cover

2шт.

21

154657A1

O-RING

spring cover

1шт.

22

163873A1

PLUG

port

6шт.

164996A1

VALVE, CONTROL

BODY AND SPOOL ASSEMBLY - arm holding, Includes: Ref. 23 - 24

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

164997A1

VALVE

ASSEMBLY - relief, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, less external seals

1шт.

26

154515A1

O-RING

relief valve outer seal

1шт.

27

154475A1

O-RING

relief valve inner seal

1шт.

28

153961A1

BACK-UP RING

relief valve inner seal

1шт.
