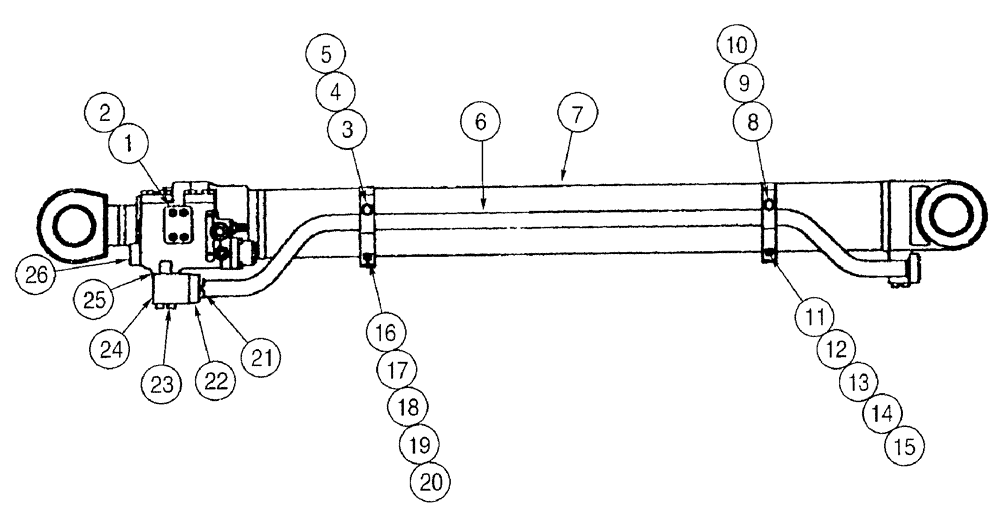

Запчасти Case 9050B (8-224) - LOAD HOLDING OPTION, TUBE LINE AND HOLDING VALVE AT ARM CYLINDER (08) - HYDRAULICS

1

164450A1

O-RING

, Serial Range: valve-cylinder

1шт.

2

162030A1

BOLT,Hex Skt Hd

hex socket head

4шт.

3

173734A1

CLAMP

tube

1шт.

4

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

Hex, M14 x 80, 8.8

1шт.

5

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

6

173733A1

TUBE

hydraulic

1шт.

7

173507A1

CYLINDER ASSY.

160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, parts list figure 8-190

1шт.

8

173734A1

CLAMP

tube

1шт.

9

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

Hex, M14 x 80, 8.8

1шт.

10

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

11

173735A1

CLAMP

tube

1шт.

12

173736A1

CLAMP

tube .

1шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

16

173735A1

CLAMP

tube

1шт.

17

173736A1

CLAMP

tube

1шт.

18

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

21

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

22

164450A1

O-RING

tube, Serial Range: line-manifold

1шт.

23

162030A1

BOLT,Hex Skt Hd

hex socket head

4шт.

24

162031A1

MANIFOLD

hydraulic

1шт.

25

164450A1

O-RING

, Serial Range: manifold-cylinder

1шт.

26

164126A1

SAFETY VALVE

ASSEMBLY - holding, arm cylinder, parts list figure 8-226

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
