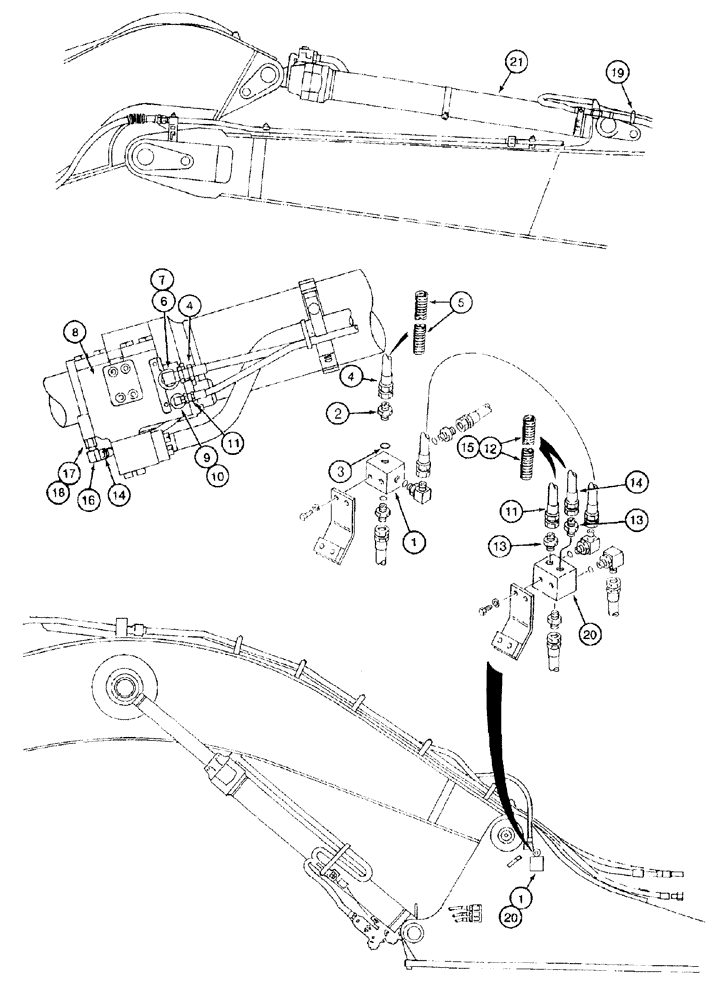

Запчасти Case 9050B (8-222) - LOAD HOLDING OPTION, ARM CYLINDER HYDRAULICS (08) - HYDRAULICS

1

164112A1

MANIFOLD

hydraulic, arm cylinder, seefigure 8-216 for related parts

1шт.

2

164176A1

ADAPTER

ADAPTER - straight, Includes: Ref. 3

1шт.

3

154487A1

O-RING

adapter

1шт.

4

162038A1

HYDRAULIC HOSE,19.00 mm ID x 6750.00 mm

Arm manifold to arm cylinder holding valve port "T1"

1шт.

5

163810A1

PLASTIC-RUBBER TUBE,32 mm ID, 38 mm OD

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

special, 90 degree, Includes: Ref. 7

1шт.

7

154503A1

O-RING

elbow

1шт.

8

164126A1

SAFETY VALVE

ASSEMBLY - holding, arm cylinder, parts list Figure 8-226, see Figure 8-190 for, Serial Range: mounting-cylinder

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 10

1шт.

10

154475A1

O-RING

elbow

1шт.

11

162040A1

HOSE,6750.00 mm

long arm cylinder holding valve port "T2" to manifold

1шт.

12

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

13

153597A1

ADAPTER

straight

2шт.

14

162041A1

HOSE

7100 mm (279-1/2 inch) long, manifold to arm cylinder holding valve port "Pi"

1шт.

15

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

16

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

17

153413A1

SOCKET

REDUCER - special, Includes: Ref. 18

1шт.

18

154475A1

O-RING

reducer bushing

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

20

162016A1

MANIFOLD

hydraulic, see figure 8-182 for related parts

1шт.

21

173507A1

CYLINDER ASSY.

160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, see figure 8-190 for related parts and 8-164 for component parts

1шт.
