(8-220) - LOAD HOLDING OPTION, HOLDING VALVES AND TUBE LINES AT BOOM CYLINDERS

Запчасти Case 9050B (8-220) - LOAD HOLDING OPTION, HOLDING VALVES AND TUBE LINES AT BOOM CYLINDERS (08) - HYDRAULICS

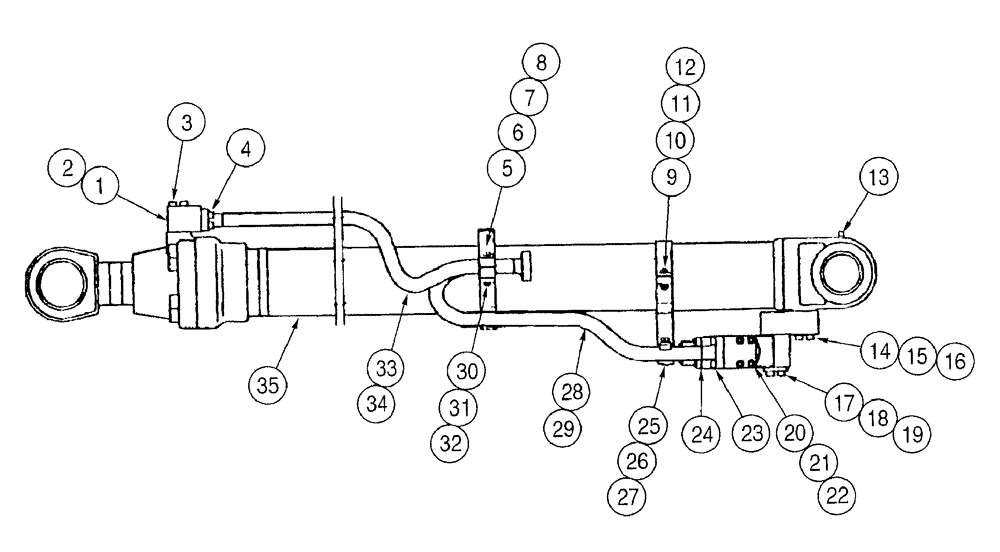

Схема запчастей Case 9050B - (8-220) - LOAD HOLDING OPTION, HOLDING VALVES AND TUBE LINES AT BOOM CYLINDERS (08) - HYDRAULICS
33
24
32
11
19
22
30
17
21
4
13
15
20
31
8
3
5
29
35
18
6
27
9
1
7
2
23
26
10
28
34
14
12
25
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162020A1

MANIFOLD

hydraulic

2шт.

2

155211A1

O-RING

, Serial Range: manifold-cylinder

2шт.

3

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

hex socket, 12 - 1.75 x 80 mm class 12.9

8шт.

4

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

8шт.

5

162025A1

CLAMP

tube

2шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

9

162024A1

CLAMP

tube

2шт.

10

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

11

892-11010

LOCK WASHER,M10

4шт.

13

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

2шт.

14

162018A1

MANIFOLD

hydraulic

2шт.

15

155211A1

O-RING

, Serial Range: manifold-cylinder

2шт.

16

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

hex socket, 12 - 1.75 x 70 mm, class 12.9

8шт.

17

161955A1

FLANGE

COVER - flat

2шт.

18

155211A1

O-RING

cover

2шт.

19

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

hex socket, 12 - 1.75 x 100 mm, class 12.9

8шт.

20

162020A1

MANIFOLD

hydraulic

2шт.

21

155211A1

O-RING

manifold

2шт.

22

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

hex socket, 12 - 1.75 x 80 mm class 12.9

8шт.

23

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

8шт.

24

164120A1

SAFETY VALVE

ASSEMBLY - boom cylinder holding, parts list figure 8-228

2шт.

25

152974A1

COLLAR

tube

2шт.

26

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

28

164123A1

HYD TUBE,26 mm ID, 34 mm OD

hydraulic, right-hand, closed end of cylinder

1шт.

29

164119A1

HYD TUBE,26 mm ID, 34 mm OD

hydraulic, left-hand, closed end of cylinder

1шт.

30

162026A1

CLAMP

tube

4шт.

31

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

hex, 12 - 1.75 x 70 mm

2шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

33

164122A1

HYD TUBE,26 mm ID, 34 mm OD

hydraulic, right-hand, rod end of cylinder

1шт.

34

164118A1

HYD TUBE,26 mm ID, 34 mm OD

hydraulic, left-hand, rod end of cylinder

1шт.

35

173782A1

CYLINDER ASSY.

140 (5-1/2) ID x 1480 mm (58-1/4 inch) stroke, boom, parts list figure 8-188

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
