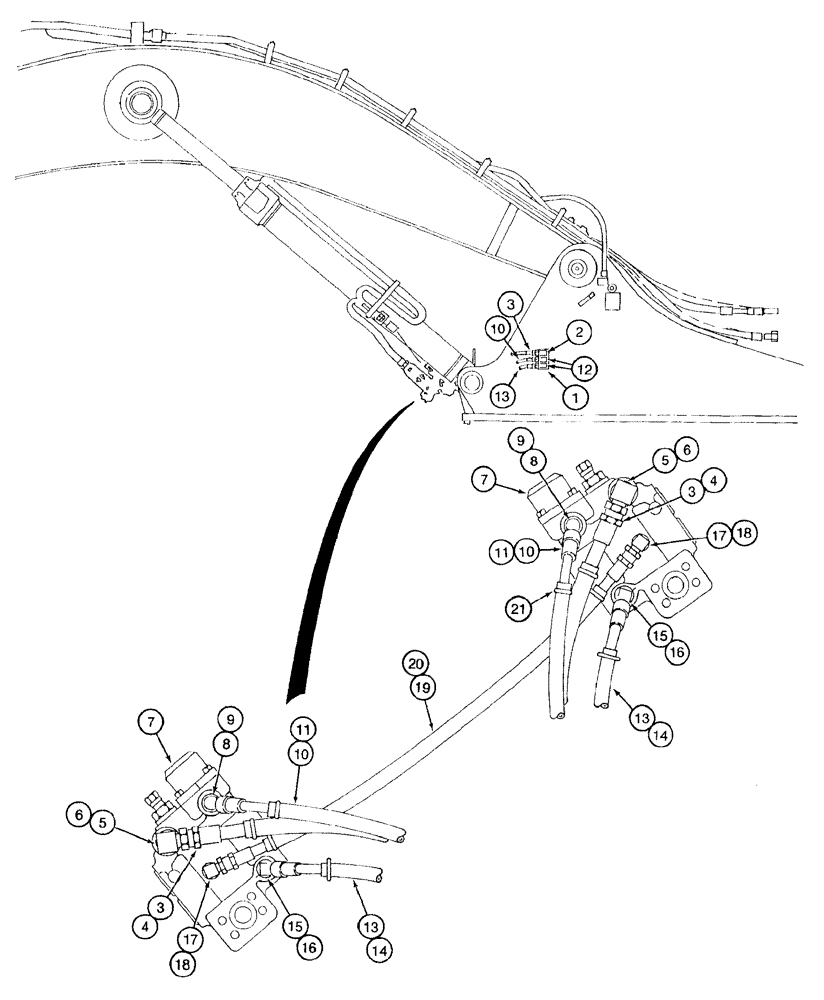

Запчасти Case 9050B (8-218) - LOAD HOLDING OPTION, BOOM CYLINDER HYDRAULICS (08) - HYDRAULICS

1

162014A1

MANIFOLD

hydraulic, boom cylinder, see figure 8-216 for related parts

1шт.

2

150602A1

ADAPTER

ELBOW - 90 degree

2шт.

3

164175A1

HYDRAULIC HOSE,12.70 mm ID x 950.00 mm

Boom Manifold to Boom Cylinder Holding Valve Port T1

2шт.

4

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

5

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

90 degree, Includes: Ref. 6

2шт.

6

154487A1

O-RING

elbow

1шт.

7

164120A1

SAFETY VALVE

ASSEMBLY - boom cylinder holding, parts list figure 8-228, see figure 8-220 for, Serial Range: mounting-cylinder

2шт.

8

157584A1

ELBOW

90 degree, special, Includes: Ref. 9

2шт.

9

154475A1

O-RING

elbow

1шт.

10

162032A1

HYDRAULIC HOSE,9.50 mm ID x 850.00 mm

Boom cylinder holding valve port "T2" to manifold

2шт.

11

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

12

153495A1

ADAPTER

ELBOW - 90 degree

4шт.

13

162037A1

HYDRAULIC HOSE,9.50 mm ID x 700.00 mm

1855 mm (73 inch) long, manifold to boom cylinder holding valve port "Pi"

2шт.

14

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long

2шт.

15

157584A1

ELBOW

90 degree special, Includes: Ref. 16

2шт.

16

154475A1

O-RING

elbow

1шт.

17

150933A1

ELBOW

45 degree, Includes: Ref. 18

2шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

19

164174A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

Crossover Line Between Boom Cylinder Holding Valves

1шт.

20

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, crossover hose

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.
