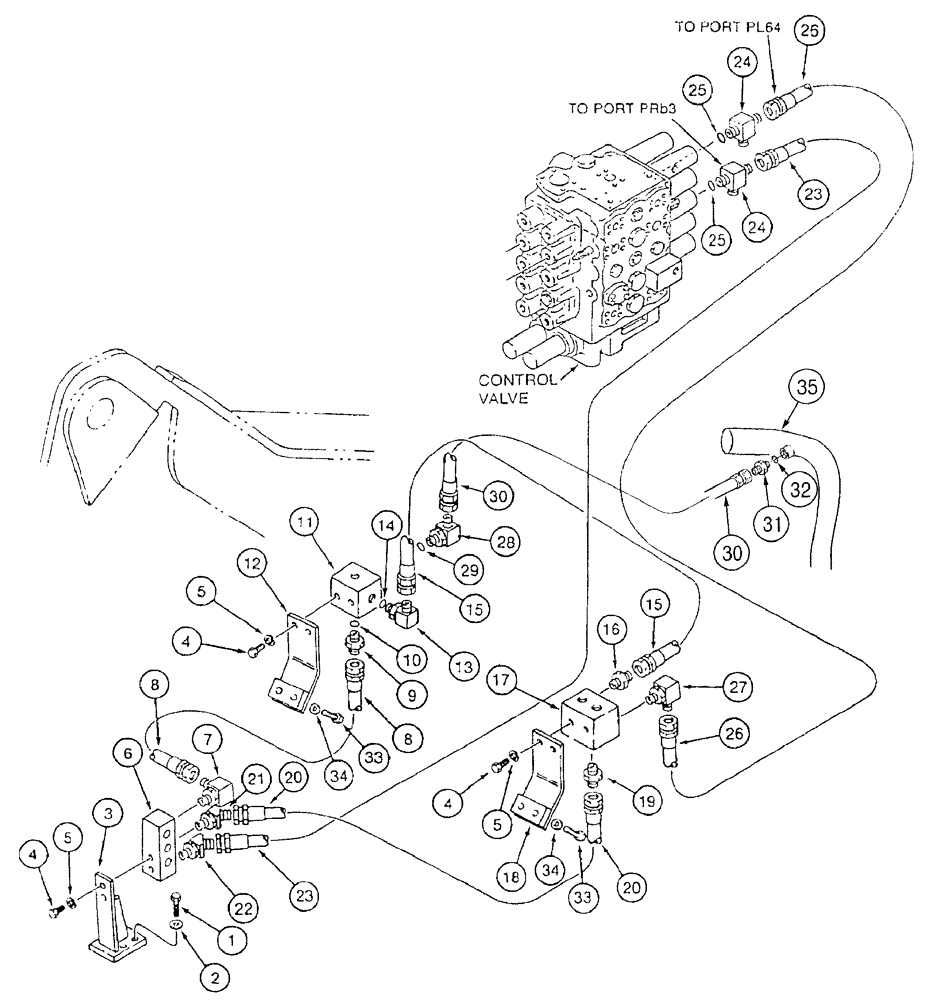

Запчасти Case 9050B (8-216) - LOAD HOLDING OPTION, BASIC HYDRAULICS (08) - HYDRAULICS

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened

2шт.

3

164113A1

BRACKET

manifold mounting

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

6шт.

5

892-11008

LOCK WASHER,8mm ID

6шт.

6

162014A1

MANIFOLD

hydraulic, lower, boom and arm

1шт.

7

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

8

163519A1

HYDRAULIC HOSE,12.70 mm ID x 750.00 mm

Lower manifold to arm manifold

1шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 10

1шт.

10

154487A1

O-RING

adapter

1шт.

11

164112A1

MANIFOLD

hydraulic, arm

1шт.

12

162012A1

BRACKET

manifold mounting

1шт.

13

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 14

1шт.

14

154475A1

O-RING

elbow

1шт.

15

153293A1

HOSE ASSY.

380 mm (15 inch) long

1шт.

16

153597A1

ADAPTER

straight

1шт.

17

162016A1

MANIFOLD

hydraulic, boom

1шт.

18

162012A1

BRACKET

manifold mounting

1шт.

19

153597A1

ADAPTER

straight

1шт.

20

163710A1

HYDRAULIC HOSE,9.50 mm ID x 800.00 mm

Lower Manifold to Boom Manifold

1шт.

21

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

22

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

23

163759A1

HYDRAULIC HOSE

HYDRAULIC HOSE 2450 mm, at control valve port "4PP1"

1шт.

24

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

special, Includes: Ref. 25

2шт.

25

154475A1

O-RING

tee

1шт.

26

164115A1

HYDRAULIC HOSE

2300 mm, at control valve port "5PP1"

1шт.

27

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

28

157586A1

ELBOW

90 degree, Includes: Ref. 29

1шт.

29

154503A1

O-RING

adapter

1шт.

30

163520A1

HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm

1шт.

31

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 32

1шт.

32

154503A1

O-RING

elbow

1шт.

33

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

34

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened

4шт.

35

173682A1

TUBE

oil cooler to tank, see figure 8-12 for related parts

1шт.
