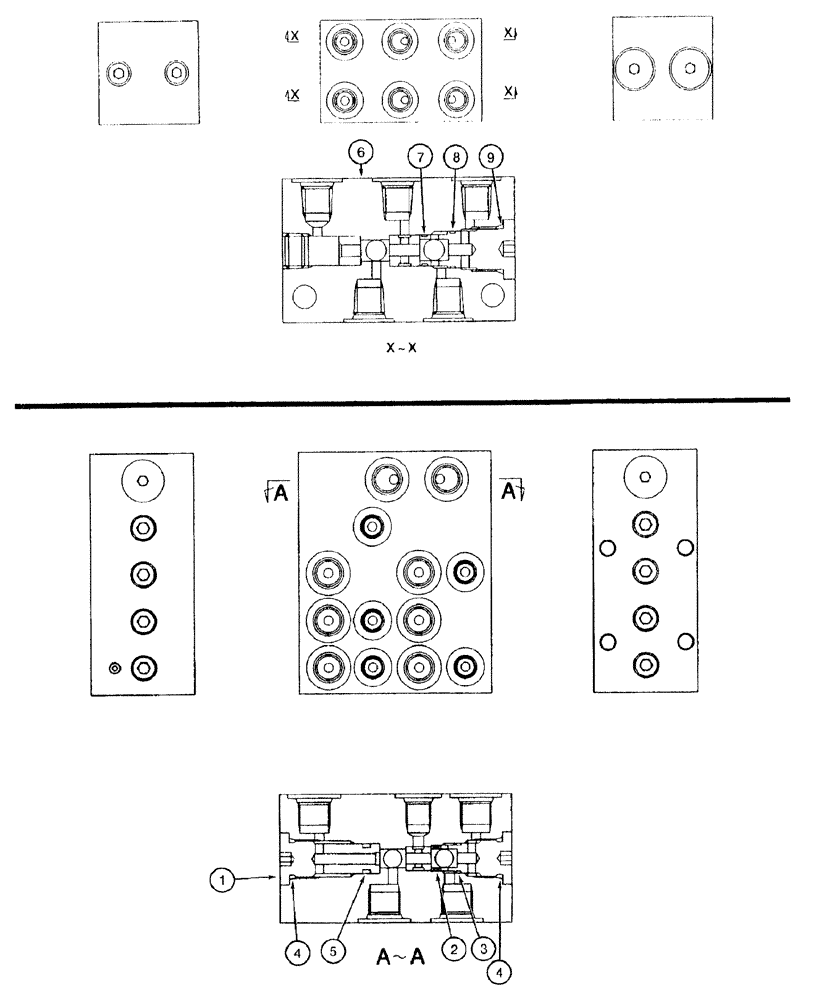

Запчасти Case 9050B (8-214) - SHUTTLE VALVE ASSEMBLY (08) - HYDRAULICS
5
3
6
1
2
7
8
4
4
9
№
Артикул
Название
Примечание
Количество
162077A1
VALVE
ASSEMBLY - shuttle, pilot control, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
164449A1
O-RING
valve, seat, C, inner
1шт.
3
164448A1
O-RING
valve, seat, C, intermediate
1шт.
4
154486A1
O-RING
valve, seat, C and D, outer
2шт.
5
154470A1
O-RING
valve, seat, D, inner
1шт.
KHJ17130
VALVE SECTION
ASSEMBLY - shuttle, one pedal travel valve, Includes: Ref. 6 - 9; Replaces 160355A1
1шт.
6
NSS
NOT SOLD SEPARAT
BODY - valve, one pedal travel shuttle
1шт.
7
164449A1
O-RING
valve, seat, C, inner, one pedal travel shuttle
2шт.
8
164448A1
O-RING
valve, seat, C, intermediate, one pedal travel shuttle
2шт.
9
154486A1
O-RING
valve, seat, C, outer, one pedal travel shuttle
2шт.
Выбрано товаров: 11
