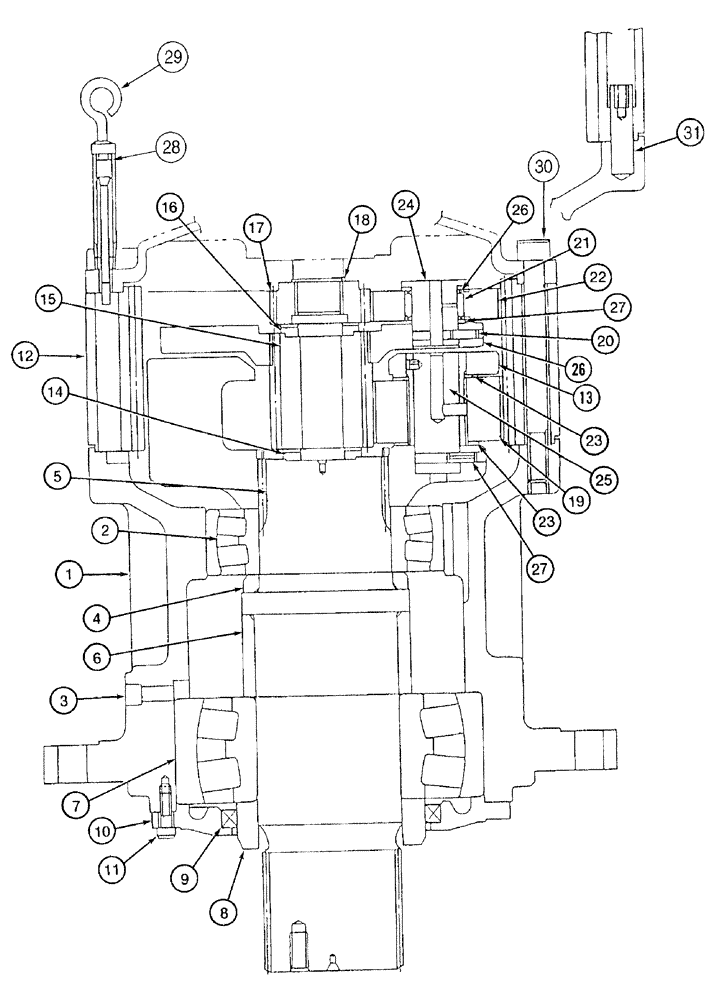

Запчасти Case 9050B (8-212) - 165632A1 SWING REDUCTION GEAR ASSEMBLY, FOR PRODUCTION PIN EAC0501164 & AFT,PRIOR TO PIN EAC0501164 (08) - HYDRAULICS

165632A1

REDUCER

GEAR ASSEMBLY - reduction, Includes: Ref. 1 - 31

1шт.

1

150427A1

HOUSING ASSY.

gear

1шт.

2

150260A1

ROLLER BEARING,120 mm ID x 215 mm OD x 58 mm

roller

1шт.

3

150825A1

PLUG

port

1шт.

4

150500A1

SPACER

bearing

1шт.

5

150437A1

SHAFT

drive

1шт.

6

150503A1

SPACER

bearing

1шт.

7

150491A1

ROLLER BEARING,130mm ID x 280mm OD x 93mm W

roller

1шт.

8

150468A1

HOLDER

1шт.

9

150494A1

OIL SEAL

oil

1шт.

10

158854A1

RETAINER

oil seal

1шт.

11

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

12

150528A1

PINION

GEAR - ring

1шт.

13

150534A1

HOUSING

planetary

1шт.

14

150471A1

PLATE, THRUST

1шт.

15

150538A1

SUN GEAR

1шт.

16

150471A1

PLATE, THRUST

1шт.

17

150536A1

SUN GEAR

1шт.

18

800-1145

SNAP RING,M45, Ext

Retaining

1шт.

19

150544A1

SUN GEAR

planetary carrier

1шт.

20

150532A1

BEARING CARRIER

planet

1шт.

21

167058A1

BEARING, NEEDLE

3шт.

22

167057A1

GEAR, PLANETARY

GEAR, PLANET planetary

3шт.

23

150463A1

WASHER, THRUST

PLATE - side

8шт.

24

167056A1

PIN

planetary gear

3шт.

25

150456A1

GEAR SHAFT

PIN

4шт.

26

150458A1

WASHER, THRUST

PLATE - side

6шт.

27

738-1825

LOCK PIN,M8 x 25, Slotted

7шт.

28

150435A1

COLUMN JACKET

dipstick

1шт.

29

150438A1

GAUGE

DIPSTICK - oil lube

1шт.

30

150483A1

BOLT,Hex Skt, M20

hex socket, special

12шт.

31

150474A1

PIN

special

4шт.
