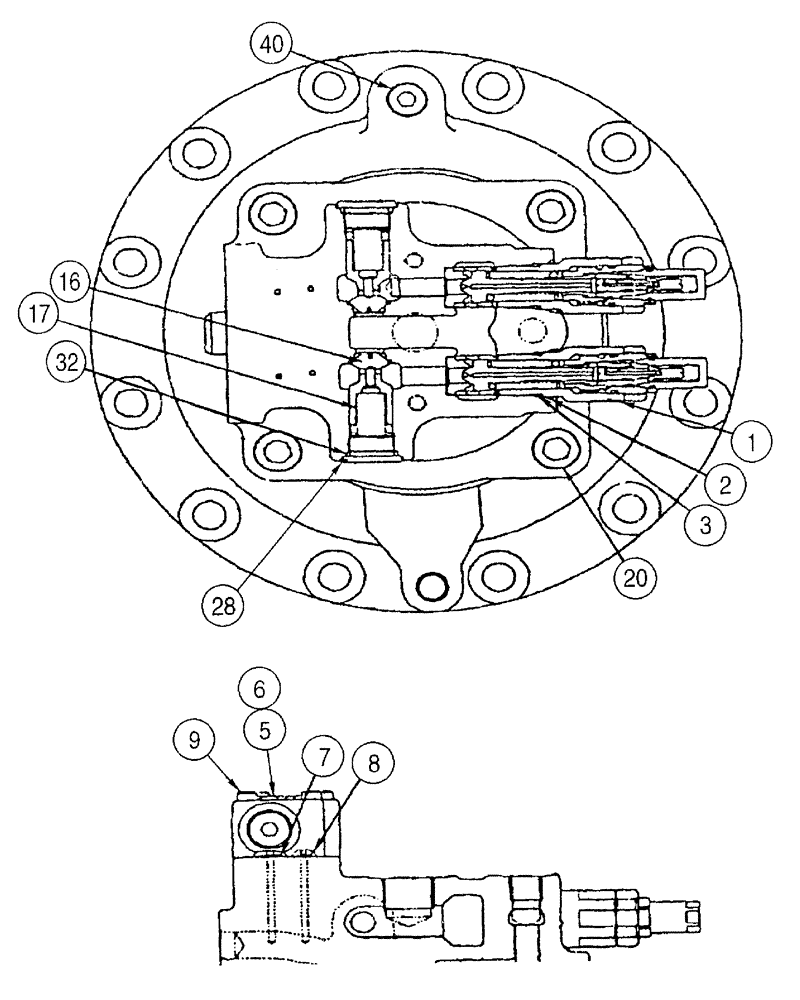

Запчасти Case 9050B (8-208) - 165630A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS

165630A1

MOTOR, HYDRAULIC

ASSEMBLY - swing, continued, Includes: Ref. 1 - 40

1шт.

1

167061A1

VALVE, PRESSURE RELI

EF ASSEMBLY - relief, Includes: Ref. 2 - 3

2шт.

2

154529A1

O-RING

, Serial Range: valve-housing

1шт.

3

154002A1

BACK-UP RING

1шт.

162730A1

VALVE

HOUSING ASSEMBLY - reactionless swing, Includes: Ref. 4 - 13

1шт.

4

162755A1

CASING

HOUSING - valve

1шт.

5

162726A1

PLUG

port

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

2шт.

7

154471A1

O-RING

housing

2шт.

8

154447A1

O-RING

housing

2шт.

9

863-8055

HEX SOC SCREW,M8 x 55mm, Cl 12.9

hex socket, 8 - 1.25 x 55 mm, class 12.9

4шт.

10

162729A1

VALVE

ASSEMBLY - reactionless swing, Includes: Ref. 11 - 13

2шт.

11

154491A1

O-RING

valve

1шт.

12

162713A1

RING

special, valve seal

1шт.

13

153973A1

BACK-UP RING

1шт.

16

162725A1

PLUNGER

valve

2шт.

17

162746A1

SPRING

compression

2шт.

20

863-22045

HEX SOC SCREW,M22 x 45mm, Cl 12.9

hex socket, 22 - 2.5 x 45 mm, class 12.9

4шт.

28

155475A1

PLUG

port

2шт.

32

154519A1

O-RING

plug

2шт.

40

153868A1

PLUG

port

1шт.
