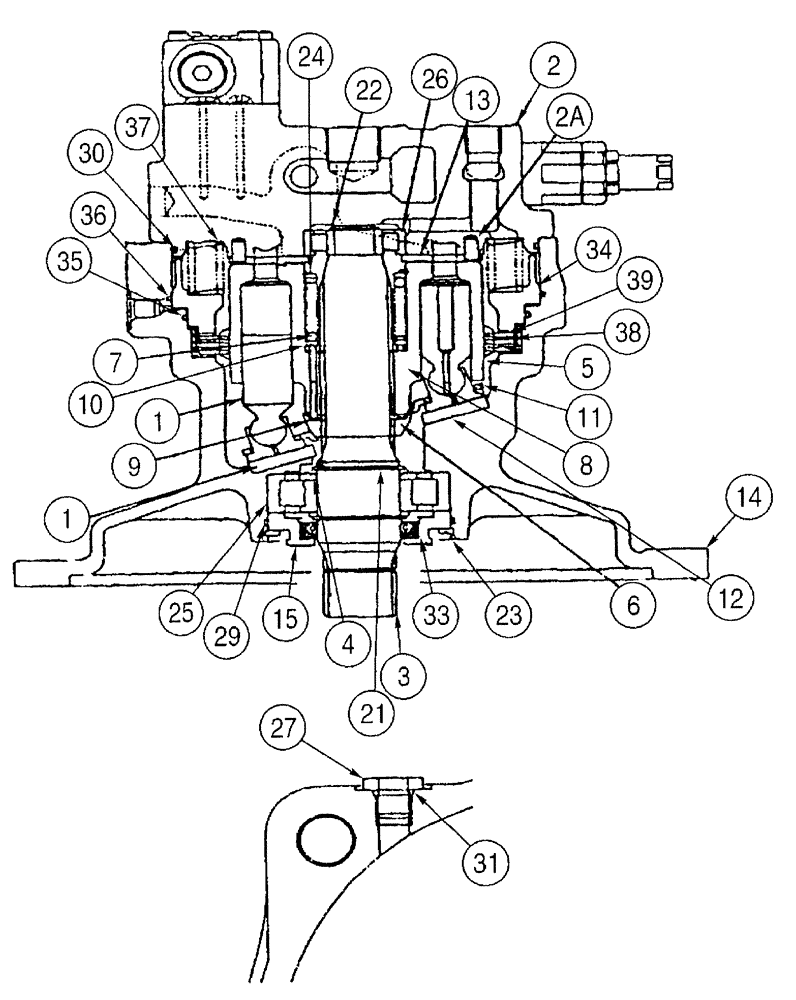

Запчасти Case 9050B (8-206) - 165630A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS

165630A1

MOTOR, HYDRAULIC

ASSEMBLY - swing, Includes: Ref. 1 - 39

1шт.

1

155796A1

SET OF PARTS

PISTON ASSEMBLY - swing motor, includes 9 pistons and 9 shoes

1шт.

2

167060A1

BOX

HOUSING ASSEMBLY - relief valve, Includes: Ref. 2A

1шт.

2a

738-1816

LOCK PIN,M8 x 16, Slotted

roll, 8 x 16 mm

2шт.

3

155362A1

SHAFT

drive

1шт.

4

155627A1

SPACER

front cover

3шт.

5

167062A1

BARREL

BLOCK - cylinder

1шт.

6

156800A1

RETAINER

BUSHING - spherical

1шт.

7

156086A1

SPRING

cylinder

1шт.

8

155656A1

TAPPET

ROD - push

12шт.

9

155628A1

SPACER

push rod

1шт.

10

155629A1

SPACER

spring

1шт.

11

156332A1

TRAY

PLATE - piston

1шт.

12

156331A1

TRAY

PLATE - swash

1шт.

13

156330A1

LARGE PLATE

PLATE, LARGE valve

1шт.

14

167063A1

HOUSING

HOUSING - swing motor

1шт.

15

156319A1

COVER

RETAINER - shaft seal

1шт.

21

800-1150

SNAP RING,M50, Ext

external retaining, No. 50

2шт.

22

166177A1

RING, SNAP

RING SNAP

1шт.

23

166178A1

RING, SNAP

RING SNAP

1шт.

24

166179A1

RING, SNAP

RING SNAP

1шт.

25

156132A1

BEARING, ROLLER,50 mm ID x 110 mm OD x 27 mm

1шт.

26

156140A1

BEARING, ROLLER,25 mm ID x 62 mm OD x 17 mm

1шт.

27

155496A1

PLUG

port

1шт.

29

154741A1

O-RING

front cover

1шт.

30

162701A1

O-RING

relief valve housing

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

33

155109A1

OIL SEAL

oil

3шт.

34

155936A1

PISTON

brake

1шт.

35

155215A1

O-RING

piston to housing, inner

1шт.

36

155218A1

O-RING

piston to housing, outer

1шт.

37

156085A1

SPRING

return

16шт.

38

156318A1

BRAKE DISC

DISC, BRAKE PLATE - friction

3шт.

39

156317A1

DISC

PLATE - separator

4шт.

162719A1

SEAL KIT

contains items 29 thru 33, 35 and 36

1шт.
