Запчасти Case 9050B (8-202) - 162100A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS

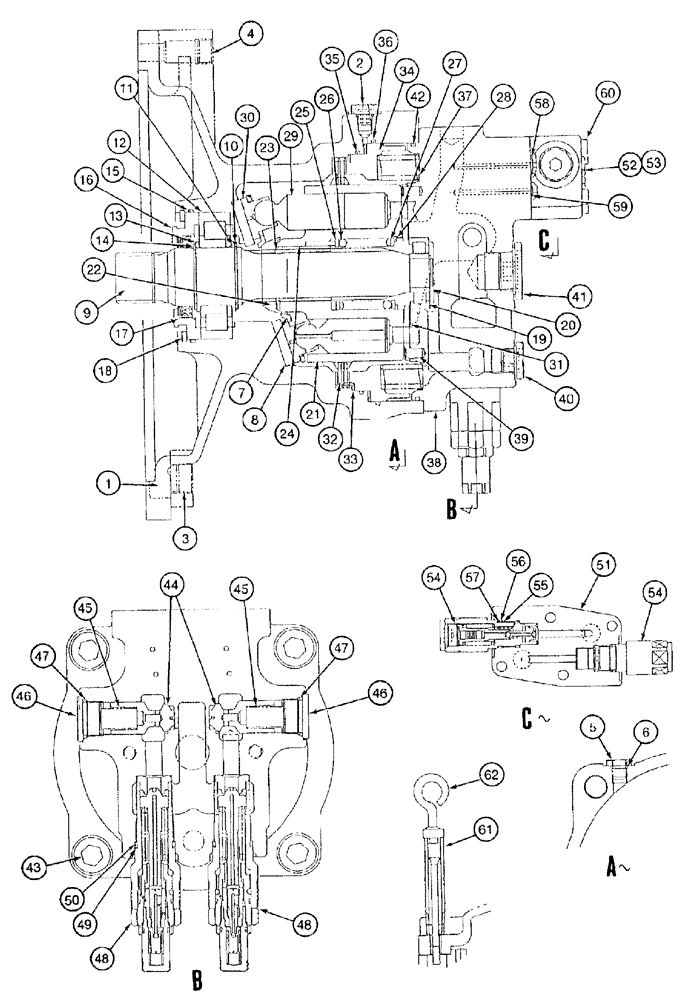

Схема запчастей Case 9050B - (8-202) - 162100A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS
23
59
34
7
31
24
36
53
58
11
45
27
43
62
28
17
9
55
20
51
6
45
21
38
47
19
37
15
48
10
47
25
16
54
1
35
2
40
26
13
33
49
57
54
41
56
12
18
14
22
30
50
29
42
60
5
61
8
44
4
3
48
39
52
32
46
46

Артикул

Название

Примечание

Количество

162100A1

MOTOR, HYDRAULIC

ASSEMBLY - swing, Includes: Ref. 1 - 62

1шт.

1

156320A1

HOUSING

swing motor

1шт.

2

162711A1

PLUG

port

1шт.

3

153868A1

PLUG

port

1шт.

4

151035A1

PLUG

pipe

1шт.

5

155496A1

PLUG

port

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

7

156332A1

TRAY

PLATE - piston

1шт.

8

156331A1

TRAY

PLATE - swash

1шт.

9

155362A1

SHAFT

drive

1шт.

10

800-1150

SNAP RING,M50, Ext

external retaining, No. 50

1шт.

11

155627A1

SPACER

bearing

1шт.

12

156132A1

BEARING, ROLLER,50 mm ID x 110 mm OD x 27 mm

1шт.

13

155627A1

SPACER

bearing

1шт.

14

800-1150

SNAP RING,M50, Ext

external retaining, No. 50

1шт.

15

154741A1

O-RING

retainer

1шт.

16

156319A1

COVER

RETAINER - shaft seal

1шт.

17

155109A1

OIL SEAL

oil

1шт.

18

166178A1

RING, SNAP

RING SNAP

1шт.

19

156140A1

BEARING, ROLLER,25 mm ID x 62 mm OD x 17 mm

1шт.

20

800-1125

SNAP RING,M25, Ext

Retaining

1шт.

21

158109A1

CYLINDER

BLOCK - swing motor

1шт.

22

156800A1

RETAINER

BUSHING - spherical

1шт.

23

155628A1

SPACER

push rod

1шт.

24

155656A1

TAPPET

ROD - push

12шт.

25

155629A1

SPACER

special

1шт.

26

156086A1

SPRING

cylinder

1шт.

27

155627A1

SPACER

spring retaining

1шт.

28

166179A1

RING, SNAP

RING SNAP

1шт.

155796A1

SET OF PARTS

PISTON ASSEMBLY - swing motor, Includes: Ref. 29 - 30

1шт.

29

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

30

NSS

NOT SOLD SEPARAT

SHOE - piston

1шт.

31

156330A1

LARGE PLATE

PLATE, LARGE valve

1шт.

32

156318A1

BRAKE DISC

DISC, BRAKE PLATE - friction

2шт.

33

156317A1

DISC

PLATE - separator

3шт.

34

155936A1

PISTON

brake

1шт.

35

155215A1

O-RING

piston

1шт.

36

155218A1

O-RING

piston

1шт.

37

156099A1

SPRING

compression

24шт.

162754A1

VALVE

HOUSING ASSEMBLY - relief valve, Includes: Ref. 38 - 39

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

39

738-1816

LOCK PIN,M8 x 16, Slotted

roll, 8 x 16 mm

2шт.

40

162710A1

PLUG

port

1шт.

41

162712A1

PLUG

port

1шт.

42

162701A1

O-RING

piston

1шт.

43

863-22045

HEX SOC SCREW,M22 x 45mm, Cl 12.9

hex socket, 22 - 2.5 x 45 mm, class 12.9

4шт.

44

162725A1

PLUNGER

valve

2шт.

45

162746A1

SPRING

compression

2шт.

46

155475A1

PLUG

port

2шт.

47

154519A1

O-RING

plug

2шт.

48

162731A1

VALVE

relief

2шт.

49

154529A1

O-RING

relief valve

1шт.

50

154000A1

BACK-UP RING

1шт.

162730A1

VALVE

HOUSING ASSEMBLY - reactionless swing, Includes: Ref. 51 - 61

1шт.

51

162755A1

CASING

HOUSING - valve

1шт.

52

162726A1

PLUG

port

2шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

housing

2шт.

54

162729A1

VALVE

ASSEMBLY - reactionless swing, Includes: Ref. 55 - 57

2шт.

55

153973A1

BACK-UP RING

1шт.

56

154491A1

O-RING

valve assembly

1шт.

57

162713A1

RING

special

1шт.

58

154471A1

O-RING

housing

2шт.

59

154447A1

O-RING

housing

2шт.

60

863-8050

HEX SOC SCREW,M8 x 50mm, Cl 12.9

hex socket, 8 - 1.25 x 50 mm, class 12.9

4шт.

61

150435A1

COLUMN JACKET

dipstick

1шт.

62

150438A1

GAUGE

DIPSTICK - oil lube, swing motor

1шт.

162719A1

SEAL KIT

contains items 6, 15, 35, 36, 42, and 47

1шт.

Выбрано товаров: 67
