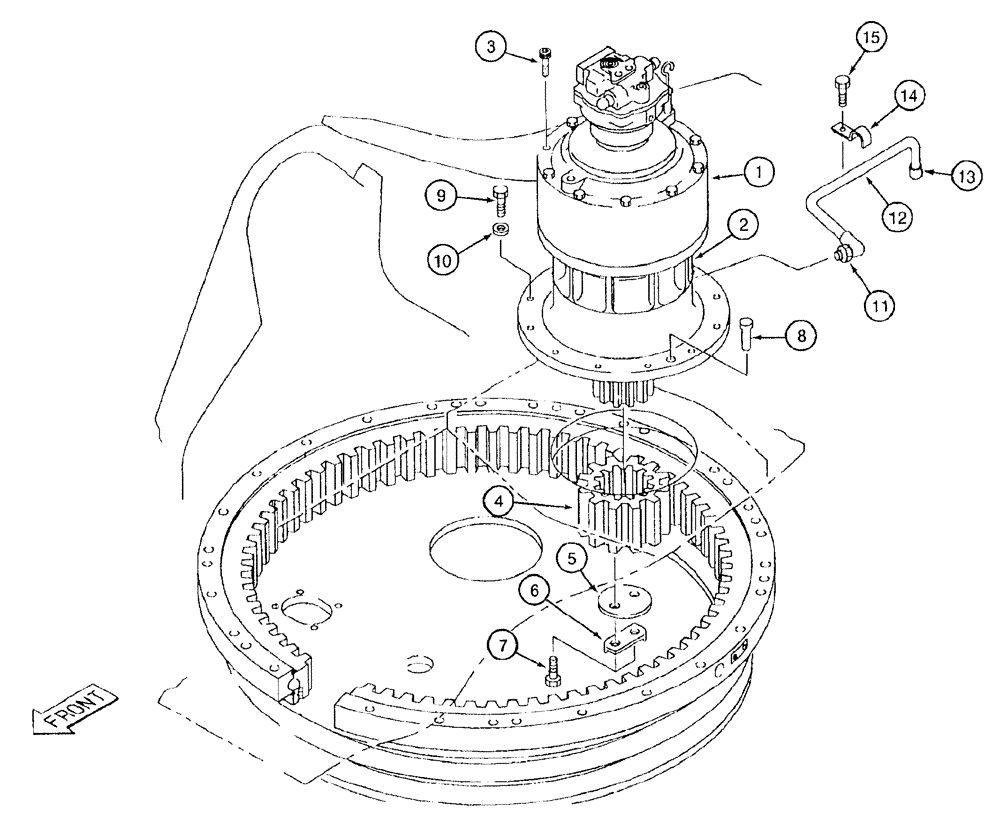

Запчасти Case 9050B (8-198) - SWING DR. ASSY. & MOUNTING W/O TIMBER KING PRIOR PIN EAC0501164, TIMBER KING PRIOR PIN EAC0531008 (08) - HYDRAULICS

162088A1

MOTOR

ASSEMBLY - swing drive, with reduction gear, Includes: Ref, 1 - 3

1шт.

1

162100A1

MOTOR, HYDRAULIC

ASSEMBLY - swing, parts list figure 8-202

1шт.

2

158853A1

REDUCER

GEAR ASSEMBLY - reduction, swing drive, see figure 8-210 for component repairs, for complete replacement order 165632A1 gear assembly on figure 8-212

1шт.

3

150483A1

BOLT,Hex Skt, M20

hex socket, special

12шт.

4

150506A1

PINION

GEAR - drive

1шт.

5

150285A1

PLATE, LOCKING

end

1шт.

6

114262A1

LOCK WASHER

RETAINER - plate

1шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

8

150317A1

HEADED PIN,24mm OD x 90mm L

locator

1шт.

9

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

12шт.

10

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

12шт.

11

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

12

173697A1

HOSE

drain

1шт.

13

162547A1

CAP

hose end

1шт.

14

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type, Hose

1шт.

15

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

1шт.
