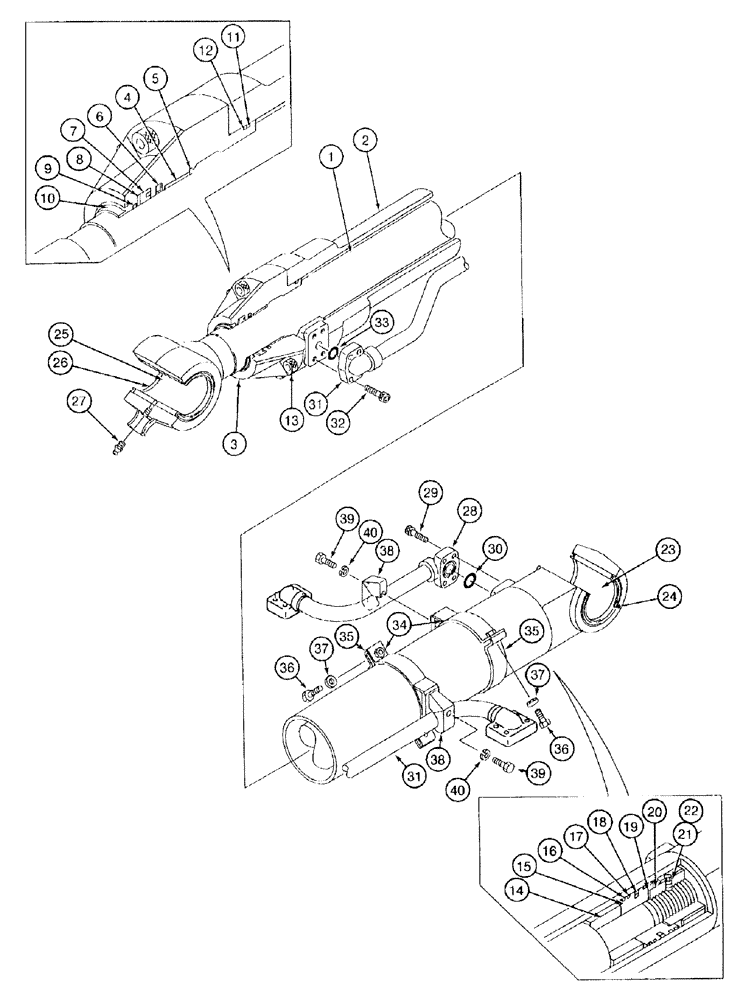

Запчасти Case 9050B (8-192) - BUCKET CYLINDER (08) - HYDRAULICS

173012A1

CYLINDER ASSY.

140 (5-1/2) ID x 1275 mm (50-1/4 inch) stroke, bucket, Includes: Ref. 1 - 40

1шт.

1

162739A1

PISTON ROD

cylinder

1шт.

2

162740A1

JACK BODY

TUBE - cylinder

1шт.

3

162738A1

CYLINDER END CAP

GLAND

1шт.

4

155418A1

BUSHING

gland

1шт.

5

155706A1

RING, SNAP

RING SNAP retaining

1шт.

6

155148A1

SEALING RING

buffer

1шт.

7

155112A1

RING

U-cup

1шт.

8

155238A1

BACK-UP RING

1шт.

9

155327A1

RING

piston rod

1шт.

10

162700A1

WIPER SEAL

WIPER - piston rod

1шт.

11

154776A1

O-RING

piston rod

1шт.

12

155233A1

SEALING RING

1шт.

13

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

hex socket, 22 - 2.5 x 75 mm, class 12.9

8шт.

14

162753A1

RING

RING - cushion

1шт.

15

155980A1

PISTON

cylinder

1шт.

16

155307A1

RING

slide

2шт.

17

155321A1

RING

slide

2шт.

18

155312A1

SEALING RING

piston

1шт.

19

155732A1

SHIM

special

1шт.

20

156229A1

NUT

piston retaining

1шт.

21

156228A1

SET SCREW

1шт.

22

155981A1

BALL

Steel

1шт.

23

155423A1

BUSHING

Tube, closed end

1шт.

24

155151A1

WIPER SEAL

WIPER - mounting pin, closed end

2шт.

25

155424A1

BUSHING

Cylinder rod end

1шт.

26

164147A1

WIPER SEAL

WIPER - pin, rod end

2шт.

27

153630A1

LUBE NIPPLE

grease, straight

1шт.

28

173382A1

HYD TUBE

hydraulic closed end; 10 mm threaded Holes at Hose end, No longer Used, Order 1722004a1

1шт.

28a

172004A1

TUBE

12 mm threaded Holes at Hose End

1шт.

29

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

30

154543A1

O-RING

Tube

1шт.

31

173383A1

HYD TUBE

hydraulic, rod end

1шт.

32

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

33

154543A1

O-RING

Tube

1шт.

34

156378A1

MOUNTING CLIP

band

2шт.

35

156375A1

MOUNTING CLIP

CLAMP

2шт.

36

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

4шт.

37

156227A1

WASHER

lock, special

4шт.

38

155716A1

COLLAR

tube

2шт.

39

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

40

892-11012

LOCK WASHER,M12

2шт.

162733A1

SEAL KIT

repair, cylinder seal

1шт.
