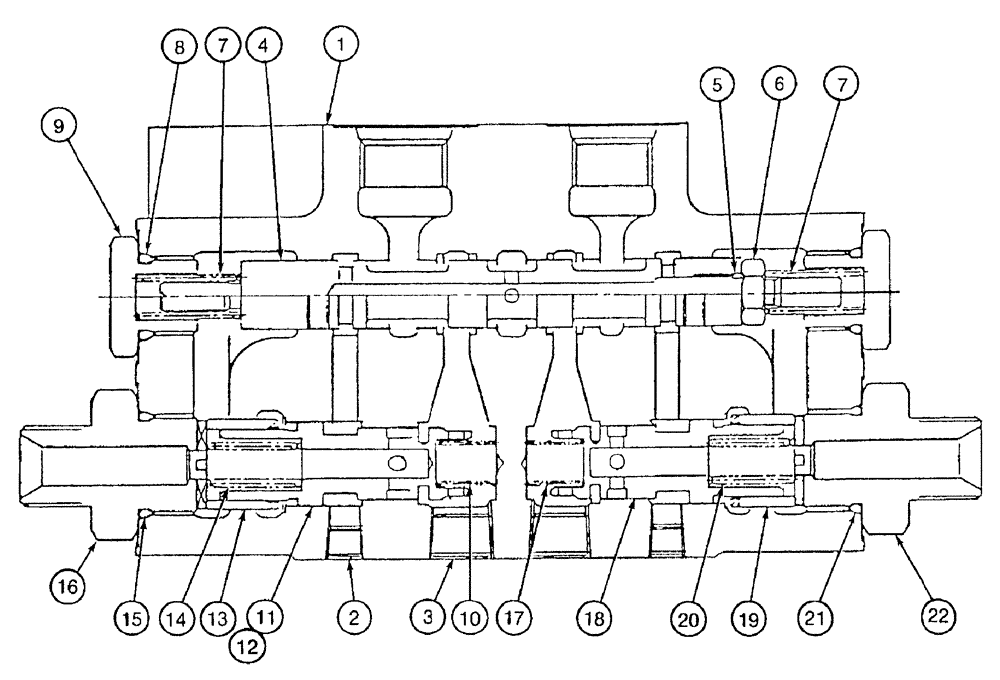

Запчасти Case 9050B (8-180) - CUSHION VALVE (08) - HYDRAULICS

162078A1

VALVE

ASSEMBLY - cushion, models without load hold

1шт.

163632A1

VALVE

ASSEMBLY - cushion, models with load hold, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

165001A1

PLUG

port

11шт.

3

165002A1

PLUG

port

8шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

5

154446A1

O-RING

spool

2шт.

6

160072A1

SCREW

GUIDE - spring

2шт.

7

160256A1

SPRING

compression

4шт.

8

154474A1

O-RING

plug

4шт.

9

160073A1

PLUG

valve cavity

4шт.

10

160257A1

SPRING

compression, inner

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

13

160092A1

COLLAR

spool

2шт.

14

160258A1

SPRING

compression

2шт.

15

154486A1

O-RING

plug

2шт.

16

160074A1

PLUG

ADAPTER - straight

2шт.

17

160257A1

SPRING

compression, inner

2шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

19

160092A1

COLLAR

spool

2шт.

20

160258A1

SPRING

compression

2шт.

21

154486A1

O-RING

plug

2шт.

22

160074A1

PLUG

ADAPTER - straight

2шт.
