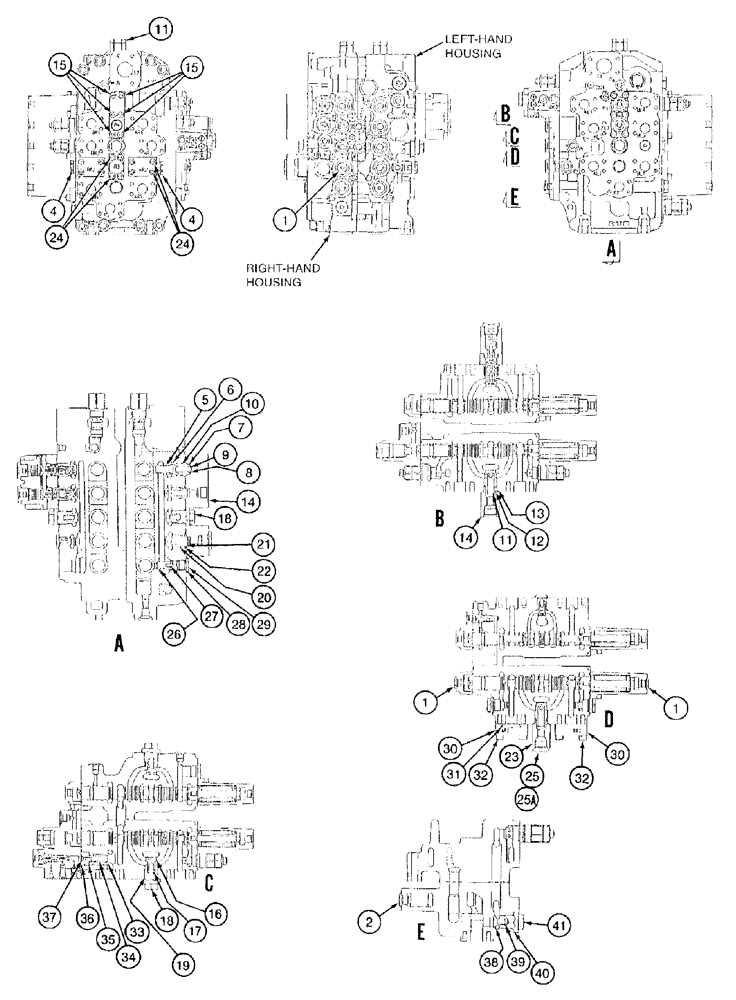

Запчасти Case 9050B (8-168) - CONTROL VALVE, MISCELLANEOUS VALVES AND COMPONENTS, RIGHT-HAND HOUSING (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
165619A1
VALVE
ASSEMBLY - control, continued, Includes: Ref. 1 - 41
1шт.
1
163369A1
PLUG
port
3шт.
154475A1
O-RING
plug
1шт.
2
163370A1
PLUG
port
1шт.
3
163371A1
VALVE
ASSEMBLY - relief, see parts list figure 8-166
1шт.
4
155438A1
PLUG
port, Includes: Ref. 4A - 4C
2шт.
4b
160368A1
BACK-UP RING
for inner o-ring, not shown
1шт.
4c
160370A1
O-RING
plug, inner, not shown
1шт.
5
163387A1
VALVE POPPET
1шт.
6
160237A1
SPRING
compression
1шт.
7
163386A1
SLEEVE
valve
1шт.
8
160187A1
VALVE POPPET
VALVE - poppet
1шт.
9
160242A1
SPRING
compression
1шт.
10
154529A1
O-RING
valve
1шт.
11
160186A1
WELL
VALVE - poppet
1шт.
12
160241A1
SPRING
compression
1шт.
13
154529A1
O-RING
valve
1шт.
14
163384A1
FLANGE
HOUSING - valve
1шт.
15
863-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
6шт.
16
160189A1
WELL
PLUNGER - valve
1шт.
17
160243A1
SPRING
compression
1шт.
18
160064A1
PLUG
valve
1шт.
19
155224A1
O-RING
plug
1шт.
20
160186A1
WELL
VALVE - poppet
1шт.
21
160241A1
SPRING
compression
1шт.
22
154529A1
O-RING
valve
1шт.
23
163385A1
FLANGE
HOUSING - valve
1шт.
24
863-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
4шт.
25
155449A1
PLUG
port, Includes: Ref. 25A
1шт.
26
155931A1
VALVE POPPET
poppet
1шт.
27
156026A1
SPRING
compression
1шт.
28
155222A1
O-RING
valve
1шт.
29
163365A1
PLUG
port
1шт.
30
156278A1
COVER
PLATE - auxiliary port cover
2шт.
32
863-10040
HEX SOC SCREW,M10 x 40mm, Cl 12.9
8шт.
33
163390A1
VALVE POPPET
1шт.
34
163394A1
SPRING
compression
1шт.
35
163374A1
SPACER
special, cover, parts list on figure 8-166
1шт.
36
154549A1
O-RING
cover
1шт.
37
154471A1
O-RING
cover
1шт.
38
160189A1
WELL
PLUNGER - valve
1шт.
39
160243A1
SPRING
compression
1шт.
40
155224A1
O-RING
valve
1шт.
41
160064A1
PLUG
valve
1шт.
Выбрано товаров: 48
