Заказать запчасти

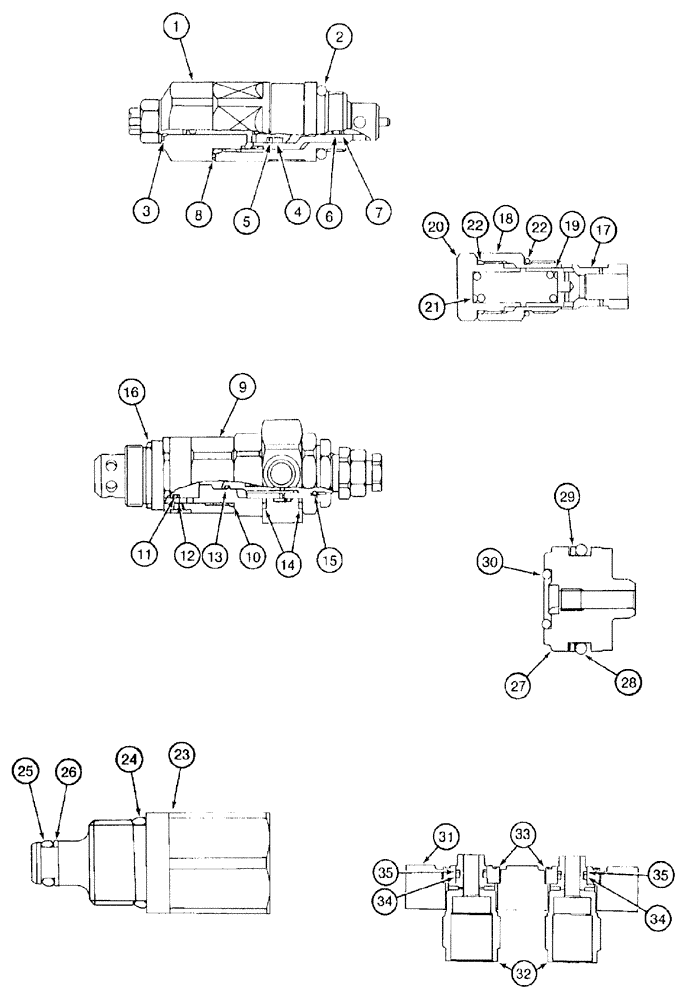

Запчасти Case 9050B (8-166) - CONTROL VALVE, CIRCUIT RELIEF VALVE ASSEMBLIES AND PLUGS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
165619A1
VALVE
ASSEMBLY - control, continued, Includes: Ref. 1 - 36
1шт.
1
164457A1
VALVE
ASSEMBLY - relief
1шт.
1
163379A1
VALVE
ASSEMBLY - relief
1шт.
1
163380A1
VALVE
ASSEMBLY - relief, Includes: Ref. 2 - 8
1шт.
3
154463A1
O-RING
valve
1шт.
4
164906A1
O-RING
valve
1шт.
5
164905A1
BACK-UP RING
2шт.
6
163323A1
O-RING
valve
1шт.
7
164575A1
BACK-UP RING
2шт.
9
166895A1
VALVE, PRESSURE RELI
EF ASSEMBLY - relief, Includes: Ref. 10 - 16
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - valve
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - valve
1шт.
12
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - valve
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - valve
2шт.
15
NSS
NOT SOLD SEPARAT
O-RING - valve
1шт.
17
163371A1
VALVE
ASSEMBLY - relief, Includes: Ref. 18 - 22
1шт.
18
NSS
NOT SOLD SEPARAT
PLUG - valve
1шт.
19
NSS
NOT SOLD SEPARAT
POPPET - valve
1шт.
20
NSS
NOT SOLD SEPARAT
PLUG - cap
1шт.
21
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
22
155224A1
O-RING
plug
2шт.
164466A1
PLUG
ASSEMBLY - no relief, Includes: Ref. 23 - 26
1шт.
23
NSS
NOT SOLD SEPARAT
PLUG - no relief
1шт.
25
160370A1
O-RING
plug
1шт.
26
160368A1
BACK-UP RING
1шт.
163374A1
SPACER
special, cover, Includes: Ref. 27 - 30
1шт.
27
NSS
NOT SOLD SEPARAT
PLUG - special
1шт.
28
154507A1
O-RING
special
1шт.
29
153987A1
BACK-UP RING
1шт.
30
154471A1
O-RING
plug
1шт.
31
163375A1
SPACER
special, cover, Includes: Ref. 32 - 35
1шт.
32
NSS
NOT SOLD SEPARAT
SLEEVE - spacer
2шт.
33
NSS
NOT SOLD SEPARAT
SPACER - sleeve
2шт.
34
154471A1
O-RING
plug
2шт.
35
153958A1
BACK-UP RING
2шт.
36
157249A1
VALVE PRESSURE RELIE
port relief, for models with auxiliary hydraulics, includes ref numbers 2 thru 8, not shown, see figures 8-110 and 8-118 for location
2шт.
Выбрано товаров: 41
