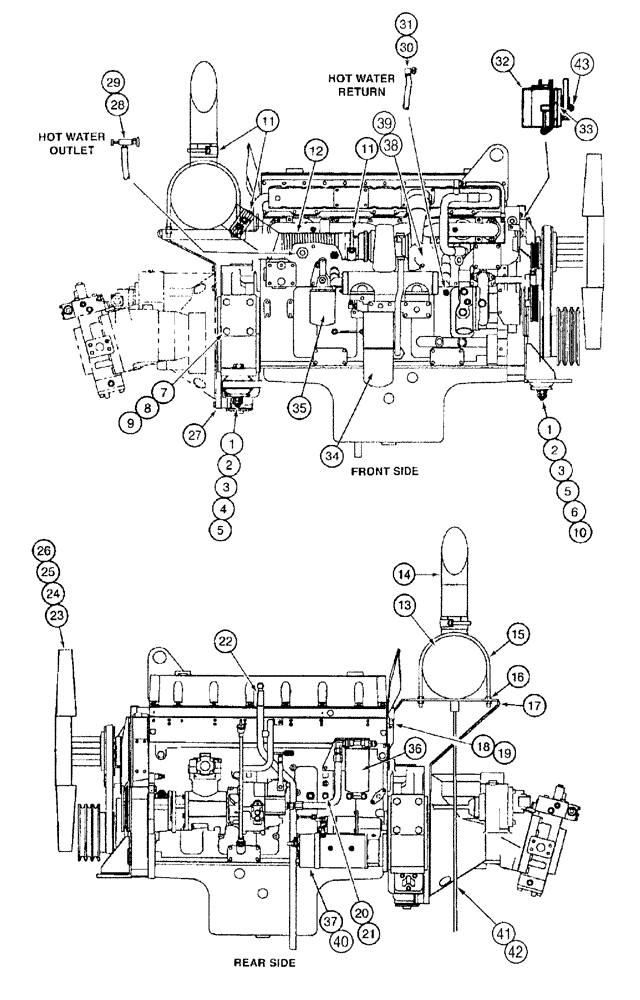

Запчасти Case 9050B (2-002) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

248417A1

ENGINE ASSEMBLY - Emissions Certified, M11-C265 Cummins, excavator

1шт.

See your authorized Cummins engine dealer for servicing engine and engine replacement.

1шт.

1

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

4шт.

2

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special

8шт.

3

829-1420

NUT,M20, Cl 10

8шт.

4

150877A1

RUBBER WASHER

ISOLATOR - rubber

4шт.

5

173060A1

PLATE

mounting, front and rear

4шт.

6

151304A1

INSULATOR BLOCK

RUBBER BLOCK ISOLATOR - rubber

4шт.

7

173478A1

SUPPORT

engine mounting, rear

2шт.

8

170914A1

BOLT

hex, special

8шт.

9

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

8шт.

10

173194A1

SUPPORT

engine mounting, front

1шт.

11

173196A1

CLAMP

special, exhaust pipe

3шт.

12

173195A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST, Serial Range: turbocharger-muffler

1шт.

13

171537A1

MUFFLER

engine

1шт.

14

173716A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

15

170901A1

U-BOLT,1/2" - 13 x 257.20mm W x 293.60mm L

BOLT "U" muffler

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

17

173189A1

BRACKET

muffler, mounting

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

19

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

20

170905A1

BUSHING

reducer

1шт.

21

170663A1

SWITCH

oil pressure, engine

1шт.

22

L128677

HOSE,15.9mm ID x 1230mm L

Breather

1шт.

23

173197A1

FAN

cooling

1шт.

24

892-11010

LOCK WASHER,M10

6шт.

25

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

6шт.

26

171277A1

BOLT

hex, special

6шт.

27

170673A1

SENSOR

tachometer

1шт.

28

171029A1

BUSHING

reducer

1шт.

29

171030A1

VALVE

shutoff, water

1шт.

30

171031A1

STEM

hose

1шт.

31

171029A1

BUSHING

reducer

1шт.

32

170666A1

ALTERNATOR

24 volt, 70 amp

1шт.

33

170909A1

WASHER

special

7шт.

34

90-7101T1

FILTER, ENGINE OIL

FILTER, OIL engine

1шт.

35

A77544

FILTER

water conditioning, precharge

1шт.

36

90-3941T1

SEPARATOR

1шт.

37

173506A1

COVER

jump start

1шт.

38

153493A1

BUSHING

reducer

1шт.

39

159147A1

SENSOR

temperature

1шт.

40

231-24109

LOCK NUT,#10-32, GB

hex, self-locking, No. 10 NF

1шт.

41

171538A1

TUBE

drain, muffler, if used

1шт.

42

170069A1

CLAMP

drain tube

1шт.

43

171776A1

NUT

special, alternator pulley retaining

1шт.
