(8-162) - CONTROL VALVE, MAIN PILOT VALVES

Запчасти Case 9050B (8-162) - CONTROL VALVE, MAIN PILOT VALVES (08) - HYDRAULICS

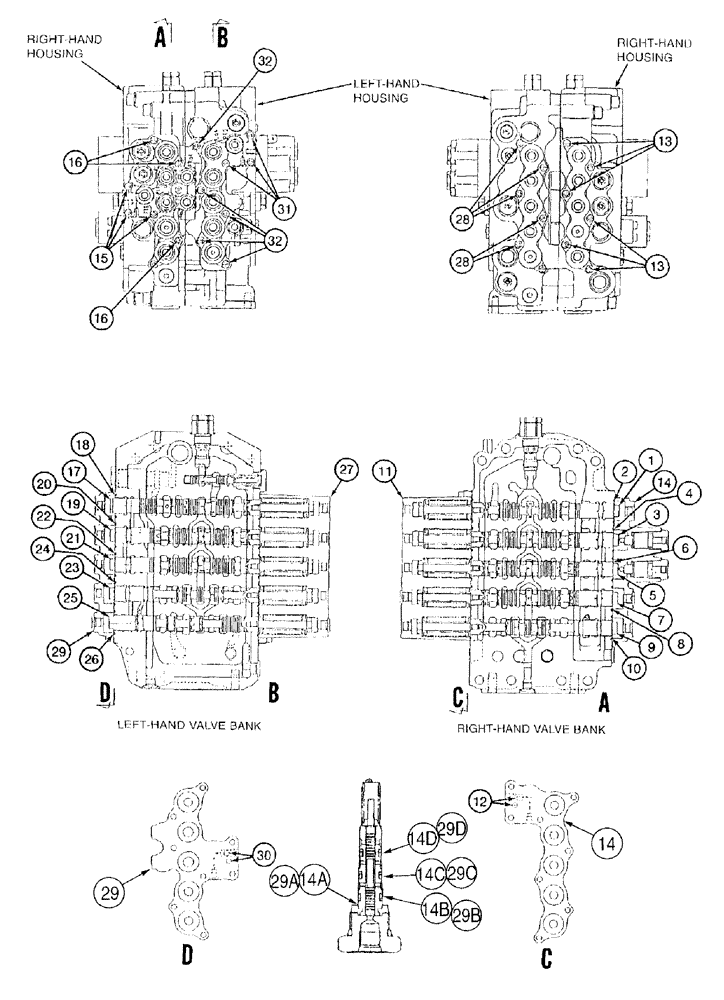

Схема запчастей Case 9050B - (8-162) - CONTROL VALVE, MAIN PILOT VALVES (08) - HYDRAULICS
16
14d
11
14
32
24
25
13
29c
1
9
20
14
12
31
32
23
21
30
18
27
3
8
29a
5
26
10
28
29
15
2
16
13
6
29b
28
14b
7
29
14c
4
29d
17
19
22
14a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165619A1

VALVE

ASSEMBLY - control, continued, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (arm-in/arm out functions) component parts not serviced separately

1шт.

2

154569A1

O-RING

plunger assembly

2шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (swing-left/swing-right functions) component parts not serviced separately

1шт.

4

154569A1

O-RING

plunger assembly

2шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (boom-up/boom-down functions) component parts not serviced separately

1шт.

6

154569A1

O-RING

plunger assembly

2шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (left track travel functions) component parts not serviced separately

1шт.

8

154569A1

O-RING

plunger assembly

2шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (internal flow control functions) component parts not serviced separately

1шт.

10

154569A1

O-RING

plunger assembly

2шт.

11

163392A1

HYD VALVE SECTION

valve, multiple, right-hand bank

1шт.

12

154447A1

O-RING

cover

2шт.

13

861-10028

HEX SOC SCREW,M10 x 28mm, Cl 12.9

hex socket, 10 - 1.5 x 28 mm, class 12.9

6шт.

14

163373A1

CAP

valve, multiple, right-hand bank, with anti-drift pilot valve, Includes: Ref. 14A - 14D

1шт.

14a

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - anti-drift pilot

1шт.

14b

154470A1

O-RING

outer

1шт.

14c

154466A1

O-RING

middle

1шт.

14d

154447A1

O-RING

inner

1шт.

15

861-10100

HEX SOC SCREW,M10 x 100mm, Cl 12.9

hex socket, 10 - 1.5 x 100 mm, class 12.9

3шт.

16

861-10028

HEX SOC SCREW,M10 x 28mm, Cl 12.9

hex socket, 10 - 1.5 x 28 mm, class 12.9

3шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (arm-in/arm-out functions) component parts not serviced separately

1шт.

18

154569A1

O-RING

plunger assembly

2шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (bucket-open/bucket-close functions) component parts not serviced separately

1шт.

20

154569A1

O-RING

plunger assembly

2шт.

21

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (boom-up/boom-down functions) component parts not serviced separately

1шт.

22

154569A1

O-RING

plunger assembly

2шт.

23

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (auxiliary option functions) component parts not serviced separately

1шт.

24

154569A1

O-RING

plunger assembly

2шт.

25

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (right track travel functions) component parts not serviced separately

1шт.

26

154569A1

O-RING

plunger assembly

2шт.

27

163392A1

HYD VALVE SECTION

valve, multiple, left-hand bank

7шт.

28

861-10028

HEX SOC SCREW,M10 x 28mm, Cl 12.9

hex socket, 10 - 1.5 x 28 mm, class 12.9

1шт.

29

163372A1

HYD VALVE SECTION

valve, multiple, left-hand bank, with anti-drift pilot valve, Includes: Ref. 29A - 29D

1шт.

29a

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - anti-drift pilot

1шт.

29b

154470A1

O-RING

outer

1шт.

29c

154466A1

O-RING

middle

1шт.

29d

155086A1

O-RING

inner

1шт.

30

154447A1

O-RING

cover

2шт.

31

861-10100

HEX SOC SCREW,M10 x 100mm, Cl 12.9

hex socket, 10 - 1.5 x 100 mm, class 12.9

3шт.

32

861-10028

HEX SOC SCREW,M10 x 28mm, Cl 12.9

hex socket, 10 - 1.5 x 28 mm, class 12.9

5шт.
