Запчасти Case 9050B (8-152) - MANUALLY OPERATED CONTROL VALVE (08) - HYDRAULICS

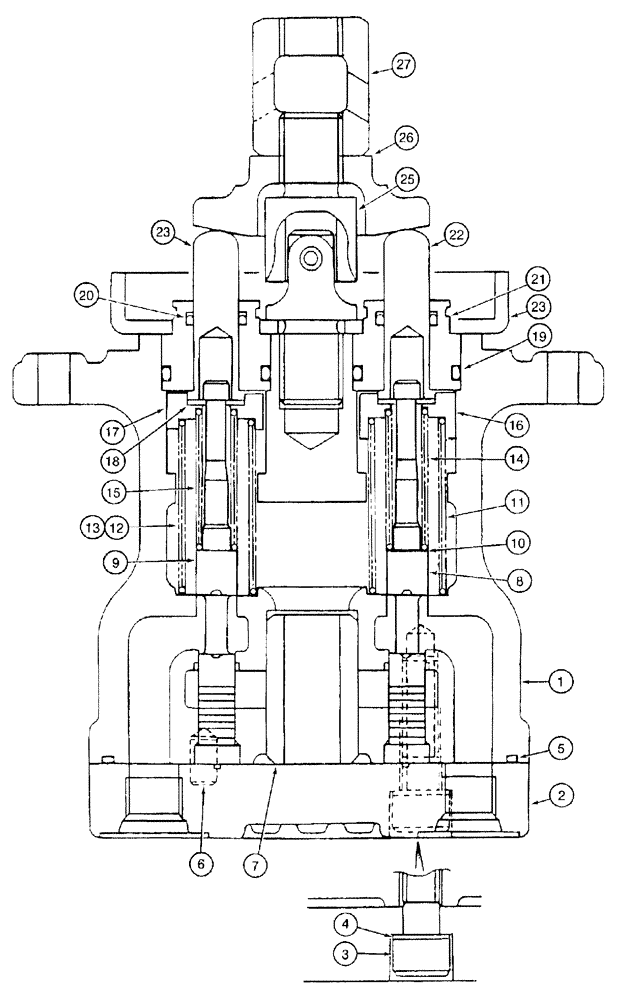

Схема запчастей Case 9050B - (8-152) - MANUALLY OPERATED CONTROL VALVE (08) - HYDRAULICS
7
21
4
5
23
10
9
16
11
14
27
17
18
25
2
15
26
8
12
13
3
6
23
22
19
1
20

Артикул

Название

Примечание

Количество

162097A1

VALVE

ASSEMBLY - remote control, P.I.N. EAC0501122

1шт.

164782A1

CONTROL BLOCK

ASSEMBLY - remote control, Includes: Ref. 1 - 27, Start Serial: EAC0501123

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

160310A1

COVER

PLATE - port

1шт.

3

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

4

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

Part of the Seal Kit P/N 160218A1

1шт.

5

155167A1

O-RING

end, Serial Range: plate-housing

1шт.

Part of the Seal Kit P/N 160218A1

1шт.

6

738-1510

LOCK PIN,M5 x 10, Slotted

1шт.

7

160036A1

BUSHING

valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

10

160285A1

WASHER

flat, special

4шт.

11

160252A1

SPRING

valve, outer, port 3, 162097A1 valve only

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, port 3, 164782A1 valve only

1шт.

12

160253A1

SPRING

valve, outer, ports 2 and 4, 162097A1 valve only

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, ports 2 and 4, 164782A1 valve only

2шт.

13

160251A1

SPRING

valve, outer, port 1, 162097A1 valve only

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, port 1, 164782A1 valve only

1шт.

14

160953A1

SPRING

valve, spool, inner, ports 1 and 3, 162097A1 valve only

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - valve, spool, inner, ports 1 and 3, 164782A1 valve only

2шт.

15

160954A1

SPRING

valve, spool, inner, ports 2 and 4, 162097A1 valve only

2шт.

15

NSS

NOT SOLD SEPARAT

SPRING - valve, spool, inner, ports 2 and 4, 164782A1 valve only

2шт.

16

160234A1

SPRING SEAT

(ports 1 and 3)

2шт.

17

160233A1

SPRING SEAT

(ports 2 and 4)

2шт.

18

LA00056

WASHER

flat, special; Replaces 160286A1

8шт.

19

154491A1

O-RING

push rod guide, outer

4шт.

Part of the Seal Kit P/N 160218A1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - push rod

4шт.

Part of the Seal Kit P/N 160218A1

1шт.

21

160070A1

PLUG

GUIDE - push rod

4шт.

22

160026A1

THREADED ROD

push (ports 1 and 3)

2шт.

23

160027A1

THREADED ROD

push (ports 2 and 4)

2шт.

24

160309A1

RETAINER

PLATE - push rod retaining

1шт.

25

155255A1

FLEXIBLE JOINT

PIVOT - remote control valve

1шт.

26

155577A1

PIVOTING ARM

ROCKER - remote control valve

1шт.

27

156165A1

NUT

hex

1шт.

160218A1

SEAL KIT

seal, contains REF. 4, 5, 19 & 20, in quantities shown, see note

1шт.

Выбрано товаров: 39
