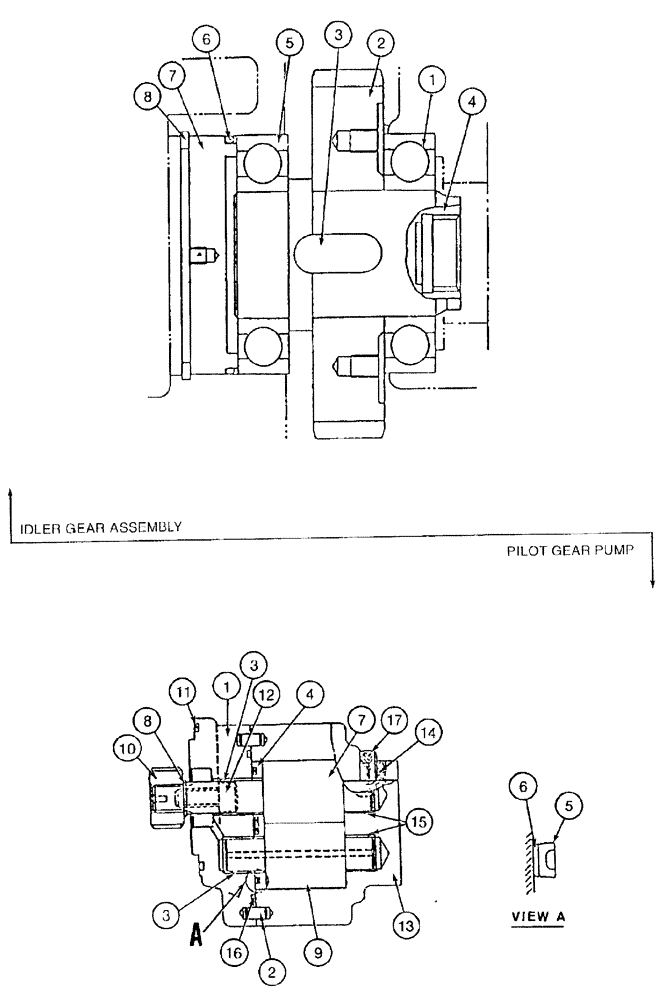

Запчасти Case 9050B (8-142) - HYDRAULIC PUMP, IDLER GEAR ASSEMBLY AND PILOT GEAR PUMP, PILOT GEAR PUMP (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

GEAR SUBASSEMBLY - idler, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - ball, component parts not serviced separately, idler gear

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

3

NSS

NOT SOLD SEPARAT

KEY - drive, idler gear

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - jack, idler gear

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - ball, component parts not serviced separately, idler gear

1шт.

6

154687A1

O-RING

retainer, idler gear

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - bearing, idler gear

1шт.

8

800-2185

SNAP RING,M85 x 3, Int

Idler Gear

1шт.

155834A1

PUMP, HYDRAULIC

ASSEMBLY - pilot gear, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - pump, pilot gear

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - dowel, pilot gear pump

2шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - pump, pilot gear

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE - thrust, pilot gear pump

1шт.

5

163565A1

RING

seal, pilot gear pump

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, pilot gear pump

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - drive, pilot gear pump

1шт.

8

800-1114

SNAP RING,M14, Ext

external retaining, No. 14, pilot gear pump

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - driven, pilot gear pump

1шт.

10

NSS

NOT SOLD SEPARAT

COUPLING - pump, pilot gear pump

1шт.

11

155194A1

O-RING

pump base, pilot gear pump

1шт.

12

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

Pilot gear pump

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - pilot gear pump

1шт.

14

163574A1

PLUG

port, pilot gear pump

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - pump, pilot gear

2шт.

16

155193A1

O-RING

pump housing, pilot gear

1шт.

17

163576A1

HEX SOC SCREW

special, pilot gear pump

4шт.
