(8-138) - HYDRAULIC PUMP, GEAR DRIVEN PISTON PUMP

Запчасти Case 9050B (8-138) - HYDRAULIC PUMP, GEAR DRIVEN PISTON PUMP (08) - HYDRAULICS

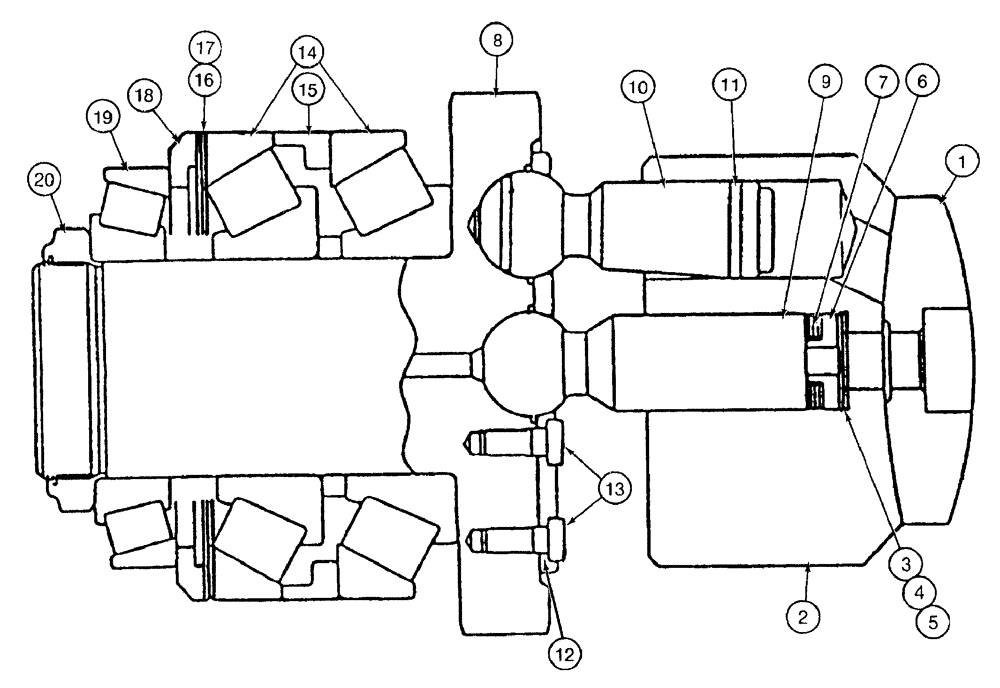

Схема запчастей Case 9050B - (8-138) - HYDRAULIC PUMP, GEAR DRIVEN PISTON PUMP (08) - HYDRAULICS
10
18
19
9
2
5
11
3
16
15
13
4
20
17
14
6
12
1
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

163573A1

ROTOR ASSY.

PUMP ASSEMBLY - piston, gear driven, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - control

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - belleview type

4шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - cylinder drive

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - center

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - pump

7шт.

11

NSS

NOT SOLD SEPARAT

RING - piston

7шт.

12

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

13

163572A1

SCREW

special

14шт.

14

NSS

NOT SOLD SEPARAT

BEARING - axial thrust

2шт.

15

NSS

NOT SOLD SEPARAT

SPACER - bearing

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - bearing

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - bearing

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - bearing

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - axial thrust

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - bearing retaining

1шт.
