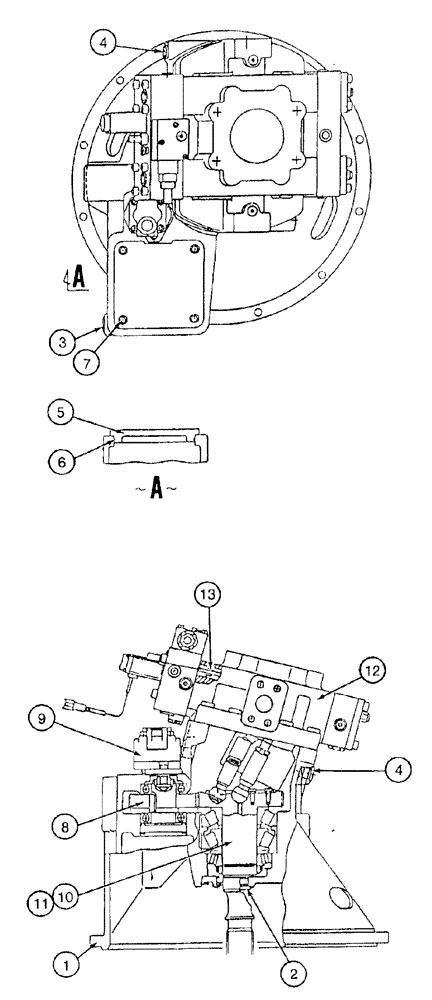

Запчасти Case 9050B (8-136) - HYDRAULIC PUMP, HOUSING, MAJOR SUBASSEMBLIES AND RELATED COMPONENTS (08) - HYDRAULICS

165169A1

PUMP, HYDRAULIC

ASSEMBLY, Includes: Ref. 1 - 13

1шт.

165169A1R

REMAN-HYD PUMP

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), ASSEMBLY (10/96-)

1шт.

165169A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - hydraulic pump

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

5

NSS

NOT SOLD SEPARAT

COVER - access

1шт.

6

155186A1

O-RING

cover

1шт.

7

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

4шт.

8

NSS

NOT SOLD SEPARAT

GEAR SUBASSEMBLY - idler, parts list figure 8-142

1шт.

9

155834A1

PUMP, HYDRAULIC

ASSEMBLY - pilot gear, parts list figure 8-142

1шт.

10

163573A1

ROTOR ASSY.

PUMP ASSEMBLY - piston, gear driven, parts list figure 8-138

1шт.

11

163571A1

ROTOR ASSY.

PUMP ASSEMBLY - shaft driven, parts list figure 8-140

1шт.

12

NSS

NOT SOLD SEPARAT

CONTROLLER ASSEMBLY - pump, parts list figure 8-144

1шт.

13

163875A1

SPRING

ASSEMBLY - control, parts list figure 8-146

1шт.
