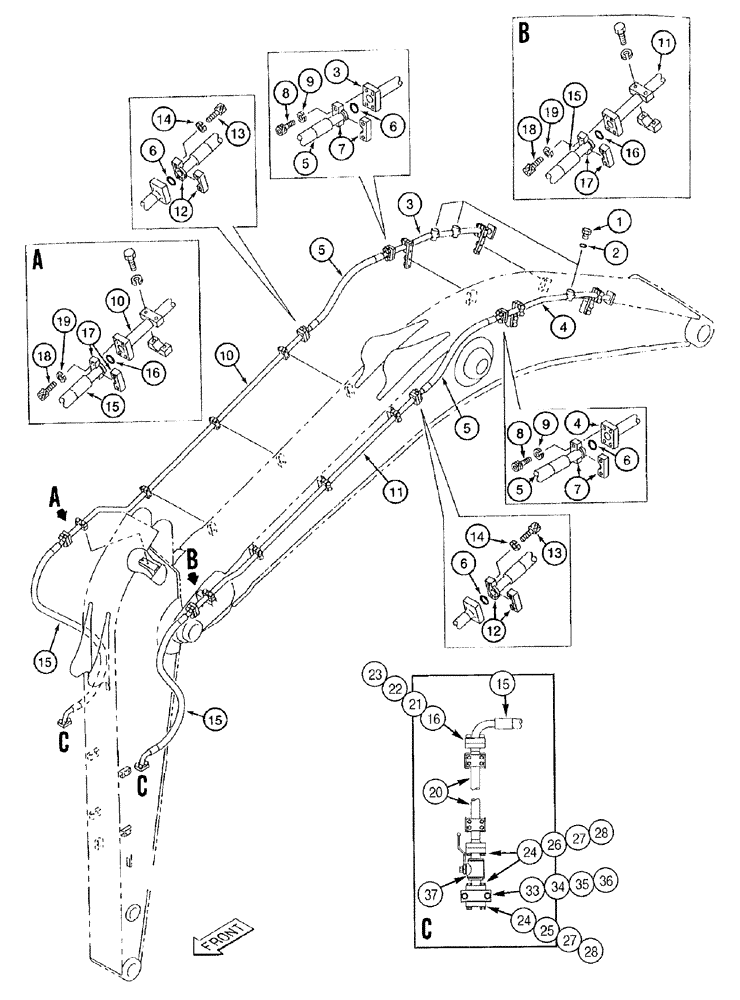

Запчасти Case 9050B (8-134) - AUX. EQUIPMENT OPTIONS-SUPPLY & CYLINDER LINE, 2.63, 3.23 OR 4.03 METER ARM, PIN EAC0501270 & AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152924A1
PLUG
port, if used, Includes: Ref. 2
3шт.
3
173895A1
TUBE
at lower boom, right-hand side
1шт.
4
173895A1
TUBE
at lower boom, left-hand side
1шт.
5
173897A1
TUBE
boom, center
2шт.
7
150124A1
FLANGE
split
4шт.
8
827-14055
BOLT,Hex, M14 x 2 x 55mm, Cl 10.9
Hex, M14 x 3 x 55, 10.9
8шт.
9
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
8шт.
10
171810A1
TUBE
upper boom, right-hand
1шт.
11
171810A1
TUBE
upper boom, left-hand
1шт.
12
150124A1
FLANGE
split
4шт.
13
827-14055
BOLT,Hex, M14 x 2 x 55mm, Cl 10.9
Hex, M14 x 3 x 55, 10.9
8шт.
14
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
8шт.
15
171726A1
HOSE ASSY.
boom-to-arm junction, 2.63 M arm only
2шт.
15
173902A1
HOSE ASSY.
boom-to-arm junction, 3.23 M arm only
2шт.
15
173910A1
HOSE ASSY.
boom-to-arm junction, 4.03 M arm only
2шт.
17
150124A1
FLANGE
split
4шт.
18
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
8шт.
19
150336A1
SPRING WASHER
lock, 14 mm
8шт.
20
173909A1
TUBE
4.03 M arm at stop valve
2шт.
20
173901A1
TUBE
3.23 M arm at stop valve
2шт.
20
171727A1
TUBE
2.63 M arm at stop valve
2шт.
21
150124A1
FLANGE
split
4шт.
22
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
8шт.
23
150336A1
SPRING WASHER
lock, 14 mm
8шт.
25
170794A1
FLANGE
end cap
2шт.
26
150124A1
FLANGE
split
8шт.
27
827-14050
BOLT,Hex, M14 x 2 x 50mm, Cl 10.9
24шт.
28
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
24шт.
33
171724A1
MANIFOLD
hydraulic
2шт.
34
814-16090
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
4шт.
35
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
4шт.
36
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
4шт.
37
171725A1
VALVE
stop
2шт.
Выбрано товаров: 37
