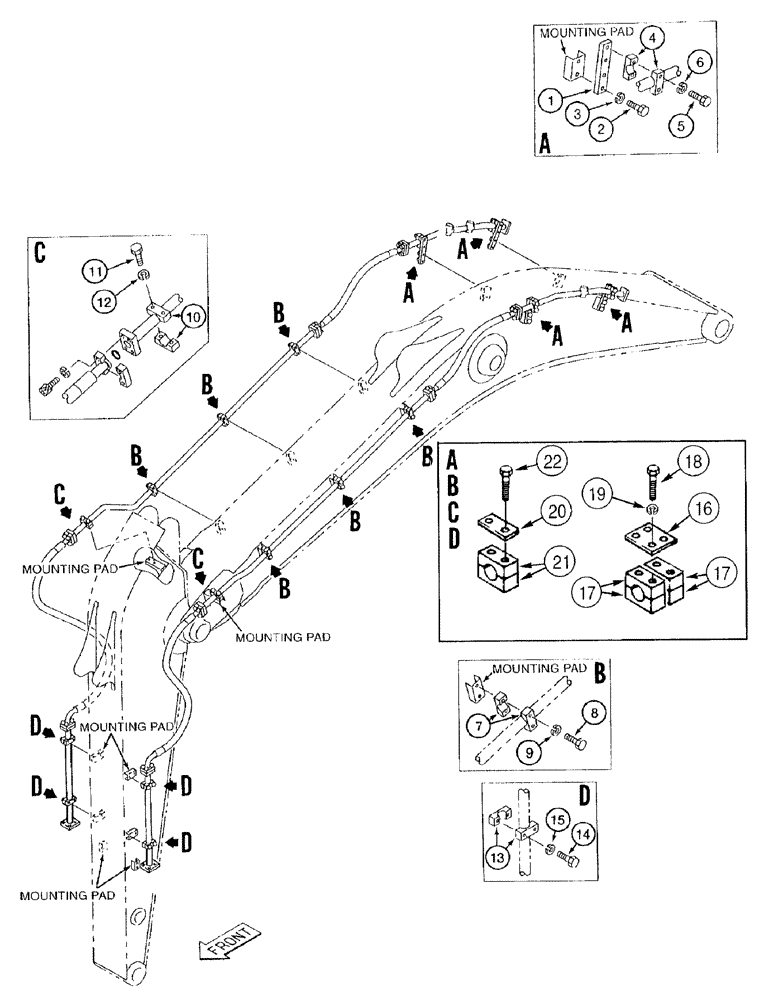

Запчасти Case 9050B (8-128) - AUXLRY EQUIPMT OPTIONS, SUPPLY & CYLINDER LINE MOUNTING,PRIOR TO PIN EAC0501270,PIN EAC0501270 & AFT (08) - HYDRAULICS

1

162614A1

BAR

BRACKET - mounting, Serial Range: -EAC0501270

4шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

, Serial Range: -EAC0501270

8шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

to EAC0501270

8шт.

4

171166A1

CLAMP

tube, Serial Range: -EAC0501270

8шт.

5

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

, Serial Range: -EAC0501270

8шт.

6

892-11012

LOCK WASHER,M12

, Serial Range: -EAC0501270

8шт.

7

171166A1

CLAMP

tube, Serial Range: -EAC0501270

12шт.

8

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

, Serial Range: -EAC0501270

12шт.

9

892-11012

LOCK WASHER,M12

, Serial Range: -EAC0501270

12шт.

10

171166A1

CLAMP

tube, Serial Range: -EAC0501270

4шт.

11

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

, Serial Range: -EAC0501270

4шт.

12

892-11012

LOCK WASHER,M12

to EAC0501270

4шт.

13

171166A1

CLAMP

tube, Serial Range: -EAC0501270

8шт.

14

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

, Serial Range: -EAC0501270

8шт.

15

892-11012

LOCK WASHER,M12

, Serial Range: -EAC0501270

8шт.

16

171806A1

PLATE

support, tube clamp, four hole, Start Serial: EAC0501270

8шт.

17

171807A1

CLAMP

tube, Start Serial: EAC0501270

16шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

, Start Serial: EAC0501270

32шт.

19

492-11038

LOCK WASHER,3/8"

, Start Serial: EAC0501270

32шт.

20

171805A1

PLATE

support, tube clamp, two hole, Start Serial: EAC05801270

4шт.

21

171807A1

CLAMP

tube, Start Serial: EAC0501270

4шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

, Start Serial: EAC0501270

8шт.
