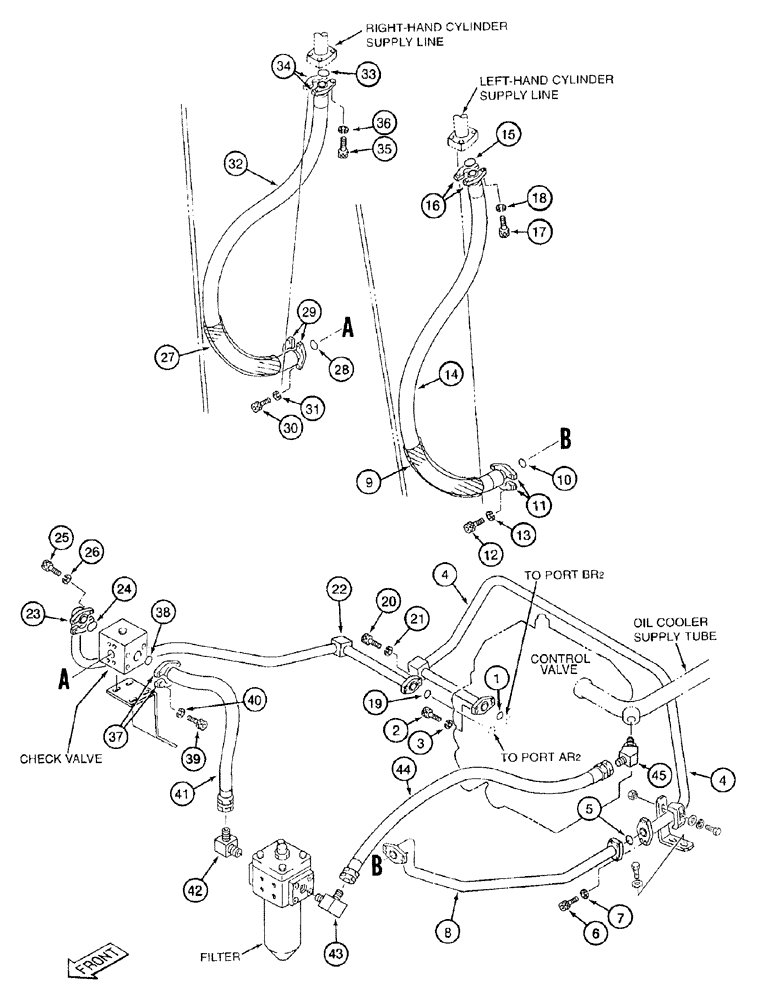

Запчасти Case 9050B (8-124) - DOUBLE ACTION AUXILIARY EQUIPMT OPTION,CYLNDR SUPPLY & RELIEF LINES,L.H. SUPPLY LINES, RELIEF LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
2
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Left-hand supply lines
4шт.
3
112309A1
LOCK WASHER
lock, special, left-hand supply lines
4шт.
4
173079A1
TUBE
left-hand supply line (control valve port "BR2" to left-hand supply tube)
1шт.
6
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Left-hand supply lines
4шт.
7
112309A1
LOCK WASHER
lock, special, left-hand supply lines
4шт.
8
173082A1
TUBE,34 mm OD
left-hand supply line (left-hand supply line to left-hand cylinder supply line)
1шт.
9
159498A1
GUARD
hose, left-hand supply lines
1шт.
10
153626A1
O-RING
hose, left-hand supply lines
1шт.
11
150124A1
FLANGE
split, left-hand supply lines
2шт.
12
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, left-hand supply lines
4шт.
13
150336A1
SPRING WASHER
lock, 14 mm, left-hand supply lines
4шт.
14
173023A1
HOSE
1510 mm (59-7/16 inch) long, left-hand supply line (left-hand cylinder supply line to left-hand supply line)
1шт.
15
153626A1
O-RING
hose, left-hand supply lines
1шт.
16
150124A1
FLANGE
split, left-hand supply lines
2шт.
17
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, left-hand supply lines
4шт.
18
150336A1
SPRING WASHER
lock, 14 mm, left-hand supply lines
4шт.
19
154548A1
O-RING
tube, left-hand supply lines
1шт.
20
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Left-hand supply lines
4шт.
21
112309A1
LOCK WASHER
lock, special, left-hand supply lines
4шт.
22
173080A1
TUBE
right-hand supply line (control valve port "AR2" to check valve)
1шт.
23
150124A1
FLANGE
split, left-hand supply lines
2шт.
24
153626A1
O-RING
tube, left-hand supply lines
1шт.
25
862-14035
HEX SOC SCREW,M14 x 35mm, Cl 12.9
Left-hand supply lines
4шт.
26
150336A1
SPRING WASHER
lock, 14 mm, left-hand supply lines
4шт.
27
159498A1
GUARD
hose, left-hand supply lines
1шт.
28
153626A1
O-RING
hose, left-hand supply lines
1шт.
29
150124A1
FLANGE
split, left-hand supply lines
2шт.
30
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, left-hand supply lines
4шт.
31
150336A1
SPRING WASHER
lock, 14 mm, left-hand supply lines
4шт.
32
173023A1
HOSE
1510 mm (59-7/16 inch) long, right-hand supply line (check valve to right-hand cylinder supple line)
1шт.
33
153626A1
O-RING
hose, left-hand supply lines
1шт.
34
150124A1
FLANGE
split, left-hand supply lines
2шт.
35
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, left-hand supply lines
4шт.
36
150336A1
SPRING WASHER
lock, 14 mm, left-hand supply lines
4шт.
37
150124A1
FLANGE
split, relief lines
2шт.
38
153626A1
O-RING
hose, relief lines
1шт.
39
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, relief lines
4шт.
40
150336A1
SPRING WASHER
lock, 14 mm, elbow, relief lines
4шт.
41
173083A1
HOSE
600 mm (23-5/8 inch) long, filter inlet relief line (from check valve to inlet port of filter)
1шт.
42
162669A1
ELBOW
ELBOW - 90 degree, relief lines
1шт.
43
162669A1
ELBOW
ELBOW - 90 degree, relief lines
1шт.
44
173790A1
HOSE ASSY.
hydraulic, filter to oil cooler supply tube, replaces 162673A1, relief lines
1шт.
45
157588A1
ELBOW
45 degree, relief lines
1шт.
Выбрано товаров: 45
