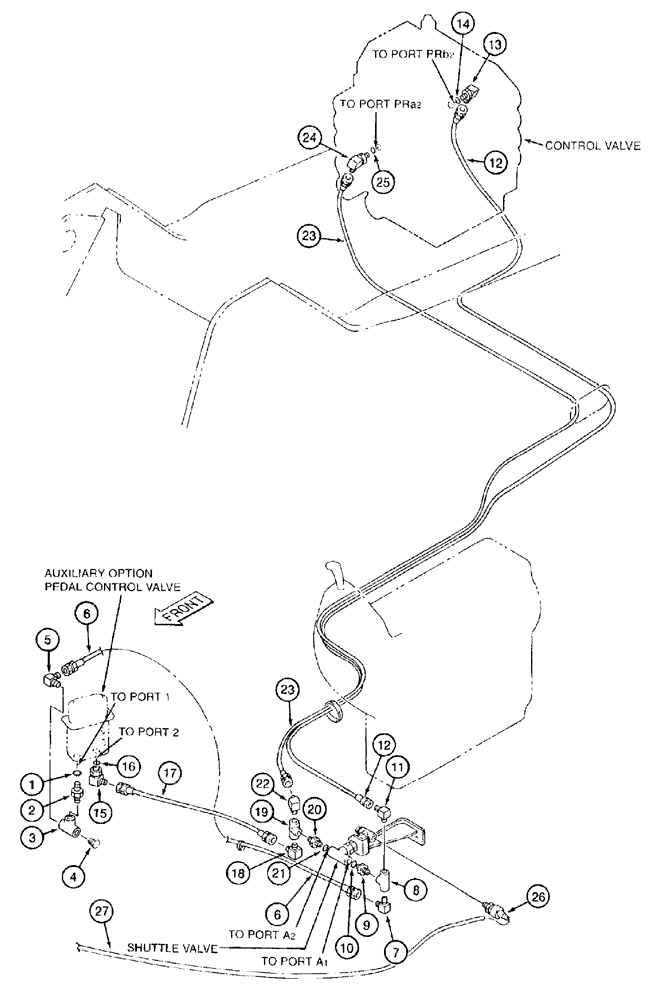

Запчасти Case 9050B (8-122) - DBL ACTN AUXLRY EQUIP OPTN,PILOT CONTRL LINE,PEDAL-FWD SIGNAL LINE,PEDAL-BWD SIGNAL LINE,ELEC COMPNT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
154467A1
O-RING,10.8mm ID x 2.4mm Width
connector, pedal-forward signal lines
1шт.
2
152899A1
HYD CONNECTOR
CONNECTOR - straight, pedal-forward signal lines
1шт.
3
152135A1
TEE
special, pedal-forward signal lines
1шт.
4
150990A1
PLUG
port, pedal-forward signal lines
1шт.
5
153596A1
ADAPTER
ELBOW - 90 degree, pedal-forward signal lines
1шт.
6
157854A1
HOSE,4mm ID x 750mm L
750 mm (29-1/2 inch) long, pedal-forward signal line (pedal control valve port "1" to shut valve port "A1")
1шт.
7
153596A1
ADAPTER
ELBOW - 90 degree, pedal-forward signal lines
1шт.
8
152135A1
TEE
special, pedal-forward signal lines
1шт.
9
152899A1
HYD CONNECTOR
CONNECTOR - straight, pedal-forward signal lines
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
connector, pedal-forward signal lines
1шт.
11
153596A1
ADAPTER
ELBOW - 90 degree, pedal-forward signal lines
1шт.
12
163438A1
HYDRAULIC HOSE,3800.00 mm
Pedal-forward signal line (From tee at shuttle valve port "A1" to control valve port "PRb2")
1шт.
13
156554A1
ELBOW
90 degree, special, pedal-forward signal lines, Includes: Ref. 14
1шт.
14
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, pedal-forward signal lines
1шт.
15
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, pedal-backward signal lines, Includes: Ref. 16
1шт.
16
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, pedal-backward signal lines
1шт.
17
152775A1
HOSE ASSY.
500 mm (19-3/4 inch) long, pedal-backward signal line (pedal control valve port "2" to shuttle valve port "A2")
1шт.
18
153596A1
ADAPTER
ELBOW - 90 degree, pedal-backward signal lines
1шт.
19
152135A1
TEE
special, pedal-backward signal lines
1шт.
20
152899A1
HYD CONNECTOR
CONNECTOR - straight, pedal-backward signal lines
1шт.
21
154467A1
O-RING,10.8mm ID x 2.4mm Width
connector, pedal-backward signal lines
1шт.
22
153596A1
ADAPTER
ELBOW - 90 degree, pedal-backward signal lines
1шт.
23
161292A1
HOSE,3550.00 mm
Pedal-backward signal line (From tee at shuttle valve port "A2" to control valve port "PRa2")
1шт.
24
156554A1
ELBOW
90 degree, special, pedal-backward signal lines, Includes: Ref. 25
1шт.
25
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, pedal-backward signal lines
1шт.
26
159599A1
PRESSURE SWITCH
electrical components
1шт.
27
162662A1
HARNESS
wiring, electrical components
1шт.
Выбрано товаров: 27
