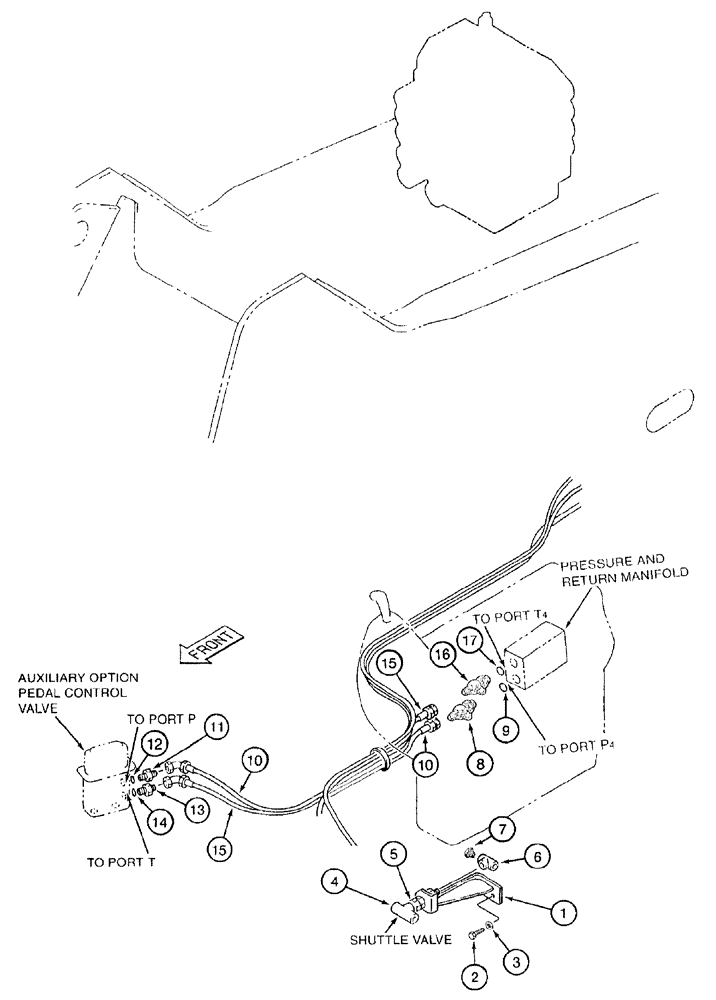

Запчасти Case 9050B (8-120) - DBL ACTION AUXLRY EQUIP OPTION,PILOT LINES,OPERATORS CAB,PILOT SUPPLY LINES,PILOT RELIEF LINES (08) - HYDRAULICS

1

162638A1

BRACKET

mounting, pilot lines operator's cab

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Pilot lines operator's cab

2шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm, pilot lines operator's cab

2шт.

4

KHJ17090

VALVE PRESSURE RELIE

shuttle, pilot lines operator's cab; Replaces 158186A1

1шт.

5

162654A1

HYD CONNECTOR

straight, pilot lines operator's cab

1шт.

6

152135A1

TEE

special, pilot supply lines

1шт.

7

150990A1

PLUG

port, pilot supply lines

1шт.

8

159497A1

TEE

special, pilot supply lines, Includes: Ref. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee, pilot supply lines

1шт.

10

159045A1

HOSE ASSY.

1150 mm (45-1/4 inch) long, pedal control valve pilot supply line (pressure and return manifold port "P4" to pedal control valve port "P")

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, pilot supply lines, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, pilot supply lines

1шт.

13

161841A1

HYD CONNECTOR

ADAPTER - straight, special, pilot relief lines, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, pilot relief lines

1шт.

15

159045A1

HOSE ASSY.

1150 mm (45-1/4 inch) long, pedal control valve pilot return line (pedal control valve port "T" to pressure and return manifold port "T4")

1шт.

16

159497A1

TEE

special, pilot relief lines, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee, pilot relief lines

1шт.
