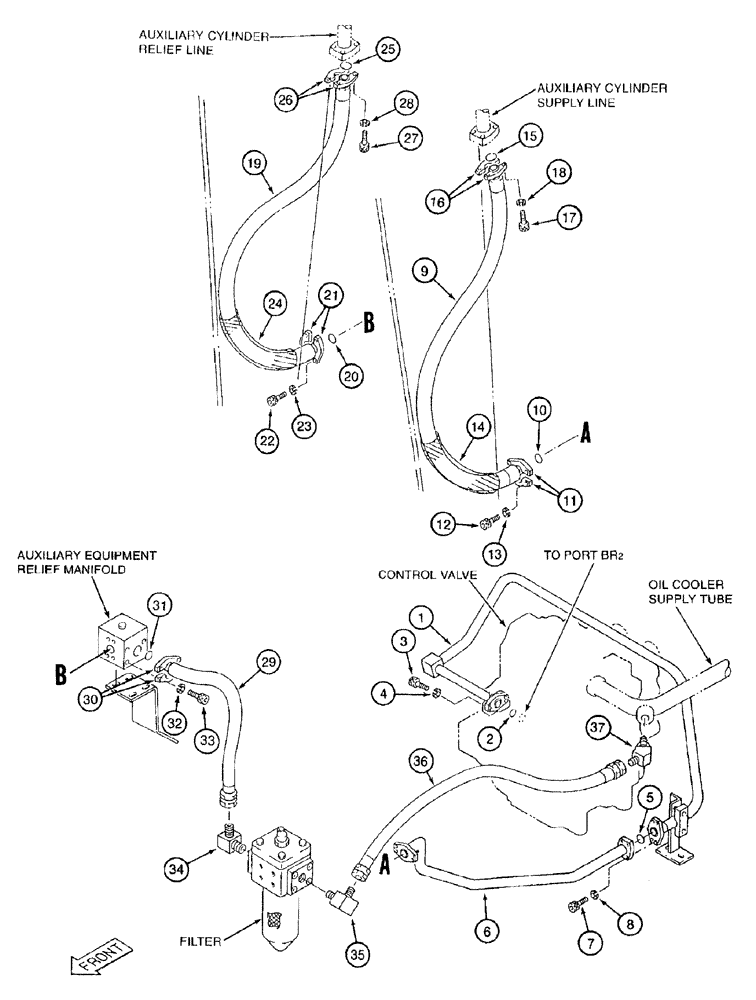

Запчасти Case 9050B (8-114) - SINGL ACTION AXLRY EQUIP OPTION,CYLNDR SUPPLY & RELIEF LINES,CYLNDR SUPPLY LINES,CYLNDR RELIEF LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
173079A1
TUBE
cylinder supply tube (control valve port "BR2" to cylinder supply tube)
1шт.
3
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
4шт.
4
112309A1
LOCK WASHER
lock, special
4шт.
6
173082A1
TUBE,34 mm OD
manifold supply (cylinder supply tube to auxiliary cylinder supply line)
1шт.
7
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
4шт.
8
112309A1
LOCK WASHER
lock, special
4шт.
9
173023A1
HOSE
1510 mm (59-7/16 inch) long, cylinder supply line (cylinder supply tube to auxiliary cylinder supply line)
1шт.
10
153626A1
O-RING
hose
1шт.
11
150124A1
FLANGE
split
2шт.
12
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9
4шт.
13
150336A1
SPRING WASHER
lock, 14 mm
4шт.
14
159498A1
GUARD
hose
1шт.
15
153626A1
O-RING
hose
1шт.
16
150124A1
FLANGE
split
2шт.
17
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9
4шт.
18
150336A1
SPRING WASHER
lock, 14 mm
4шт.
19
173023A1
HOSE
1510 mm (59-7/16 inch) long, cylinder relief line (auxiliary equipment relief manifold to auxiliary equipment relief manifold to auxiliary cylinder relief line)
1шт.
20
153626A1
O-RING
hose, cylinder relief lines
1шт.
21
150124A1
FLANGE
split, cylinder relief lines
2шт.
22
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, cylinder relief lines
4шт.
23
150336A1
SPRING WASHER
lock, 14 mm, cylinder relief lines
4шт.
24
159498A1
GUARD
hose, cylinder relief lines
1шт.
25
153626A1
O-RING
hose, cylinder relief lines
1шт.
26
150124A1
FLANGE
split, cylinder relief lines
2шт.
27
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, cylinder relief lines
4шт.
28
150336A1
SPRING WASHER
lock, 14 mm, cylinder relief lines
4шт.
29
173083A1
HOSE
600 mm (23-5/8 inch) long, filter inlet (auxiliary equipment relief manifold to filter inlet port), cylinder relief lines
1шт.
30
150124A1
FLANGE
split, cylinder relief lines
2шт.
31
153626A1
O-RING
hose, cylinder relief lines
1шт.
32
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
hex socket, 14 - 2.0 x 50 mm, class 12.9, cylinder relief lines
4шт.
33
150336A1
SPRING WASHER
lock, 14 mm, cylinder relief lines
4шт.
34
162669A1
ELBOW
ELBOW - 90 degree, cylinder relief lines
1шт.
35
162669A1
ELBOW
ELBOW - 90 degree, cylinder relief lines
1шт.
36
173790A1
HOSE ASSY.
hydraulic, filter to oil cooler supply tube, replaces 162673A1, cylinder relief lines
1шт.
37
157588A1
ELBOW
45 degree, cylinder relief lines
1шт.
Выбрано товаров: 37
