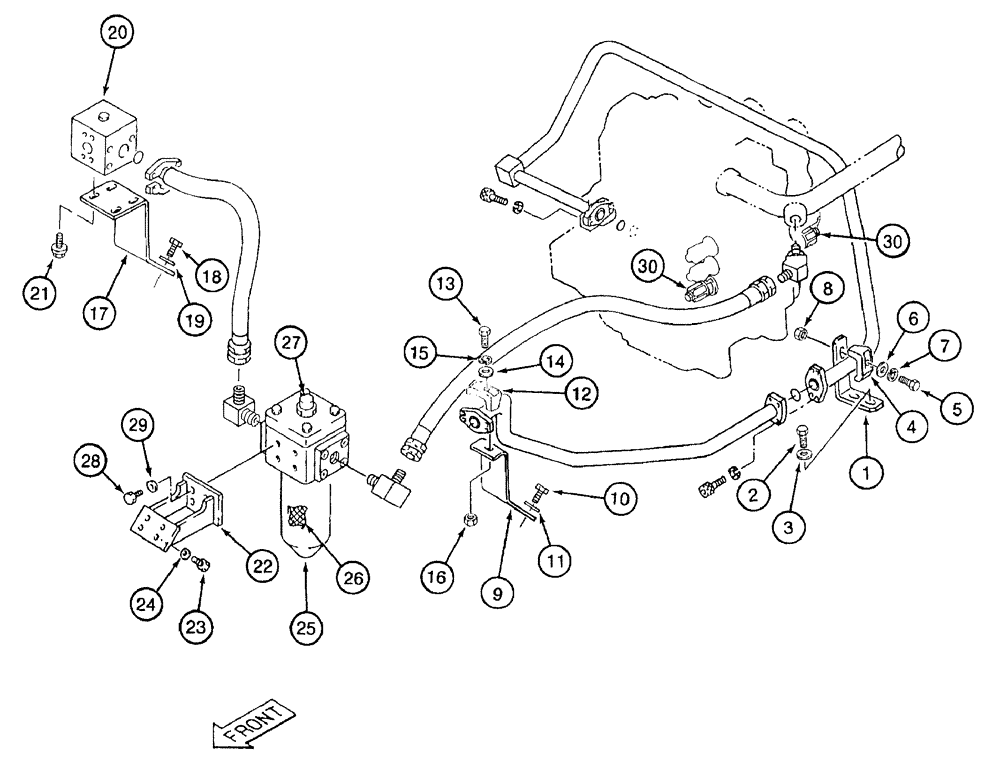

Запчасти Case 9050B (8-110) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, COMPONENT MOUNTING AND TUBING SUPPORT (08) - HYDRAULICS

1

173086A1

BRACKET

mounting

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

3

892-11012

LOCK WASHER,M12

2шт.

4

152974A1

COLLAR

tubing

1шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

7

892-11012

LOCK WASHER,M12

1шт.

8

829-1412

NUT,M12, Cl 10.9

1шт.

9

173081A1

BRACKET

mounting

1шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

3шт.

11

892-11012

LOCK WASHER,M12

3шт.

12

152974A1

COLLAR

tubing

1шт.

13

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

14

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

15

892-11012

LOCK WASHER,M12

1шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

173084A1

BRACKET

mounting, manifold

1шт.

18

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

3шт.

19

892-11012

LOCK WASHER,M12

3шт.

20

163436A1

MANIFOLD

auxiliary equipment relief

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

4шт.

22

162670A1

BRACKET

mounting, filter

1шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

24

892-11012

LOCK WASHER,M12

4шт.

25

159704A1

FILTER ASSY

ASSEMBLY - line, Includes: Ref. 26 - 27

1шт.

26

159705A1

HYDRAULIC OIL FILTER

filter

1шт.

27

159706A1

INDICATOR

GAUGE - special indicator

1шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

29

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

30

157249A1

VALVE PRESSURE RELIE

port relief

2шт.
