Запчасти Case 9050B (8-104) - CONTROL VALVE DRAIN LINES (08) - HYDRAULICS

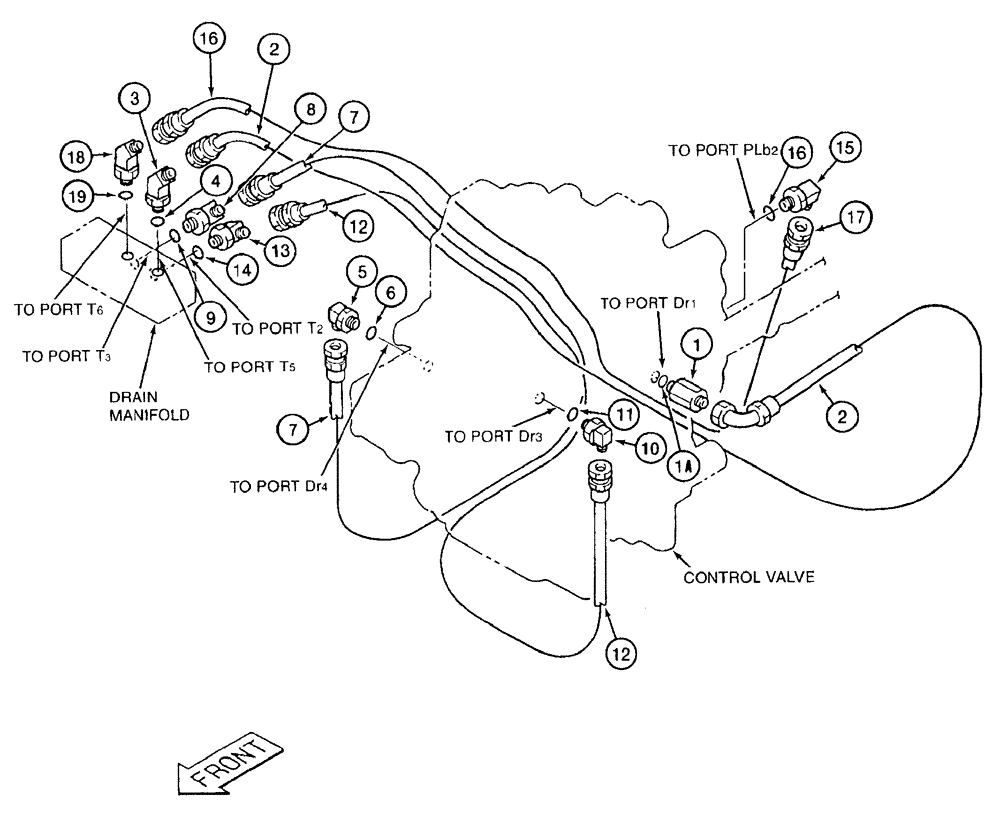

Схема запчастей Case 9050B - (8-104) - CONTROL VALVE DRAIN LINES (08) - HYDRAULICS
6
5
14
4
13
16
1a
11
10
7
16
18
17
7
19
12
9
2
2
1
12
15
8
3

Артикул

Название

Примечание

Количество

1

162554A1

FITTING

special, Includes: Ref. 1A

1шт.

1a

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

2

162555A1

HOSE

1800 mm (70-7/8 inch) long, main control valve drain line (control valve port "Dr1" to drain manifold port "T5")

1шт.

3

150933A1

ELBOW

45 degree, Includes: Ref. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

7

152704A1

HOSE

1800 mm (71 inch) long, Boom signal drain line (Control valve port "Dr4" to drain manifold port "T3")

1шт.

8

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

12

152581A1

HOSE,6.3mm ID x 1900mm L

Bucket signal drain line (Control valve port "Dr3" to drain manifold port "T2")

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

15

156554A1

ELBOW

90 degree, special, Includes: Ref. 16

1шт.

16

154475A1

O-RING

elbow

1шт.

17

152807A1

HOSE ASSY.

1250 mm (49-1/4 inch) long, dual flow signal line (control valve port "PLb2" to drain manifold port "T6")

1шт.

18

150933A1

ELBOW

45 degree, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

Выбрано товаров: 20
