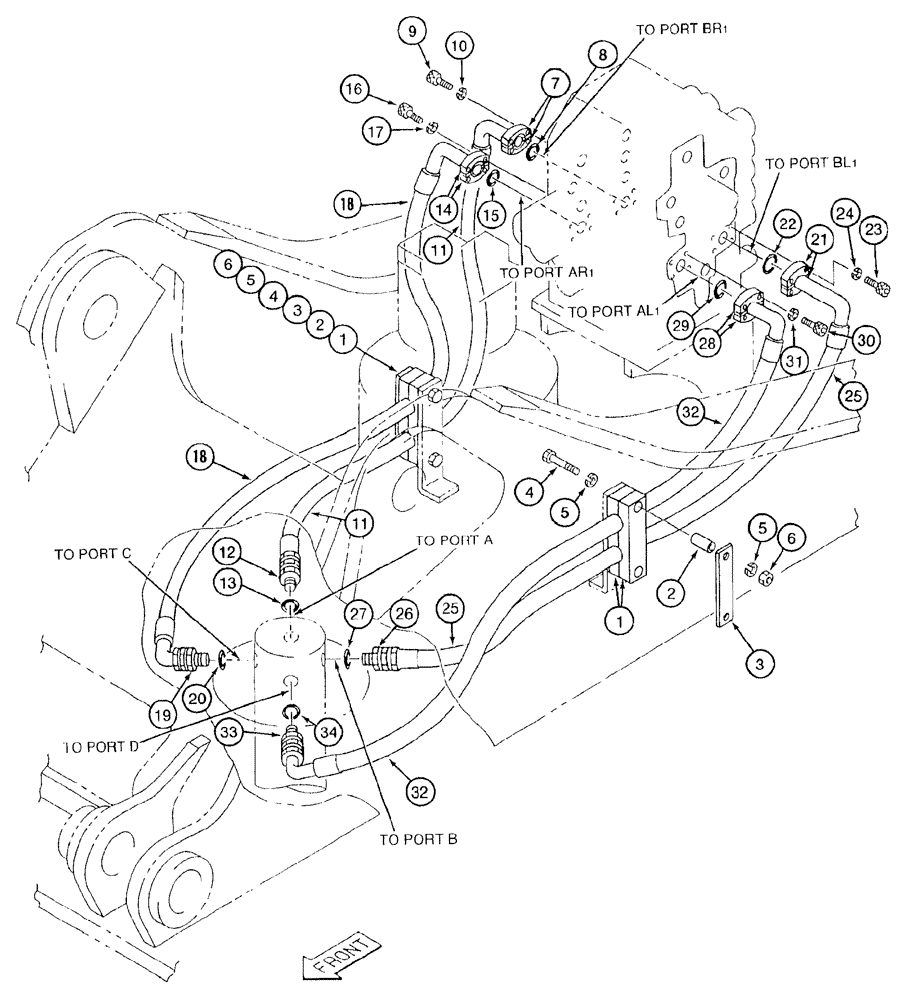

Запчасти Case 9050B (8-102) - TRACK DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

152987A1

COLLAR

hose mounting

4шт.

2

152895A1

SPACER

clamp

4шт.

3

152888A1

PLATE, SPACER

PLATE,SPACER clamp

2шт.

4

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

5

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

8шт.

7

A12306

FLANGE

CLAMP - split flange

2шт.

8

162246A1

O-RING

hose

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

173263A1

HOSE ASSY.

1410 mm (55-1/2 inch) long, forward-travel line (control valve port "BR1" to swivel port "A")

1шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, Includes: Ref. 13

1шт.

13

154523A1

O-RING

adapter

1шт.

14

A12306

FLANGE

CLAMP - split flange

2шт.

15

162246A1

O-RING

hose

1шт.

17

892-11010

LOCK WASHER,M10

4шт.

18

162319A1

HYDRAULIC HOSE,25.40 mm ID x 1420.00 mm

Backward-travel line (Control valve port "AR1" to swivel port "C")

1шт.

19

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, Includes: Ref. 20

1шт.

20

154523A1

O-RING

adapter

1шт.

21

A12306

FLANGE

CLAMP - split flange, left-hand travel lines

2шт.

22

162246A1

O-RING

hose, left-hand travel lines

1шт.

24

892-11010

LOCK WASHER,M10

LH travel lines

4шт.

25

173263A1

HOSE ASSY.

1410 mm (55-1/2 inch) long, forward-travel line (control valve port "BL1" to swivel port "B"), left-hand

1шт.

26

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, left-hand travel lines, Includes: Ref. 27

1шт.

27

154523A1

O-RING

adapter, left-hand travel lines

1шт.

28

A12306

FLANGE

CLAMP - split flange, left-hand travel lines

2шт.

29

162246A1

O-RING

hose, left-hand travel lines

1шт.

31

892-11010

LOCK WASHER,M10

LH travel lines

4шт.

32

162319A1

HYDRAULIC HOSE,25.40 mm ID x 1420.00 mm

Backward-travel line (Control valve port "AL1" to swivel port "D"), LH

1шт.

33

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, left-hand travel lines, Includes: Ref. 34

1шт.

34

154523A1

O-RING

adapter, left-hand travel lines

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

LH travel lines

4шт.

30

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

LH travel lines

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
