(8-082) - TRACK DRIVE HYDRAULIC CIRCUIT

Запчасти Case 9050B (8-082) - TRACK DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

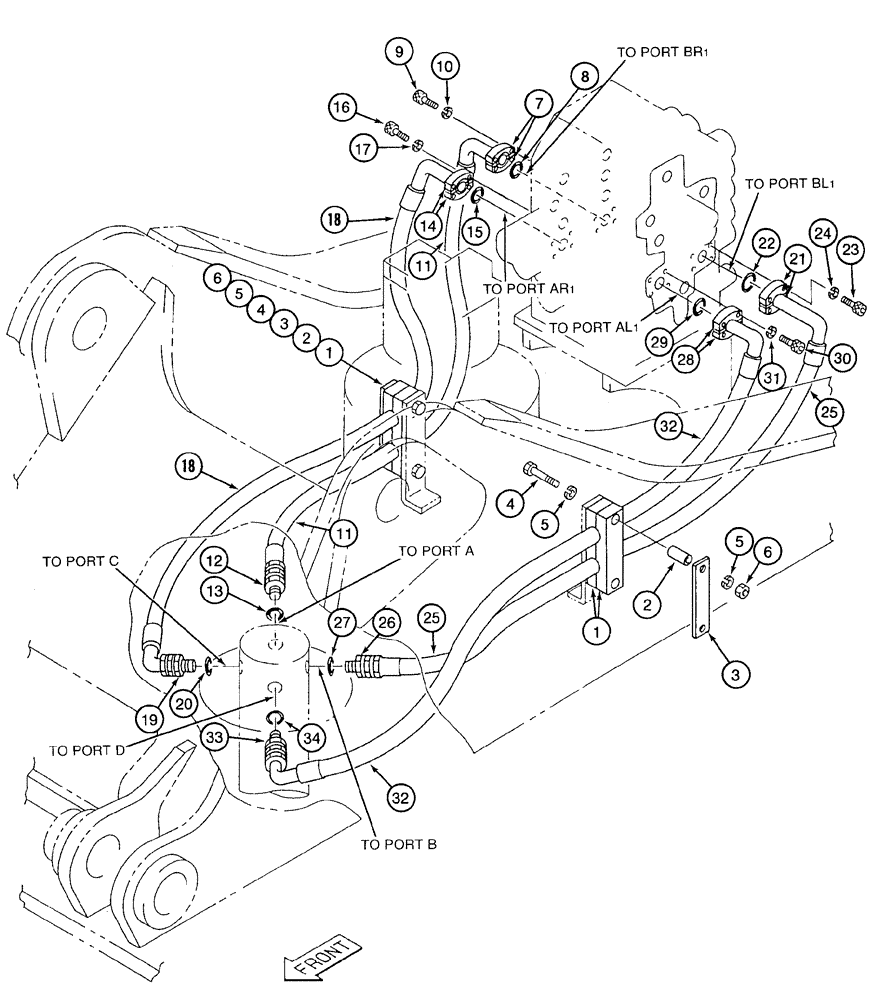

Схема запчастей Case 9050B - (8-082) - TRACK DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS
34
11
25
5
4
3
4
27
5
22
10
15
19
24
2
3
32
29
25
5
32
13
6
26
7
33
31
18
6
20
2
28
23
1
8
18
17
1
16
11
30
9
14
21
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152987A1

COLLAR

hose mounting

4шт.

2

152895A1

SPACER

clamp

4шт.

3

152888A1

PLATE, SPACER

clamp

2шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

4шт.

5

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

8шт.

7

153459A1

FLANGE

split, right hand travel lines

2шт.

8

162246A1

O-RING

hose, right hand travel lines

1шт.

10

892-11010

LOCK WASHER,M10

RH travel lines M10

4шт.

11

162321A1

HYDRAULIC HOSE,25.40 mm ID x 1450.00 mm

- Forward-travel line (Control valve port "BR1" to swivel port "A"), RH 25.40 mm ID x 1450.00 mm

1шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, right hand travel lines, Includes: Ref. 13

1шт.

13

154523A1

O-RING

adapter, right hand travel lines

1шт.

14

153459A1

FLANGE

split, right hand travel lines

2шт.

15

162246A1

O-RING

hose, right hand travel lines

1шт.

17

892-11010

LOCK WASHER,M10

RH travel lines M10

4шт.

18

162320A1

HYDRAULIC HOSE,25.40 mm ID x 1370.00 mm

- Backward-travel line (Control valve port "AR1" to swivel port "C"), RH 25.40 mm ID x 1370.00 mm

1шт.

19

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, right hand travel lines, Includes: Ref. 20

1шт.

20

154523A1

O-RING

adapter, right hand travel lines

1шт.

21

153459A1

FLANGE

split, left hand travel lines

2шт.

22

162246A1

O-RING

hose, left hand travel lines

1шт.

24

892-11010

LOCK WASHER,M10

LH travel lines M10

4шт.

25

162318A1

HYDRAULIC HOSE,25.40 mm ID x 1410.00 mm

- Forward-travel line (Control valve port "BL1" to swivel port "B"), LH 25.40 mm ID x 1410.00 mm

1шт.

26

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, left hand travel lines, Includes: Ref. 27

1шт.

27

154523A1

O-RING

adapter, left hand travel lines

1шт.

28

153459A1

FLANGE

split, left hand travel lines

2шт.

29

162246A1

O-RING

hose, left hand travel lines

1шт.

31

892-11010

LOCK WASHER,M10

LH travel lines M10

4шт.

32

162319A1

HYDRAULIC HOSE,25.40 mm ID x 1420.00 mm

- Backward-travel line (Control valve port "AL1" to swivel port "D"), LH 25.40 mm ID x 1420.00 mm

1шт.

33

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, left hand travel lines, Includes: Ref. 34

1шт.

34

154523A1

O-RING

adapter, left hand travel lines

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

RH travel lines Hex, M10 x 30, 10.9, Full Thd

4шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

RH travel lines Hex, M10 x 30, 10.9, Full Thd

4шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

LH travel lines Hex, M10 x 30, 10.9, Full Thd

4шт.

30

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

LH travel lines Hex, M10 x 30, 10.9, Full Thd

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
