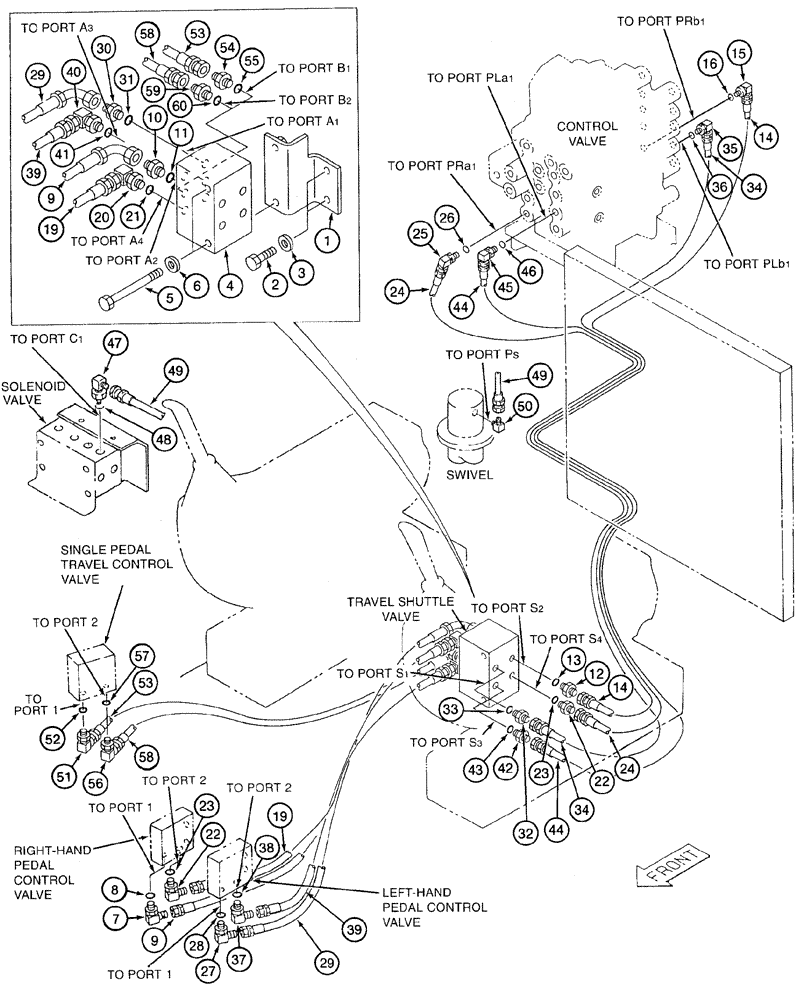

Запчасти Case 9050B (8-076) - TRAVEL CONTROL LINES (08) - HYDRAULICS

1

159042A1

BRACKET

valve mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

4

KHJ17130

VALVE SECTION

shuttle travel; Replaces 160355A1

1шт.

5

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, full threads 10 - 1.5 x 90 mm, class 10.9

2шт.

6

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, right hand travel lines, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, right hand travel lines

1шт.

9

159043A1

HOSE ASSY.

18-1/2 inch (470 mm) long right-hand forward travel line (right-hand pedal control valve port "1" to travel shuttle valve port "A2")

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, right hand travel lines, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, right hand travel lines, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

14

157839A1

HOSE,6.3 mm ID x 3900.00 mm

153-1/2 inch (3900 mm) long right-hand forward travel line (travel shuttle valve port "S2" to control valve port "PRb1") (also activated with single-pedal travel)

1шт.

15

156554A1

ELBOW

90 degree, special, right hand travel lines, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, right hand travel lines, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, right hand travel lines

1шт.

19

156735A1

HOSE,6.3 mm ID x 350.00 mm

13-3/4 inch (350 mm) long right-hand backward travel line (right-hand pedal control valve port "2" to travel shuttle valve port "A4")

1шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, right hand travel lines, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, right hand travel lines, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

24

161293A1

HOSE

- 3600 mm (141-3/4 inch) long, RH backward travel line (Single-pedal shuttle valve port "S4" to control valve port "PRa1") (Also activated with single-pedal travel)

1шт.

25

156554A1

ELBOW

90 degree, special, right hand travel lines, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, right hand travel lines

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, left hand travel lines, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, left hand travel lines

1шт.

29

159044A1

HOSE ASSY.

21-5/8 inch (550 mm) long left-hand forward travel line (left-hand pedal control valve port "1" to travel shuttle valve port "A1")

1шт.

30

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, left hand travel lines, Includes: Ref. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, left hand travel lines

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, left hand travel lines, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, left hand travel lines

1шт.

34

157839A1

HOSE,6.3 mm ID x 3900.00 mm

153-1/2 inch (3900 mm) long left-hand forward travel line (travel shuttle valve port "S1" to control valve port "PLb1") (also activated with single-pedal travel)

1шт.

35

156554A1

ELBOW

90 degree, special, left hand travel lines, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, left hand travel lines

1шт.

37

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, left hand travel lines, Includes: Ref. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, left hand travel lines

1шт.

39

152793A1

HOSE ASSY.

17-3/4 inch (450 mm) long left-hand backward travel line (left-hand pedal control valve port "2" to travel shuttle valve port "A3")

1шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, left hand travel lines, Includes: Ref. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, left hand travel lines

1шт.

42

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, left hand travel lines, Includes: Ref. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, left hand travel lines

1шт.

44

158130A1

HOSE,6.3mm ID x 1350mm L

131-7/8 inch (3350 mm) long left-hand backward travel line (single-pedal shuttle valve port "S3" to control valve port "PLa1") (also activated with single-pedal travel)

1шт.

45

156554A1

ELBOW

90 degree, special, left hand travel lines, Includes: Ref. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, left hand travel lines

1шт.

47

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, high speed signal line, Includes: Ref. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, high speed signal line

1шт.

49

157790A1

HOSE,6.3mm ID x 3000mm L

118-1/8 inch (3000 mm) long high speed travel signal line (solenoid valve port "C1" to swivel port "Ps")

1шт.

50

153596A1

ADAPTER

ELBOW - 90 degree, special, high speed signal line

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, single pedal travel lines, Includes: Ref. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, single pedal travel lines

1шт.

53

152775A1

HOSE ASSY.

19-3/4 inch (500 mm) long single-pedal forward travel line (single-pedal control valve port "1" to travel shuttle valve port "B1")

1шт.

54

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight , single pedal travel lines, Includes: Ref. 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, single pedal travel lines

1шт.

56

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, single pedal travel lines, Includes: Ref. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow,, single pedal travel lines

1шт.

58

151862A1

HOSE,63.00 mm ID x 400.00 mm

- Single-pedal backward travel line (Single-pedal control valve port "2" to travel shuttle valve port "B2") 63.00 mm ID x 400.00 mm

1шт.

59

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, single pedal travel lines, Includes: Ref. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, single pedal travel lines

1шт.
