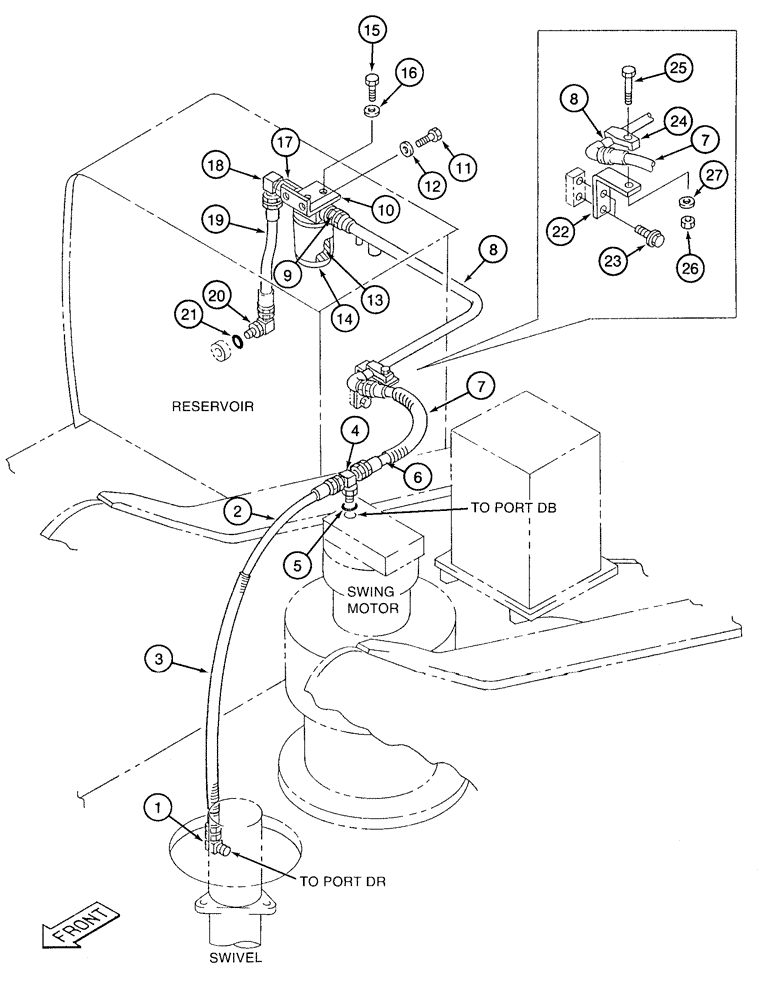

Запчасти Case 9050B (8-074) - SWIVEL AND SWING MOTOR DRAIN LINES (08) - HYDRAULICS

1

153438A1

ELBOW

special 90 degree

1шт.

2

163115A1

HYDRAULIC HOSE,19.00 mm ID x 1100.00 mm

- Swivel port "DR" to tee in swing motor port "DB" 19.00 mm ID x 1100.00 mm

1шт.

3

157864A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 23-5/8 inch (600 mm) long

1шт.

4

163114A1

TEE

in swing motor port "DB", Includes: Ref. 5

1шт.

5

154487A1

O-RING

tee

1шт.

6

162356A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

- From tee in swing motor port "DB" to filter supply tube 19.00 mm ID x 800.00 mm

1шт.

7

157864A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 23-5/8 inch (600 mm) long

1шт.

8

162358A1

TUBE ASSY.,21.6 mm ID, 27.2 mm OD

filter supply

1шт.

9

159088A1

ADAPTER

straight

1шт.

10

153456A1

BRACKET

mounting

1шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

12

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

13

150792A1

FILTER ASSY

ASSEMBLY - hydraulic oil, Includes: Ref. 14

1шт.

14

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

16

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

17

162355A1

SOCKET

ADAPTER - special

1шт.

18

150724A1

ADAPTER

ELBOW - 90 degree 90 degree

1шт.

19

162359A1

HYDRAULIC HOSE,25.40 mm ID x 380.00 mm

- Filter to reservoir 25.40 mm ID x 380.00 mm

1шт.

20

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

90 degree, Includes: Ref. 21

1шт.

21

154523A1

O-RING

elbow

1шт.

22

162357A1

BRACKET

mounting

1шт.

23

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

24

151486A1

CLAMP BRACKET

tube

1шт.

25

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

26

829-1412

NUT,M12, Cl 10.9

1шт.

27

150811A1

WASHER

flat, special 12 mm

1шт.
