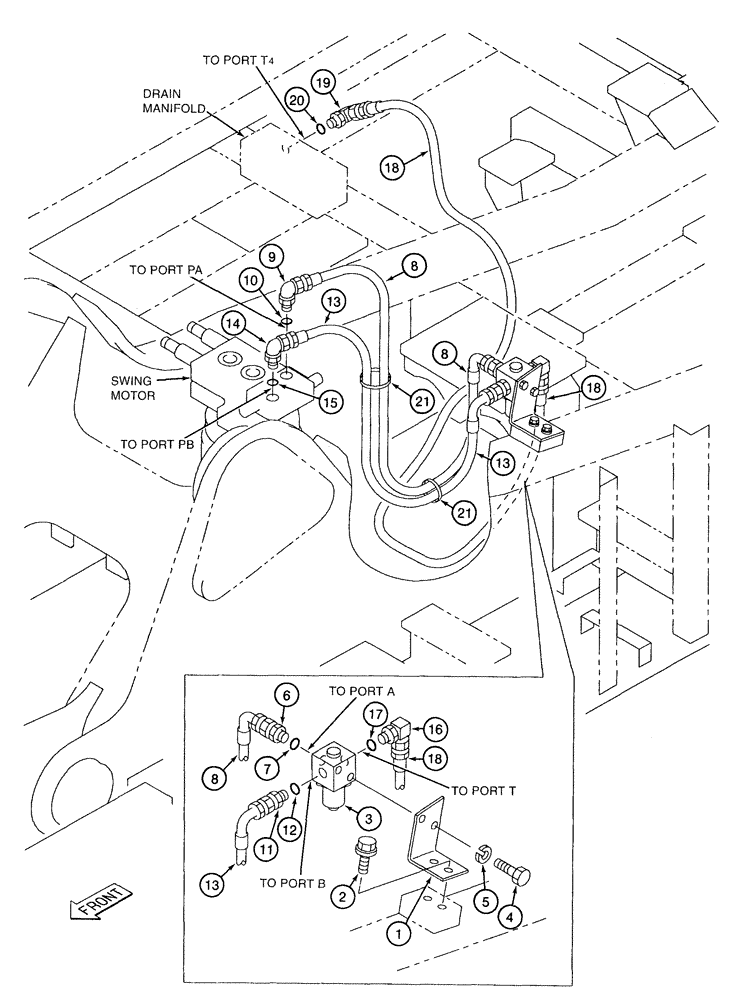

Запчасти Case 9050B (8-070) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

162367A1

BRACKET

mounting

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

3

159205A1

VALVE

ASSEMBLY - solenoid free swing, parts list on page 8-143

1шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

6

162366A1

ADAPTER

special with orifice, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

8

162365A1

HYDRAULIC HOSE,6.30 mm ID x 1200.00 mm

- Metering line (From solenoid valve port "A" to swing motor port "PA") 6.30 mm ID x 1200.00 mm

1шт.

9

163814A1

ELBOW

90 degree, special replaces 158784A1, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

13

162365A1

HYDRAULIC HOSE,6.30 mm ID x 1200.00 mm

(From solenoid valve port "B" to swing motor port "PB") 6.30 mm ID x 1200.00 mm

1шт.

14

158784A1

ELBOW

90 degree, special, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

18

157853A1

HOSE,6.3 mm ID x 2050.00 mm

80-11/16 inch (2050 mm) long (from solenoid valve port "T" to drain manifold port "T4")

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

21

150071A1

MOUNTING CLIP

STRAP - tie 365 mm long

2шт.
