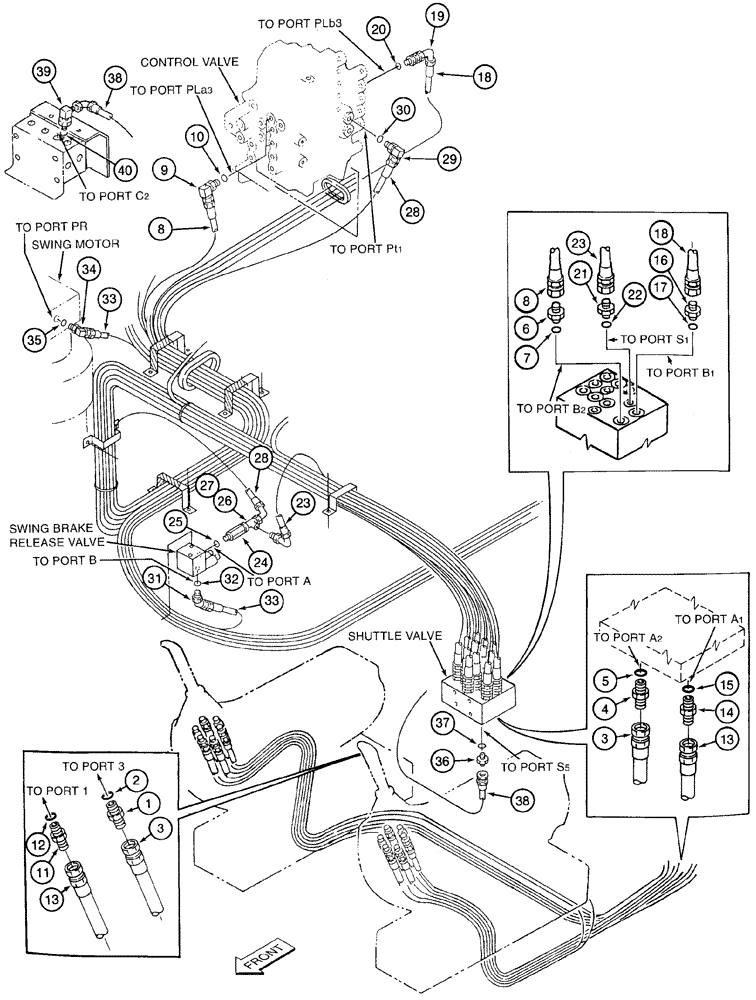

Запчасти Case 9050B (8-066) - SWING CONTROL LINES,SWING-LEFT LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing-left line (LH manual control valve port "3" to shuttle valve port "A2") 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

adapter

1шт.

8

157972A1

HOSE ASSY.

114-3/16 inch (2900 mm) long swing-left line (shuttel valve port "B2" to control valve port "PLa3")

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 10

1шт.

10

154475A1

O-RING

elbow

1шт.

11

152747A1

ADAPTER

straight, swing right lines, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, swing right lines

1шт.

13

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing-right line (LH controller port "1" to shuttle valve port "A1") 9.50 mm ID x 1750.00 mm

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, swing right lines, Includes: Ref. 15

1шт.

15

154475A1

O-RING

adapter, swing right lines

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, swing right lines, Includes: Ref. 17

1шт.

17

154475A1

O-RING

adapter, swing right lines

1шт.

18

159010A1

HYDRAULIC HOSE,9.50 mm ID x 3300.00 mm

- Swing-right line (Shuttle valve port "B1" to control valve port "PLb3") 9.50 mm ID x 3300.00 mm

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, swing right lines, Includes: Ref. 20

1шт.

20

154475A1

O-RING

adapter, swing right lines

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, swing brake release lines, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, swing brake release lines

1шт.

23

162527A1

HOSE ASSY.

27-9/16 inch (700 mm) long swing brake release signal line (shuttle valve port "S1" to tee at swing brake release valve port "A")

1шт.

24

162525A1

STUD

ADAPTER - straight, special, swing brake release lines, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, swing brake release lines

1шт.

26

159497A1

TEE

special, swing brake release lines, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee, swing brake release lines

1шт.

28

161166A1

HOSE ASSY.

84-5/8 inch (2150 mm) long swing brake release drain line (boom priority override) (tee at port "A" of swing brake release valve to control valve port "Pt1")

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, swing brake release lines, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, swing brake release lines

1шт.

31

150933A1

ELBOW

45 degree, swing brake release lines, Includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, swing brake release lines

1шт.

33

152773A1

HOSE ASSY.

72-13/16 inch (1850 mm) long swing brake release signal line(swing brake release valve port "B" to swing motor port "PR")

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, swing brake release lines, Includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, swing brake release lines

1шт.

36

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, swing shut off line, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, swing shut off line

1шт.

38

162650A1

HOSE,3500.00 mm

long swing shut-off signal line (from shuttle valve port "S5" to solenoid valve port "C2") 3500.00 mm

1шт.

39

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, swing shut off line, Includes: Ref. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, swing shut off line

1шт.
