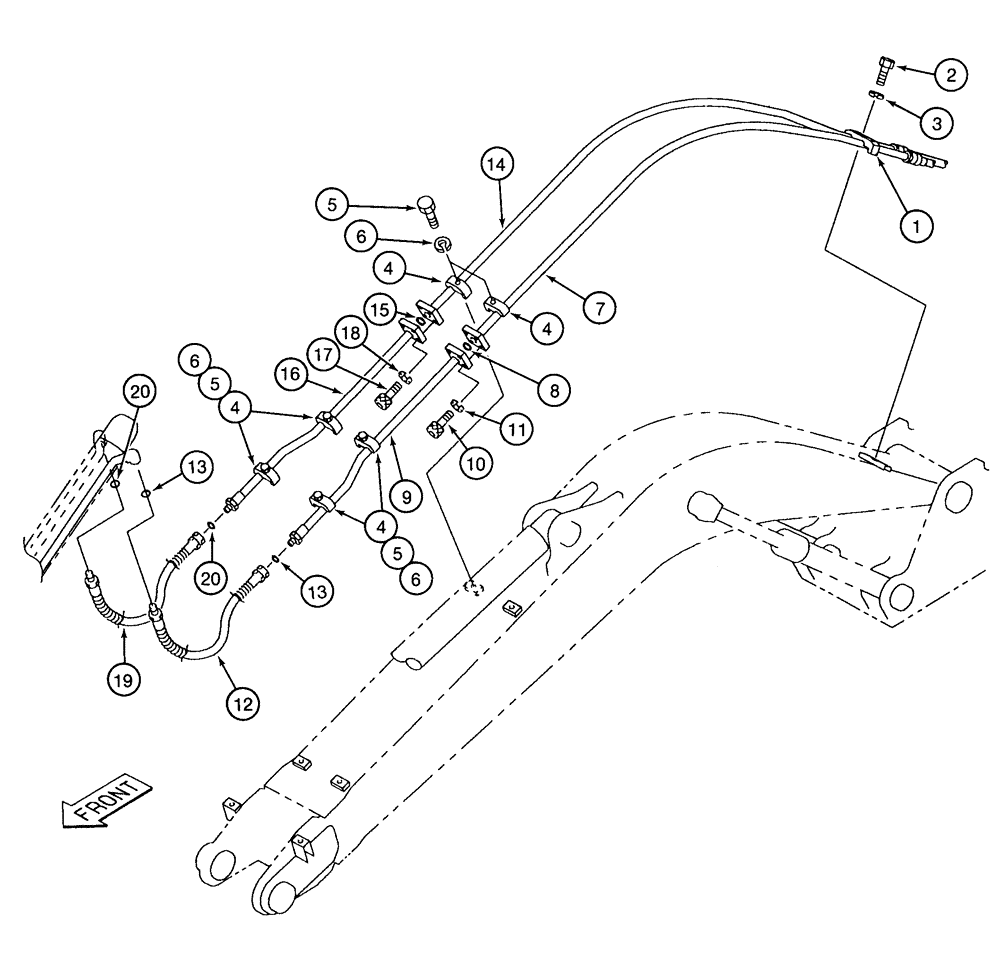

Запчасти Case 9050B (8-064) - BUCKET CYLINDER LINES - 3.23 METER ARM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162595A1
CLAMP
tube bucket cylinder lines
2шт.
2
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
2шт.
3
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER, LOCK, M16
1шт.
4
150777A1
COLLAR
tube bucket cylinder lines
6шт.
5
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
- hex 12 - 1.75 x 70 mm, class 10.9
6шт.
6
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER, LOCK, M16
6шт.
7
162599A1
TUBE,26 mm ID, 34 mm OD
bucket-open line
1шт.
8
154548A1
O-RING
tube, bucket open lines
1шт.
9
151256A1
HYD TUBE,26 mm ID, 34 mm OD
hydraulic bucket-open line
1шт.
10
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
SCREW - hex socket, 10-1.5 x 45 mm, class 12.9, Bucket open lines
4шт.
11
112309A1
LOCK WASHER
lock, special, bucket open lines
4шт.
12
151505A1
HOSE ASSY.,25.40 mm ID x 1850.00 mm
HYDRAULIC HOSE - Bucket-open line, Includes Ref. 13 25.40 mm ID x 1850.00 mm
1шт.
14
162598A1
TUBE,26 mm ID, 34 mm OD
bucket-close line
1шт.
15
154548A1
O-RING
tube, bucket close lines
1шт.
16
151256A1
HYD TUBE,26 mm ID, 34 mm OD
hydraulic bucket-close line
1шт.
17
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
SCREW - hex socket, 10-1.5 x 45 mm, class 12.9, Bucket close lines
4шт.
18
112309A1
LOCK WASHER
lock special, bucket close lines
4шт.
19
151505A1
HOSE ASSY.,25.40 mm ID x 1850.00 mm
HYDRAULIC HOSE - Bucket-close line, Includes Ref. 20 25.40 mm ID x 1850.00 mm
1шт.
Выбрано товаров: 20
