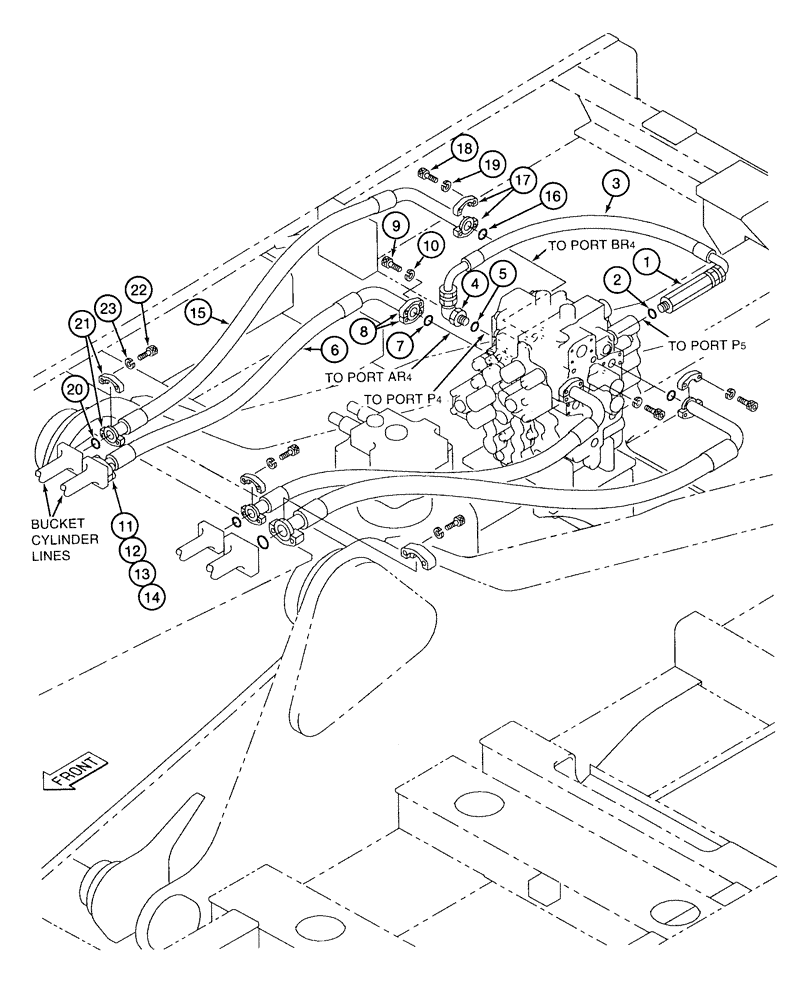

Запчасти Case 9050B (8-062) - BUCKET CYLINDER SUPPLY LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162330A1
STUD
ADAPTER - straight, special, Includes: Ref. 2
1шт.
3
162332A1
HYDRAULIC HOSE,19.00 mm ID x 580.00 mm
- Dual flow line (From control valve port "P5" to control valve port "P4") 19.00 mm ID x 580.00 mm
1шт.
4
159372A1
ELBOW
90 degree, special, Includes: Ref. 5
1шт.
6
162331A1
HYDRAULIC HOSE,25.40 mm ID x 1440.00 mm
- Bucket-open line (Control valve port "AR4" to bucket cylinder line) 25.40 mm ID x 1440.00 mm
1шт.
7
162246A1
O-RING
hose, bucket open lines
1шт.
8
153459A1
FLANGE
split, bucket open lines
2шт.
9
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9, Bucket open lines
4шт.
10
112309A1
LOCK WASHER
lock, special, bucket open lines
4шт.
11
162246A1
O-RING
hose, bucket open lines
1шт.
12
153459A1
FLANGE
split, bucket open lines
2шт.
13
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
SCREW - hex socket, 10-1.5 x 45 mm, class 12.9, Bucket open lines
4шт.
14
112309A1
LOCK WASHER
lock, special, bucket open lines
4шт.
15
162329A1
HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm
- Bucket-close line (Control valve port "BR4" to bucket cylinder line) 25.40 mm ID x 1550.00 mm
1шт.
16
162246A1
O-RING
hose, bucket close lines
1шт.
17
153459A1
FLANGE
split, bucket close lines
2шт.
18
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9, Bucket close lines
4шт.
19
112309A1
LOCK WASHER
lock, special, bucket close lines
4шт.
20
162246A1
O-RING
hose, bucket close lines
1шт.
21
153459A1
FLANGE
split, bucket close lines
2шт.
22
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
SCREW - hex socket, 10-1.5 x 45 mm, class 12.9, Bucket close lines
4шт.
23
112309A1
LOCK WASHER
lock, special, bucket close lines
4шт.
Выбрано товаров: 23
