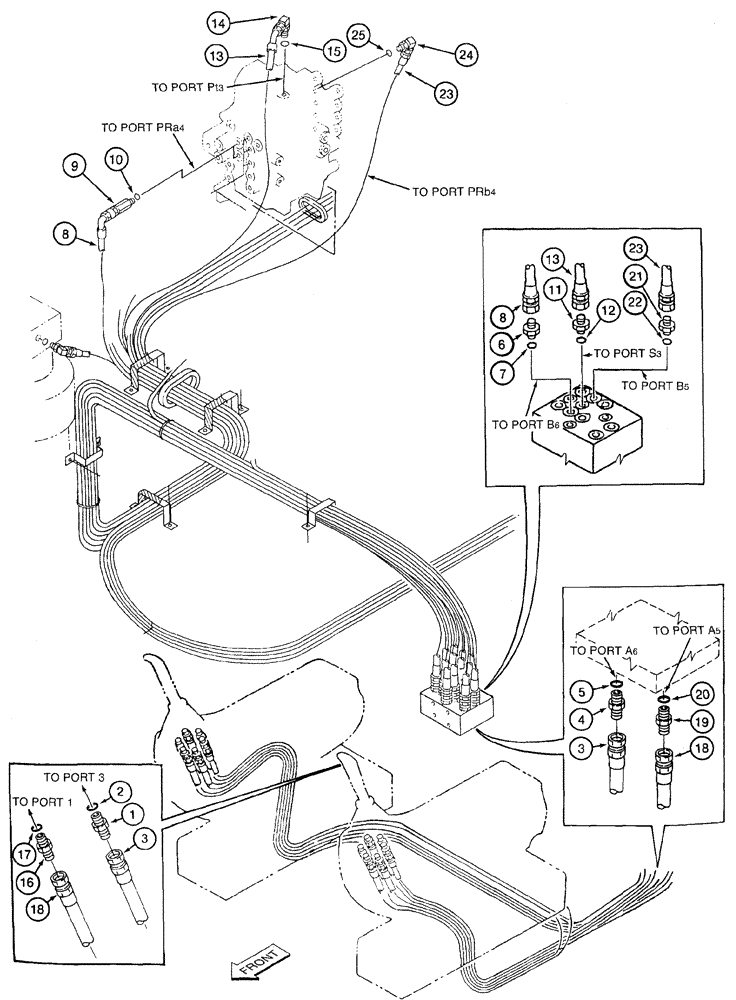

Запчасти Case 9050B (8-060) - BUCKET CONTROL LINES, BUCKET-OPEN LINES, BUCKET ACTIVITY SIGNAL LINE, BUCKET-CLOSE LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152474A1
ADAPTER - straight, bucket open lines, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, bucket open lines
1шт.
3
159211A1
HYDRAULIC HOSE
78-3/4 inch (2000 mm) long bucket-open line (right-hand manual control valve port "3" to shuttle valve port "A6"), bucket open linesES
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, bucket open lines, Includes: Ref. 5
1шт.
5
154475A1
O-RING
adapter, bucket open lines
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, bucket open lines, Includes: Ref. 7
1шт.
7
154475A1
O-RING
adapter, bucket open lines
1шт.
8
163423A1
HYDRAULIC HOSE
114-15/16 inch (2920 mm) long, Bucket -open line (Shuttle valve port "B6" to control valve port "PRa4"), bucket open lines
1шт.
9
159226A1
ADAPTER
straight, bucket open lines, Includes: Ref. 10
1шт.
10
154475A1
O-RING
adapter, bucket open lines
1шт.
11
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, bucket activity signal line, Includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, bucket activity signal line
1шт.
13
163420A1
HYDRAULIC HOSE
126 inch (3200 mm) long, Bucket-open/close signal line (Shuttle valve port "S3" to control valve port "Pt3"), bucket activity signal line
1шт.
14
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, bucket activity signal line, Includes: Ref. 15
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, bucket activity signal line
1шт.
16
152474A1
ADAPTER - straight, bucket close lines, Includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapterr, bucket close lines
1шт.
18
159212A1
HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm
- Bucket-close line (RH controller port "1" to shuttle valve port "A5"), Bucket close lines 9.50 mm ID x 2100.00 mm
1шт.
19
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, bucket close lines, Includes: Ref. 20
1шт.
20
154475A1
O-RING
adapterr, bucket close lines
1шт.
21
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straightr, bucket close lines, Includes: Ref. 22
1шт.
22
154475A1
O-RING
adapterr, bucket close lines
1шт.
23
157973A1
HOSE
137-3/4 inch (3500 mm) long bucket-close line (shuttle valve port "B5" to control valve port "PRb4")r, bucket close lines
1шт.
24
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
90 degreer, bucket close lines, Includes: Ref. 25
1шт.
25
154475A1
O-RING
adapter, bucket close lines
1шт.
Выбрано товаров: 25
