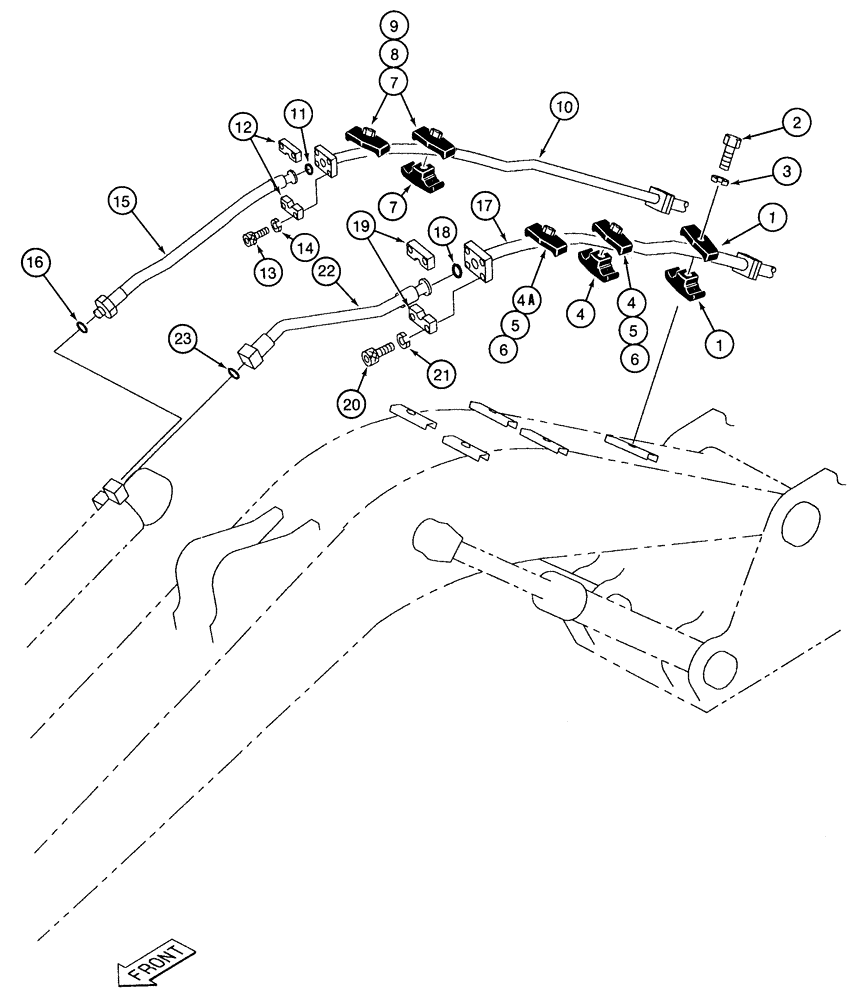

Запчасти Case 9050B (8-058) - ARM CYLINDER LINES (08) - HYDRAULICS

1

151695A1

CLAMP

tube

2шт.

2

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex 16 - 2.0 x 90 mm, class 10.9

1шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

1шт.

4

151695A1

CLAMP

tube

2шт.

4a

163845A1

CLAMP

tube

1шт.

5

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex 16 - 2.0 x 90 mm, class 10.9

2шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

2шт.

7

162595A1

CLAMP

tube

3шт.

8

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex 16 - 2.0 x 90 mm, class 10.9

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

2шт.

10

162597A1

TUBE,26 mm ID, 34 mm OD

arm-out line

1шт.

11

162246A1

O-RING

hose, arm out lines

1шт.

12

153459A1

FLANGE

split, arm out lines

2шт.

13

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9, arm-out lines

4шт.

14

112309A1

LOCK WASHER

lock, special, arm out lines

4шт.

15

162109A1

HYDRAULIC HOSE,25.40 mm ID x 1150.00 mm

- Arm-out line, arm out lines, Includes Ref. 16 25.40 mm ID x 1150.00 mm

1шт.

16

154559A1

O-RING

hose, arm out lines

1шт.

17

162600A1

TUBE,34.7 mm ID, 42.7 mm OD

arm-in line

1шт.

18

153626A1

O-RING

hose, arm in lines

1шт.

19

150124A1

FLANGE

split, arm in lines

2шт.

20

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex 14 - 2.0 x 50 mm, class 12.9, arm in lines

4шт.

21

150336A1

SPRING WASHER

lock 14 mm, arm in lines

4шт.

22

151433A1

HOSE ASSY.,31.8mm ID x 1150mm L

HYDRAULIC HOSE - Arm-in line, Arm in lines, Includes Ref. 23 31.80 mm ID x 1150.00 mm

1шт.

23

154559A1

O-RING

hose, arm in lines

1шт.
