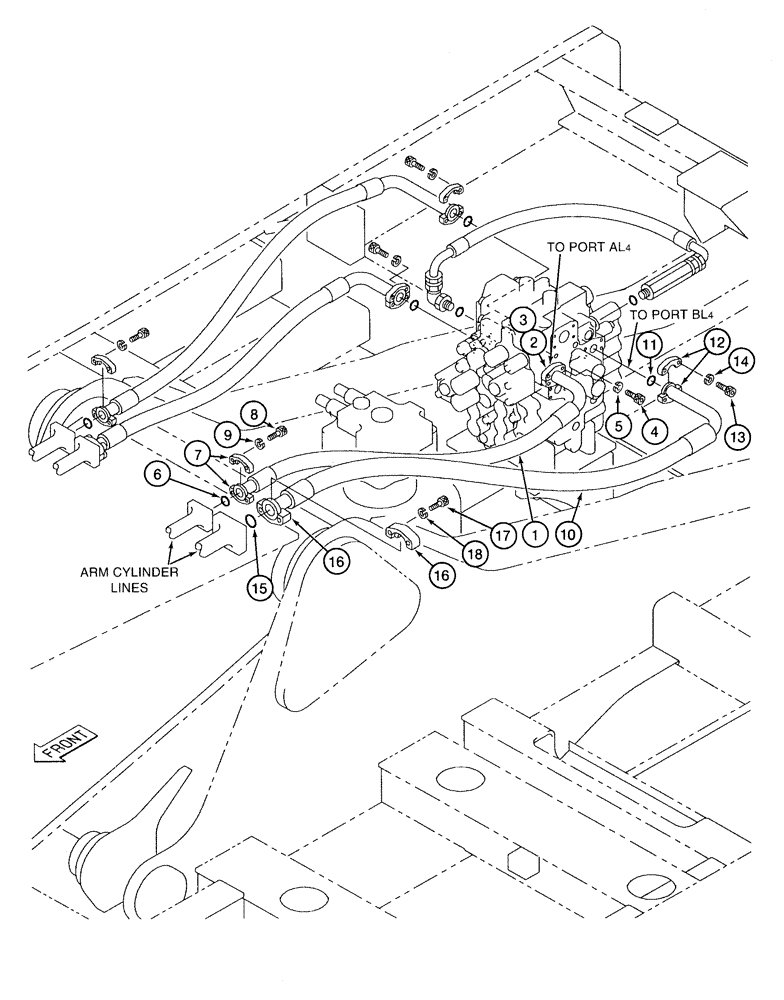

Запчасти Case 9050B (8-056) - ARM CYLINDER SUPPLY LINES, ARM-OUT LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162331A1
HYDRAULIC HOSE,25.40 mm ID x 1440.00 mm
- Arm-out line (Control valve port "AL4" to arm cylinder line) 25.40 mm ID x 1440.00 mm
1шт.
2
162246A1
O-RING
hose
1шт.
3
153459A1
FLANGE
split
2шт.
4
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9
4шт.
5
112309A1
LOCK WASHER
lock, special
4шт.
6
162246A1
O-RING
hose
1шт.
7
153459A1
FLANGE
split
2шт.
8
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
SCREW - hex socket, 10-1.5 x 45 mm, class 12.9
4шт.
9
112309A1
LOCK WASHER
lock special
4шт.
10
162333A1
HYDRAULIC HOSE,31.80 mm ID x 1560.00 mm
- Arm-out line (Control valve port "BL4" to arm cylinder line), In 31.80 mm ID x 1560.00 mm
1шт.
11
162246A1
O-RING
hose, arm in lines
1шт.
12
153459A1
FLANGE
split, arm in lines
2шт.
13
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9, Arm in lines
4шт.
14
112309A1
LOCK WASHER
lock, special, arm in lines
4шт.
15
153626A1
O-RING
hose, arm in lines
1шт.
16
150124A1
FLANGE
split, arm in lines
2шт.
17
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9, arm in lines
4шт.
18
150336A1
SPRING WASHER
lock 14 mm, arm in lines
4шт.
Выбрано товаров: 18
